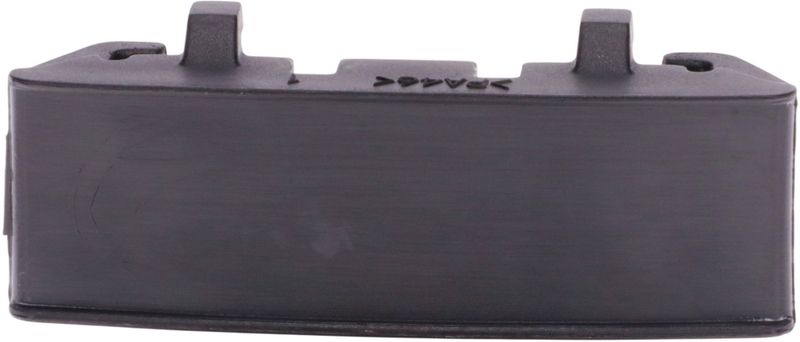

Cloyes 9-6248 Engine Timing Chain Guide - Upper
| Brand | Cloyes 9-6248 |
|---|---|
| Position | Upper |
| Product line | Engine Timing Chain Guide |
| Fits | Ford · 12 vehicles |
OE performance target. Built to meet or exceed OEM expectations for timing system service.
Quiet operation. Modern materials and design help reduce timing chain noise.
Timing system focus. Cloyes has specialized in automotive timing components since 1921.
Cross-references ML3Z6K297A for the same application. See all 1.
Overview
Cloyes Engine Timing Chain Guide 9-6248 is a timing system component built to keep the chain properly tracked between the crankshaft and camshaft. It is a direct fit for select Ford applications and is engineered for quiet operation and durable service.
Key Features
- Timing chain guide for maintaining chain alignment and timing control.
- Engineered with modern material and design technology for dependable operation.
- Built to meet or exceed OEM performance expectations.
- Part number 9-6248 for accurate ordering and service matching.
- Fits 2018-2023 Ford F-150, Upper.
- Fits 2018-2023 Ford Mustang, Upper.
Detailed Description
The Cloyes Engine Timing Chain Guide 9-6248 is part of the engine valve train timing system and serves as the track that helps guide the timing chain as it links the crankshaft and camshaft. Proper chain guidance is important for maintaining timing integrity, reducing noise, and supporting consistent engine operation. This part number 9-6248 is listed for 2018-2023 Ford F-150 and 2018-2023 Ford Mustang upper applications.
Cloyes has supplied timing system components since 1921, and the Engine Timing Chain Guide line reflects that focus on timing accuracy and material development. For timing service, Cloyes recommends replacing the chain, tensioners, guides, and sprockets together to restore total system integrity. This part cross-references Ford ML3Z6K297A for the same application.
Common Uses
- Correcting timing chain tracking concerns.
- Addressing chain noise from worn guide surfaces.
- Restoring timing system alignment during engine service.
- Replacing a damaged or deteriorated guide in the timing assembly.
Installation Notes
Install during timing system service and verify chain alignment, tensioner condition, and sprocket wear before reassembly. Follow factory service procedures for the specific engine application and confirm fitment by part number 9-6248 before installation.
Quality Assurance
Cloyes backs this timing component with an industry-leading warranty and technical support.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | Ford | F-150 | 5.0L | V8 | Upper | Engine Timing Chain Guide |
| 2023 | Ford | Mustang | 5.0L | V8 | Upper | Engine Timing Chain Guide |
| 2022 | Ford | F-150 | 5.0L | V8 | Upper | Engine Timing Chain Guide |
| 2022 | Ford | Mustang | 5.0L | V8 | Upper | Engine Timing Chain Guide |
| 2021 | Ford | F-150 | 5.0L | V8 | Upper | Engine Timing Chain Guide |
| 2021 | Ford | Mustang | 5.0L | V8 | Upper | Engine Timing Chain Guide |
| 2020 | Ford | F-150 | 5.0L | V8 | Upper | Engine Timing Chain Guide |
| 2020 | Ford | Mustang | 5.0L | V8 | Upper | Engine Timing Chain Guide |
| 2019 | Ford | F-150 | 5.0L | V8 | Upper | Engine Timing Chain Guide |
| 2019 | Ford | Mustang | 5.0L | V8 | Upper | Engine Timing Chain Guide |
| 2018 | Ford | F-150 | 5.0L | V8 | Upper | Engine Timing Chain Guide |
| 2018 | Ford | Mustang | 5.0L | V8 | Upper | Engine Timing Chain Guide |
