Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

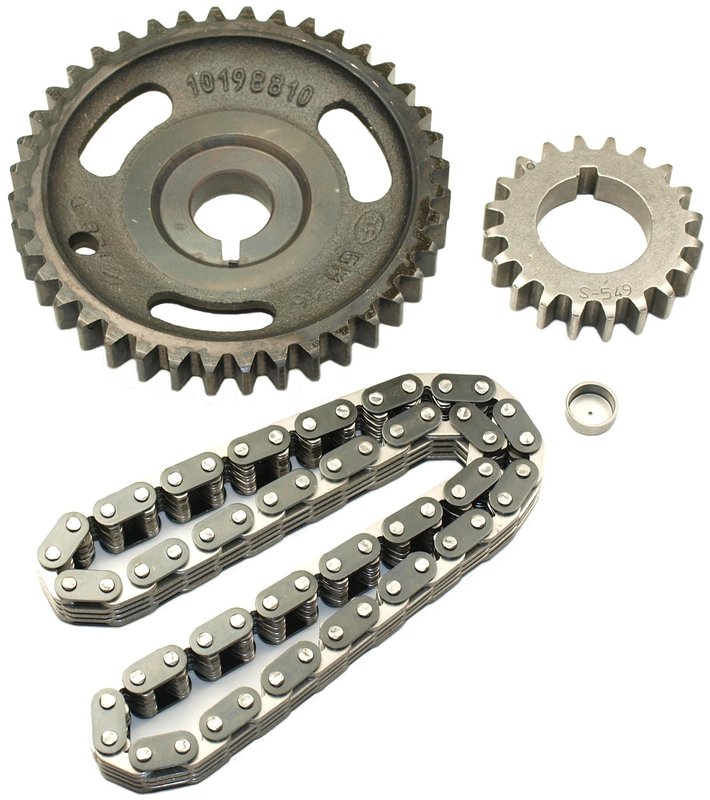

Cloyes C-3019MS Engine Timing Set
| Brand | Cloyes C-3019MS |
|---|---|
| Camshaft Sprocket Material | Metal |
| Chain Included | Yes |
| Keyway Adjustable | No |
| Timing Chain Type | Inverted Tooth |
| Fits | Chevrolet, GMC, Pontiac, Isuzu, Buick, and Oldsmobile · 51 vehicles |
OE-level performance. Meets or exceeds OEM performance requirements for dependable timing operation.
CAD-designed construction. Built with advanced materials and extensively tested for durability.
Inverted tooth chain. Helps deliver quiet, maintenance-free timing system operation.
Cross-references 103019MS for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Cloyes C-3019MS Timing Set for GM 2.2L Applications
The Cloyes C-3019MS engine timing set is built for select Chevrolet, GMC, Buick, Pontiac, Oldsmobile, and Isuzu applications that use an inverted tooth timing chain. It includes matched timing components to support accurate camshaft and crankshaft synchronization, with a tensioner elimination kit for the listed applications.
Key Features
- Inverted tooth timing chain design for smooth chain engagement
- Metal camshaft sprocket construction
- Chain included for a complete timing service
- Keyway adjustable: No
- Matched timing set configuration for applications that eliminate the tensioner
- Includes camshaft sprocket, crankshaft sprocket, chain, oil galley plug, and tensioner elimination kit
Product Details
Cloyes C-3019MS is an engine timing set engineered for precise valve timing in select GM and Isuzu 2.2L applications. Cloyes designs timing drive components using CAD-based development and advanced materials, then tests parts for function and durability to help maintain consistent timing performance. This set is intended for vehicles such as the Chevrolet S10, GMC Sonoma, and Chevrolet Cavalier, where matched timing components are required for proper chain drive operation.
This part cross-references 103019MS for the same application.
Common Problems This Timing Set Can Address
- Excessive timing chain stretch
- Noise from worn timing drive components
- Loss of camshaft-to-crankshaft timing accuracy
- Wear in sprockets or chain guides on the timing drive
- Service needs on engines using a tensioner elimination setup
Installation Notes and Fitment
Compatible With 1994-2003 Chevrolet S10, N/A. Compatible With 1994-2003 GMC Sonoma, N/A. Compatible With 1994-2002 Chevrolet Cavalier, N/A. Compatible With 1995-2002 Pontiac Sunfire, N/A. Compatible With 1996-2000 Isuzu Hombre, N/A. Compatible With 1994-1996 Buick Century, N/A. Compatible With 1994-1996 Chevrolet Corsica, N/A. Compatible With 1994-1996 Oldsmobile Cutlass Ciera, N/A.
Verify engine configuration and timing cover details before installation. Follow factory timing marks and service procedures carefully, and confirm that the tensioner elimination kit matches the vehicle’s original timing system layout.
Quality Assurance
Cloyes manufactures timing system components to meet or exceed OEM performance requirements and subjects parts to functional and durability testing before release.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2003 | Chevrolet | S10 | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 2003 | GMC | Sonoma | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 2002 | Chevrolet | Cavalier | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 2002 | Chevrolet | S10 | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 2002 | GMC | Sonoma | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 2002 | Pontiac | Sunfire | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 2001 | Chevrolet | Cavalier | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 2001 | Chevrolet | S10 | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 2001 | GMC | Sonoma | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 2001 | Pontiac | Sunfire | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 2000 | Chevrolet | Cavalier | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 2000 | Chevrolet | S10 | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 2000 | GMC | Sonoma | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 2000 | Isuzu | Hombre | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 2000 | Pontiac | Sunfire | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1999 | Chevrolet | Cavalier | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1999 | Chevrolet | S10 | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1999 | GMC | Sonoma | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1999 | Isuzu | Hombre | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1999 | Pontiac | Sunfire | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1998 | Chevrolet | Cavalier | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1998 | Chevrolet | S10 | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1998 | GMC | Sonoma | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1998 | Isuzu | Hombre | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1998 | Pontiac | Sunfire | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1997 | Chevrolet | Cavalier | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1997 | Chevrolet | S10 | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1997 | GMC | Sonoma | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1997 | Isuzu | Hombre | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1997 | Pontiac | Sunfire | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1996 | Buick | Century | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1996 | Chevrolet | Cavalier | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1996 | Chevrolet | Corsica | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1996 | Chevrolet | S10 | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1996 | GMC | Sonoma | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1996 | Isuzu | Hombre | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1996 | Oldsmobile | Cutlass Ciera | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1996 | Pontiac | Sunfire | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1995 | Buick | Century | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1995 | Chevrolet | Cavalier | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1995 | Chevrolet | Corsica | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1995 | Chevrolet | S10 | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1995 | GMC | Sonoma | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1995 | Oldsmobile | Cutlass Ciera | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1995 | Pontiac | Sunfire | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1994 | Buick | Century | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1994 | Chevrolet | Cavalier | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1994 | Chevrolet | Corsica | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1994 | Chevrolet | S10 | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1994 | GMC | Sonoma | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| 1994 | Oldsmobile | Cutlass Ciera | 2.2L | L4 | N/A | Includes: Camshaft Sprocket, Crankshaft Sprocket, Chain, Oil Galley Plug; Tensioner Elimination Kit; Matched Timing Set to Eliminate the Tensioner. |
| No rows match your filter. | ||||||
