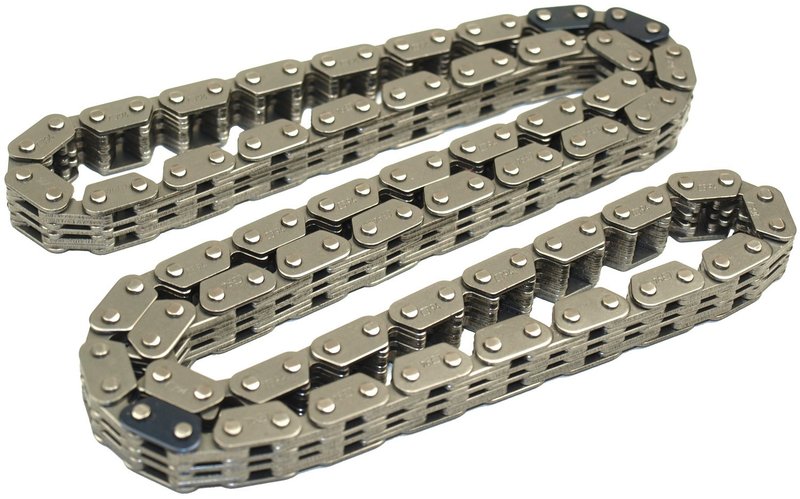

Cloyes C394 Engine Timing Chain - Upper

Overview of Cloyes Engine Timing Chain C394

The Cloyes C394 engine timing chain is engineered for precise valve train operation in select Dodge, Jeep, and Mitsubishi vehicles. Designed with durable steel and an inverted tooth chain type, this timing chain ensures reliable performance for specific engine applications.

• Constructed from high-strength steel for durability
• Inverted tooth chain type for smooth and accurate timing
• Single row chain with 106 links and 9 plates
• Chain pitch of 8.2 mm and width of 0.52 inches
• Overall length of 16 3/4 inches with 3 timing marks
• Specific fitment for Dodge Ram 1500, Jeep Grand Cherokee, Commander, Dakota, Durango, and Mitsubishi Raider

Detailed Product Description

The Cloyes C394 timing chain is a single-row, inverted tooth chain designed to maintain precise synchronization between the crankshaft and camshaft. Its steel construction provides resistance to wear and elongation, critical for maintaining engine timing accuracy over time. The chain features 106 links and 9 plates, with a chain pitch of 8.2 mm and a width of 0.52 inches, ensuring compatibility with the valve train components of specific Dodge, Jeep, and Mitsubishi models. The inclusion of three timing marks facilitates accurate installation and alignment during engine assembly or repair.

Compatible Vehicles and Applications

This timing chain is specifically engineered for use in the following vehicles:

• Dodge Ram 1500
• Dodge Dakota
• Dodge Durango
• Jeep Grand Cherokee
• Jeep Commander
• Mitsubishi Raider

Its precise fitment ensures optimal engine timing and performance in these models, making it a suitable replacement part for maintenance or repair.

Common Issues Addressed by Cloyes C394 Timing Chain

• Elongated or stretched timing chain causing engine timing drift
• Excessive chain noise or rattling during engine operation
• Engine misfires or rough idling due to timing chain wear
• Failed timing chain tensioners or guides leading to chain slack
• Preventative maintenance to avoid catastrophic engine damage

Installation Notes and Tips

• Ensure engine is cool and battery disconnected before installation
• Use the three timing marks on the chain for precise alignment
• Inspect related components such as tensioners and guides for wear
• Follow manufacturer torque specifications for all fasteners
• Verify timing alignment before engine start to prevent damage

Quality Assurance and Warranty

Cloyes timing chains are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The C394 part number undergoes rigorous quality control to maintain consistent standards. Warranty coverage details should be confirmed with the parts provider or vehicle manufacturer, as they may vary by application and region.
