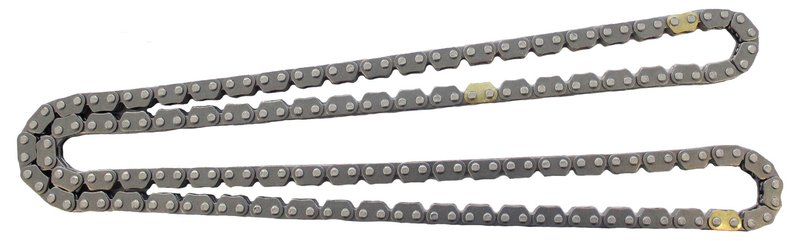

Cloyes C515 Engine Timing Chain

Brand	Cloyes C515
Timing Marks	Yes
Chain Length	21.875
Chain Length	555.625
Chain Material	Steel
Chain Type	Inverted tooth
Chain Width	0.4235
Chain Width	10.74
Row Quantity	1
Chain Pitch	0.25
Chain Pitch	6.35
Timing Mark Quantity	3
Link Quantity	176
Product line	Timing Chain
Fits	Hyundai and Kia · 34 vehicles

OE-level performance. Built for precise valve timing and quiet operation.

Steel inverted-tooth chain. Heat-treated and pre-stressed for durability.

Timing marks included. Three marks help with accurate chain setup.

Cross-references Anchor 9515 and 24321 2E010 for the same application. See all 2.

$71.50Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Engine Timing Chain options

Cloyes C515 Timing Chain for Kia and Hyundai

The Cloyes C515 engine timing chain is built to keep crankshaft and camshaft rotation synchronized for accurate valve timing and stable engine operation. It is a steel, inverted-tooth timing chain with timing marks and OE-level fitment for select Kia and Hyundai applications.

Key Features

Brand: Cloyes Timing Chain
Part number: C515
Steel inverted-tooth chain design
Timing marks included for alignment during service
Chain length: 21.875 in. / 555.625 mm
Chain width: 0.4235 in. / 10.74 mm
Chain pitch: 0.25 in. / 6.35 mm
Single-row construction
176 links with 3 timing marks

Product Details

Cloyes has focused on timing systems since 1921, and the C515 reflects that experience with a pre-stressed, heat-treated chain engineered for accurate tooth engagement and consistent operation. This timing chain is used in engine timing service where precise synchronization is required, including applications such as the 2014-2020 Hyundai Elantra, 2017-2023 Kia Sportage, and 2017-2022 Kia Forte. The C515 is also listed for the 2020-2022 Kia Soul, 2018-2021 Hyundai Kona, 2019-2021 Hyundai Veloster, 2021 Kia Seltos, 2016-2017 Hyundai Tucson, and 2015 Hyundai ix35.

This part cross-references Anchor 9515 for the same application.

Common Issues This Part Addresses

Excessive timing chain stretch
Incorrect camshaft and crankshaft synchronization
Rattling or noisy timing chain operation
Timing mark alignment concerns during service
Loss of valve timing accuracy from worn chain components

Installation Notes and Tips

Verify engine application by year, make, model, and timing system before installation.
Use the timing marks to align the chain during assembly.
Cloyes recommends replacing the chain, tensioners, guides, and sprockets together to maintain timing system integrity.
Inspect related timing components for wear before completing service.

Quality Assurance

Cloyes manufactures timing chains from premium materials and applies heat treatment and pre-stressing for consistent performance. The brand backs its timing system products with industry-leading technical support and warranty coverage.

This part fits 34 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Liters	Cylinders	Notes
2023	Kia	Sportage	2.0L	L4	Timing Chain
2022	Kia	Forte	2.0L	L4	Timing Chain
2022	Kia	Soul	2.0L	L4	Timing Chain
2022	Kia	Sportage	2.0L	L4	Timing Chain
2021	Hyundai	Kona	2.0L	L4	Timing Chain
2021	Hyundai	Veloster	2.0L	L4	Timing Chain
2021	Kia	Forte	2.0L	L4	Timing Chain
2021	Kia	Seltos	2.0L	L4	Timing Chain
2021	Kia	Soul	2.0L	L4	Timing Chain
2021	Kia	Sportage	2.0L	L4	Timing Chain
2020	Hyundai	Elantra	2.0L	L4	Timing Chain
2020	Hyundai	Kona	2.0L	L4	Timing Chain
2020	Hyundai	Veloster	2.0L	L4	Timing Chain
2020	Kia	Forte	2.0L	L4	Timing Chain
2020	Kia	Soul	2.0L	L4	Timing Chain
2020	Kia	Sportage	2.0L	L4	Timing Chain
2019	Hyundai	Elantra	2.0L	L4	Timing Chain
2019	Hyundai	Kona	2.0L	L4	Timing Chain
2019	Hyundai	Veloster	2.0L	L4	Timing Chain
2019	Kia	Forte	2.0L	L4	Timing Chain
2019	Kia	Sportage	2.0L	L4	Timing Chain
2018	Hyundai	Elantra	2.0L	L4	Timing Chain
2018	Hyundai	Kona	2.0L	L4	Timing Chain
2018	Kia	Forte	2.0L	L4	Timing Chain
2018	Kia	Sportage	2.0L	L4	Timing Chain
2017	Hyundai	Elantra	2.0L	L4	Timing Chain
2017	Hyundai	Tucson	2.0L	L4	Timing Chain
2017	Kia	Forte	2.0L	L4	Timing Chain
2017	Kia	Sportage	2.0L	L4	Timing Chain
2016	Hyundai	Elantra	1.8L	L4	Timing Chain
2016	Hyundai	Tucson	2.0L	L4	Timing Chain
2015	Hyundai	Elantra	1.8L	L4	Timing Chain
2015	Hyundai	ix35	2.0L	L4	Timing Chain
2014	Hyundai	Elantra	1.8L	L4	Timing Chain
No rows match your filter.

Directly replaces or cross-references 2 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Anchor — 951524321 2E010
