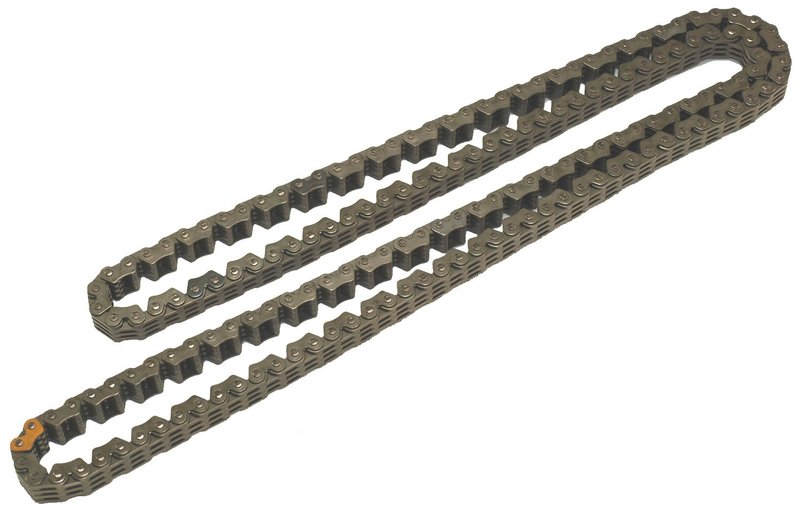

Cloyes C723F Engine Timing Chain - Center

Timing Chain for Nissan Engine Timing

The Cloyes C723F timing chain is a specific-fit engine timing chain built for Nissan applications that require accurate crankshaft and camshaft synchronization. It is engineered with precision pitch control and steel construction to support proper chain-to-sprocket tooth engagement in timing drive systems.

Part of the Cloyes Timing Chain line, this component is designed for stock replacement use and is manufactured from premium materials with CAD-based development and testing for fit, function, and durability. For timing service, Cloyes recommends replacing the chain tensioner, sprockets, and guides at the same time to help maintain system stability and accurate valve timing.

Key Features

• Steel inverted tooth timing chain for engine valvetrain synchronization
• Specific fit application for select Nissan engines
• Precision pitch control for proper sprocket tooth fitment
• Single-row design with 6.35 mm chain pitch
• Overall length: 19 7/8 in.
• Chain width: 0.46 in.
• 162 links with 3 timing marks
• Interchange reference: 9723F

Detailed Description

Cloyes C723F is an engine timing chain for Nissan Sentra, Nissan NV200, Nissan Cube, Nissan Juke, and Nissan Versa applications listed in the fitment data. It is built as a direct replacement timing chain for engines that rely on precise camshaft and crankshaft timing, including Nissan Sentra timing chain replacement and Nissan NV200 engine timing chain service. The inverted tooth design and steel construction support consistent engagement in the timing drive system, while the specific-fit design helps match the intended application.

This part cross-references 9723F for the same application. For Nissan Juke, Nissan Versa, and other listed models, verify engine-specific catalog details before installation to confirm the correct timing drive components.

Common Problems This Part Can Address

• Excessive timing chain stretch
• Noise from a worn timing drive system
• Incorrect camshaft and crankshaft synchronization
• Timing-related drivability concerns
• Service replacement for worn OE timing chain components

Installation Notes and Tips

Before installation, confirm engine application using the vehicle catalog and inspect the full timing system. Cloyes recommends replacing the chain tensioner, sprockets, and guides when servicing the chain to help restore timing drive stability. On listed Nissan applications such as the Sentra, NV200, Cube, Juke, and Versa, follow factory timing procedures and align the timing marks carefully during assembly.

Quality Assurance

Cloyes timing drive components are CAD designed, manufactured with premium materials, and tested for function, fitment, and durability. The C723F is built to meet the demands of engine timing service with controlled pitch accuracy and application-specific fitment.
