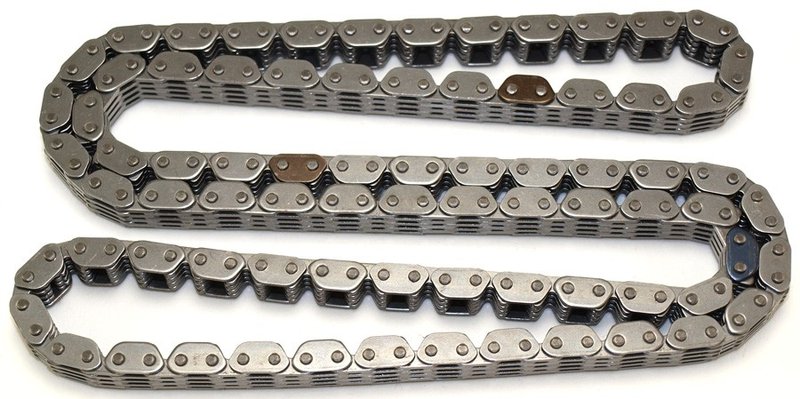

Cloyes C724F Engine Timing Chain - Center

Cloyes C724F Timing Chain for Nissan Sentra

The Cloyes C724F engine timing chain is a specific-fit replacement for select 2000-2006 Nissan Sentra applications with center timing chain placement. Built from steel with an inverted tooth design, it is engineered for precise crankshaft and camshaft synchronization to maintain accurate valve timing.

For Nissan Sentra timing chain replacement, this part number C724F is a direct-fit option for owners servicing the engine valvetrain on 2000-2006 Nissan Sentra models. Cloyes designs timing drive components with controlled pitch and application-specific fitment to help maintain proper chain-to-sprocket engagement.

Key Features

• Steel construction for timing drive durability
• Inverted tooth chain design for smooth sprocket engagement
• Specific fit for select Nissan Sentra applications
• Center position timing chain application
• 154-link, 6.35 mm pitch design with 3 timing marks
• Overall length: 19 3/8 in.; width: 0.48 in.

Detailed Description

Cloyes C724F is an engine timing chain designed to synchronize crankshaft and camshaft rotation so valve events occur at the correct time. It is built for 2000-2006 Nissan Sentra applications and uses a single-row inverted tooth chain profile with precision pitch control for accurate tooth fitment. The chain is CAD designed and manufactured using premium materials, then tested for function, fitment, and durability.

This part cross-references Genuine 130288U300 for the same application. It also cross-references 9724F and 130285M000 for related fitment coverage. If you are searching for a Nissan Sentra engine timing chain replacement, Cloyes C724F is the part number to compare against your existing timing drive setup.

What It Helps Address

• Timing chain stretch or wear
• Noise from a worn timing drive system
• Incorrect camshaft and crankshaft synchronization
• Valve timing irregularities that affect engine operation
• Service needs during timing system repair on a Nissan Sentra

Installation Notes and Tips

Fits 2000-2006 Nissan Sentra, center. Cloyes recommends replacing the chain tensioner(s), sprocket(s), and guide(s) when servicing the chain because these components affect timing stability and system accuracy. The fitment notes also reference engine camshaft thrust button use for improved replacement performance on this application.

Quality Assurance

Cloyes manufactures timing drive components with application-specific engineering, precision measurement, and durability testing to support proper fit and function. Refer to the online catalog for detailed vehicle-specific application information before installation.
