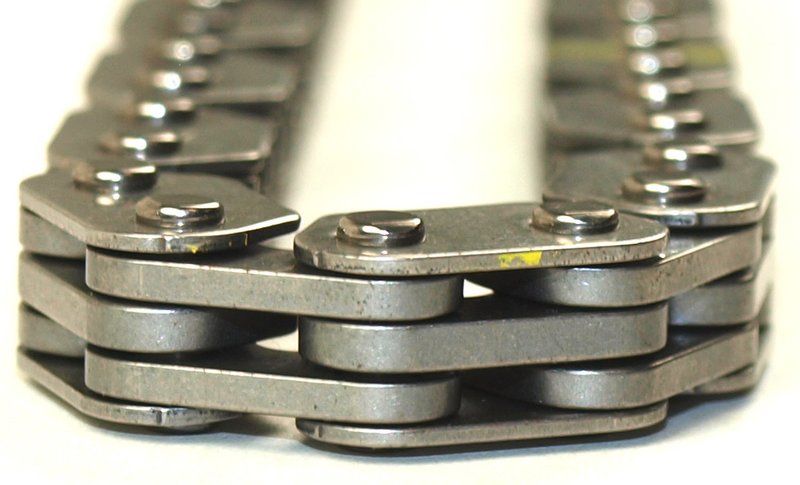

Cloyes C755F Engine Timing Chain - Upper
OE Quality 60-Day Returns
Cloyes

Cloyes C755F Engine Timing Chain - Upper

Brand Cloyes C755F
Position Upper
Material Steel
Chain Type Inverted tooth
Chain Row Quantity 2x3
Color Gray
Inside Diameter 0.275"
Width 1.00"
Height 0.41"
Universal Or Specific Fit Specific
Chain Pitch 9.525mm.
Overall Length 8.50"
Timing Mark Quantity 2.0
Link Quantity 44.0
Plates 5.0
Fits Chrysler and Dodge · 8 vehicles

Specific fit. Engineered for accurate timing chain replacement.

Precision pitch control. Promotes proper tooth fitment and stable timing.

Steel construction. Built with premium materials for durability.

Cross-references 9755F, 4663674AF and 04792058 for the same application. See all 6.

$32.91Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $32.91
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Chain options

Cloyes C755F Engine Timing Chain

The Cloyes C755F is a specific-fit engine timing chain for upper secondary timing applications on select Chrysler and Dodge vehicles. Built from steel with an inverted tooth design, it is engineered for precise crankshaft-to-camshaft synchronization and stable valve timing.

Fits 2009-2010 Chrysler 300, Upper. Fits 2009-2010 Chrysler Sebring, Upper. Fits 2009-2010 Dodge Avenger, Upper. Fits 2009-2010 Dodge Charger, Upper.

  • Steel construction for timing drive durability
  • Inverted tooth chain type for controlled engagement
  • Specific fit for application-matched installation
  • Precision pitch control for proper sprocket tooth fitment
  • Designed for upper secondary OE replacement timing applications
  • Chain pitch: 9.525 mm
  • Timing mark quantity: 2
  • Link quantity: 44

Fitment and Application Details

This Cloyes timing chain is used in the engine valvetrain to keep camshaft and crankshaft rotation synchronized so valve events occur at the correct time. It is a direct replacement choice for 2009-2010 Chrysler 300, 2009-2010 Chrysler Sebring, 2009-2010 Dodge Avenger, and 2009-2010 Dodge Charger upper secondary timing chain applications. The C755F part number is also commonly searched as Cloyes C755F for these vehicle-specific repairs.

This part cross-references 9755F and 4663674AF for the same application.

What It Helps Address

  • Timing chain stretch that can affect cam timing accuracy
  • Noise from a worn upper secondary timing chain
  • Valve timing irregularities caused by chain wear
  • Service replacement for a damaged or fatigued OE timing chain
  • Restoration of proper synchronization in the timing drive system

Installation Notes and Tips

Replace the chain tensioner, sprocket(s), and guide(s) at the same time as the chain to maintain system stability and accurate timing. Verify application details in the catalog before installation, and confirm the upper secondary timing path matches the vehicle service procedure. The C755F is a Cloyes timing chain engineered for precise fitment, so correct alignment during installation is important.

Quality Assurance

Cloyes designs and manufactures timing drive components using CAD-based engineering and premium materials, then tests and measures parts for fit, function, and durability. The C755F reflects that process for select Chrysler and Dodge upper timing applications.

Related reading

This part fits 8 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2010Chrysler3002.7LV6UpperSecondary OE Replacement Engine Timing Chain
2010ChryslerSebring2.7LV6UpperSecondary OE Replacement Engine Timing Chain
2010DodgeAvenger2.7LV6UpperSecondary OE Replacement Engine Timing Chain
2010DodgeCharger2.7LV6UpperSecondary OE Replacement Engine Timing Chain
2009Chrysler3002.7LV6UpperSecondary OE Replacement Engine Timing Chain
2009ChryslerSebring2.7LV6UpperSecondary OE Replacement Engine Timing Chain
2009DodgeAvenger2.7LV6UpperSecondary OE Replacement Engine Timing Chain
2009DodgeCharger2.7LV6UpperSecondary OE Replacement Engine Timing Chain
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
9755F4663674AF04792058047920590479206204792063
