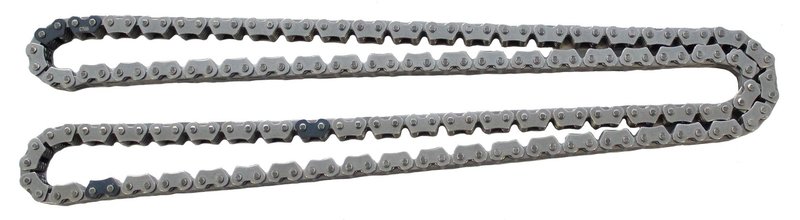

Cloyes C766 Engine Timing Chain

Cloyes C766 Timing Chain for Honda Applications

The Cloyes C766 engine timing chain is built for precise crankshaft and camshaft synchronization in select Honda engines. It uses an inverted tooth steel design with timing marks and OE-level chain geometry for accurate valve timing and consistent operation.

Compatible With 2015-2020 Honda Fit, 2018-2021 Honda Clarity, and 2019-2022 Honda Insight, this timing chain is a direct service part for timing chain replacement work. The C766 part number is also referenced in cross applications, including Anchor 9766 and 14401-5K9-004.

Key Features

• Steel inverted tooth timing chain for engine timing service
• Timing marks for alignment during installation
• 170-link chain with 0.25 in. pitch and 0.377 in. width
• Single-row design for the listed Honda applications
• Built to maintain crankshaft and camshaft synchronization
• Cloyes C766 timing chain for Honda Fit, Honda Clarity, and Honda Insight applications

Product Details

Cloyes has focused on timing systems since 1921, and the Timing Chain line is engineered for accurate chain-to-sprocket fit, quiet operation, and durable service life. The C766 is a steel inverted tooth chain with four timing marks, making it easier to align the timing system during repair. For complete timing system integrity, Cloyes recommends replacing the chain together with the tensioners, guides, and sprockets during service. This part number, C766, is used for select Honda Fit, Honda Clarity, and Honda Insight models listed below.

Common Problems This Part Addresses

• Excessive timing chain stretch
• Noise from a worn timing chain
• Incorrect camshaft and crankshaft synchronization
• Timing mark alignment issues during engine service
• Valve timing irregularities caused by chain wear

Installation Notes and Tips

Verify engine code and timing system configuration before installation. Use the timing marks on the chain to align the crankshaft and camshaft according to the service procedure for the vehicle. Inspect the tensioners, guides, and sprockets during service, since wear in those components can affect timing chain performance. Confirm fitment for 2015-2020 Honda Fit, 2018-2021 Honda Clarity, and 2019-2022 Honda Insight before ordering the C766.

Quality Assurance

Cloyes is a long-established timing system brand, and the Timing Chain line is manufactured from premium materials, heat-treated, and pre-stressed for consistent fit and performance. The C766 timing chain is backed by Cloyes technical support and an industry-leading warranty.
