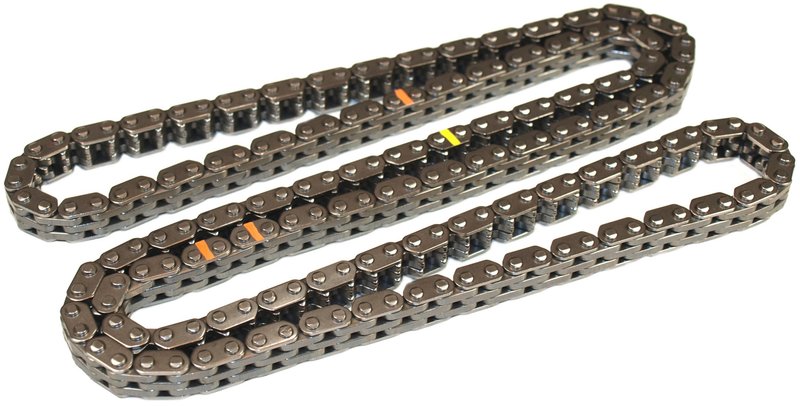

Cloyes C954 Engine Timing Chain
| Brand | Cloyes C954 |
|---|---|
| Timing Marks | Yes |
| Chain Length | 22.5 |
| Chain Length | 571.5 |
| Chain Material | Steel |
| Chain Type | Inverted tooth |
| Chain Width | 0.431 |
| Chain Width | 10.94 |
| Row Quantity | 1 |
| Chain Pitch | 0.25 |
| Chain Pitch | 6.35 |
| Timing Mark Quantity | 4 |
| Link Quantity | 182 |
| Product line | Timing Chain |
| Fits | Ford and Lincoln · 13 vehicles |
OE-level performance. Built for precise valve timing and quiet operation.
Inverted-tooth design. Helps deliver a smooth, accurate chain-to-sprocket fit.
Steel construction. Heat-treated and pre-stressed for lasting durability.
Cross-references Anchor 9954 and HL3Z6268A for the same application. See all 2.
Cloyes C954 Timing Chain for Ford and Lincoln
The Cloyes C954 is a steel inverted-tooth engine timing chain built to keep crankshaft and camshaft rotation synchronized with accurate valve timing. It is a direct-fit timing chain option for select Ford Expedition, Ford F-150, and Lincoln Navigator applications, including 2017-2021 Ford F-150 timing chain service and 2018-2021 Ford Expedition and Lincoln Navigator timing chain replacement.
Key Features
- Brand: Cloyes Timing Chain
- Part number: C954
- Steel inverted-tooth chain design
- Timing marks included for alignment
- 4 timing marks and 182 links
- Single-row chain construction
- Chain pitch: 0.25 in. / 6.35 mm
- Chain width: 0.431 in. / 10.94 mm
- Chain length: 22.5 in. / 571.5 mm
Product Details
Cloyes has focused on timing systems since 1921, and the C954 reflects that experience with premium materials, heat treatment, and pre-stressing for consistent chain-to-sprocket engagement. The inverted-tooth profile is engineered for quiet operation and stable timing performance, while the included timing marks help during service and reassembly. This part number, C954, is used in timing chain service for Ford F-150, Ford Expedition, and Lincoln Navigator models listed below.
This part cross-references Anchor 9954 and HL3Z6268A for the same application.
What It Helps Address
- Excessive timing chain stretch
- Noise from a worn or loose timing chain
- Incorrect camshaft and crankshaft synchronization
- Timing mark alignment issues during engine service
- Restoration of proper valve timing after timing system wear
Installation Notes
For timing system service, Cloyes recommends replacing the chain together with the tensioners, guides, and sprockets to maintain system integrity. Verify timing marks carefully during installation and confirm the chain-to-sprocket fit before final assembly. Always match the part to the vehicle application and engine configuration before service.
Quality Assurance
Cloyes timing chains are manufactured from premium materials and engineered for OE-level performance. The brand backs its timing system products with industry-leading technical support and warranty coverage.
Compatible Vehicles
- Fits 2018-2021 Ford Expedition, Timing Chain
- Fits 2017-2021 Ford F-150, Timing Chain
- Fits 2018-2021 Lincoln Navigator, Timing Chain
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2021 | Ford | Expedition | 3.5L | V6 | Timing Chain |
| 2021 | Ford | F-150 | 3.5L | V6 | Timing Chain |
| 2021 | Lincoln | Navigator | 3.5L | V6 | Timing Chain |
| 2020 | Ford | Expedition | 3.5L | V6 | Timing Chain |
| 2020 | Ford | F-150 | 3.5L | V6 | Timing Chain |
| 2020 | Lincoln | Navigator | 3.5L | V6 | Timing Chain |
| 2019 | Ford | Expedition | 3.5L | V6 | Timing Chain |
| 2019 | Ford | F-150 | 3.5L | V6 | Timing Chain |
| 2019 | Lincoln | Navigator | 3.5L | V6 | Timing Chain |
| 2018 | Ford | Expedition | 3.5L | V6 | Timing Chain |
| 2018 | Ford | F-150 | 3.5L | V6 | Timing Chain |
| 2018 | Lincoln | Navigator | 3.5L | V6 | Timing Chain |
| 2017 | Ford | F-150 | 3.5L | V6 | Timing Chain |
