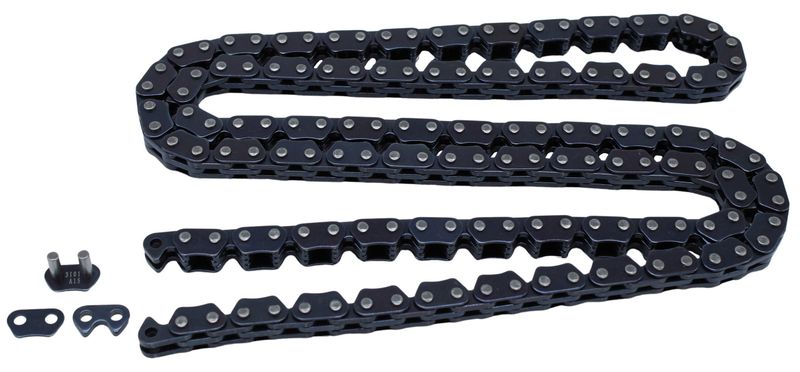

Cloyes C961 Engine Timing Chain
| Brand | Cloyes C961 |
|---|---|
| Timing Marks | Yes |
| Chain Length | 21.75 |
| Chain Length | 552.45 |
| Chain Material | Steel |
| Chain Type | Inverted tooth |
| Chain Width | 0.4125 |
| Chain Width | 10.4775 |
| Row Quantity | 1 |
| Chain Pitch | 0.315 |
| Chain Pitch | 8 |
| Timing Mark Quantity | 1 |
| Link Quantity | 140 |
| Fits | Mercedes-Benz · 42 vehicles |
OE-level performance. Built for precise timing system operation and consistent valve timing.
Steel construction. Premium chain material with heat-treated, pre-stressed engineering.
Timing marks included. Helps support accurate alignment during timing service.
Cross-references Anchor 9961, 0009933978 and 0009935002 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Engine Timing Chain for Mercedes-Benz
The Cloyes C961 engine timing chain is built for precise crankshaft and camshaft synchronization in a range of Mercedes-Benz applications. It uses an inverted tooth design with timing marks and steel construction to support accurate valve timing and consistent operation.
Key Features
- Inverted tooth timing chain design for precise engagement.
- Steel chain construction for strength and wear resistance.
- Timing marks included for accurate alignment during service.
- Pre-stressed and heat-treated construction for stable performance.
- OE-level fit and function from Cloyes timing systems.
Detailed Description
Cloyes C961 is an engine timing chain engineered to maintain correct synchronization between the crankshaft and camshaft. The chain features a single-row, inverted tooth layout with a 140-link count, 0.315 pitch, and 0.4125 width, giving technicians the dimensional consistency needed for timing service. Cloyes designs timing components for OE-style operation, and this chain is manufactured from premium steel with timing marks to support accurate installation and dependable valve timing. This part cross-references Anchor 9961 for the same application.
Compatible Mercedes-Benz applications include the C300, CLA250, E300, GLC300, and Sprinter 2500, along with additional Mercedes-Benz models listed in the fitment data. Use part number C961 when matching the timing chain to the correct engine application.
What It Helps Address
- Incorrect camshaft and crankshaft synchronization.
- Timing chain wear that affects valve timing accuracy.
- Noise from a stretched or fatigued timing chain.
- Service needs when replacing timing system components.
- Fitment matching for Mercedes-Benz timing chain replacement work.
Installation Notes
Verify engine application by part number and fitment before installation. Cloyes recommends replacing the chain together with the tensioners, guides, and sprockets during timing service to maintain system integrity. Timing marks should be aligned carefully during assembly to preserve correct engine timing.
Quality Assurance
Cloyes has supplied automotive timing systems since 1921. The C961 timing chain is manufactured with heat-treated, pre-stressed construction and is backed by Cloyes technical support and an industry-leading warranty.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2021 | Mercedes-Benz | Metris | 2.0L | L4 | — |
| 2021 | Mercedes-Benz | Sprinter 1500 | 2.0L | L4 | — |
| 2021 | Mercedes-Benz | Sprinter 2500 | 2.0L | L4 | — |
| 2020 | Mercedes-Benz | C300 | 2.0L | L4 | — |
| 2020 | Mercedes-Benz | GLC350e | 2.0L | L4 | — |
| 2020 | Mercedes-Benz | Metris | 2.0L | L4 | — |
| 2020 | Mercedes-Benz | SLC300 | 2.0L | L4 | — |
| 2020 | Mercedes-Benz | Sprinter 1500 | 2.0L | L4 | — |
| 2020 | Mercedes-Benz | Sprinter 2500 | 2.0L | L4 | — |
| 2019 | Mercedes-Benz | C300 | 2.0L | L4 | — |
| 2019 | Mercedes-Benz | CLA250 | 2.0L | L4 | — |
| 2019 | Mercedes-Benz | E300 | 2.0L | L4 | — |
| 2019 | Mercedes-Benz | GLC300 | 2.0L | L4 | — |
| 2019 | Mercedes-Benz | GLC350e | 2.0L | L4 | — |
| 2019 | Mercedes-Benz | Metris | 2.0L | L4 | — |
| 2019 | Mercedes-Benz | SLC300 | 2.0L | L4 | — |
| 2019 | Mercedes-Benz | Sprinter 1500 | 2.0L | L4 | — |
| 2019 | Mercedes-Benz | Sprinter 2500 | 2.0L | L4 | — |
| 2018 | Mercedes-Benz | C300 | 2.0L | L4 | — |
| 2018 | Mercedes-Benz | C350e | 2.0L | L4 | — |
| 2018 | Mercedes-Benz | CLA250 | 2.0L | L4 | — |
| 2018 | Mercedes-Benz | E300 | 2.0L | L4 | — |
| 2018 | Mercedes-Benz | GLC300 | 2.0L | L4 | — |
| 2018 | Mercedes-Benz | GLC350e | 2.0L | L4 | — |
| 2018 | Mercedes-Benz | Metris | 2.0L | L4 | — |
| 2018 | Mercedes-Benz | SLC300 | 2.0L | L4 | — |
| 2017 | Mercedes-Benz | C300 | 2.0L | L4 | — |
| 2017 | Mercedes-Benz | C350e | 2.0L | L4 | — |
| 2017 | Mercedes-Benz | CLA250 | 2.0L | L4 | — |
| 2017 | Mercedes-Benz | E300 | 2.0L | L4 | — |
| 2017 | Mercedes-Benz | GLC300 | 2.0L | L4 | — |
| 2017 | Mercedes-Benz | Metris | 2.0L | L4 | — |
| 2017 | Mercedes-Benz | SLC300 | 2.0L | L4 | — |
| 2016 | Mercedes-Benz | C300 | 2.0L | L4 | — |
| 2016 | Mercedes-Benz | C350e | 2.0L | L4 | — |
| 2016 | Mercedes-Benz | CLA250 | 2.0L | L4 | — |
| 2016 | Mercedes-Benz | GLC300 | 2.0L | L4 | — |
| 2016 | Mercedes-Benz | Metris | 2.0L | L4 | — |
| 2016 | Mercedes-Benz | SLK300 | 2.0L | L4 | — |
| 2015 | Mercedes-Benz | C300 | 2.0L | L4 | — |
| 2015 | Mercedes-Benz | CLA250 | 2.0L | L4 | — |
| 2014 | Mercedes-Benz | CLA250 | 2.0L | L4 | — |
