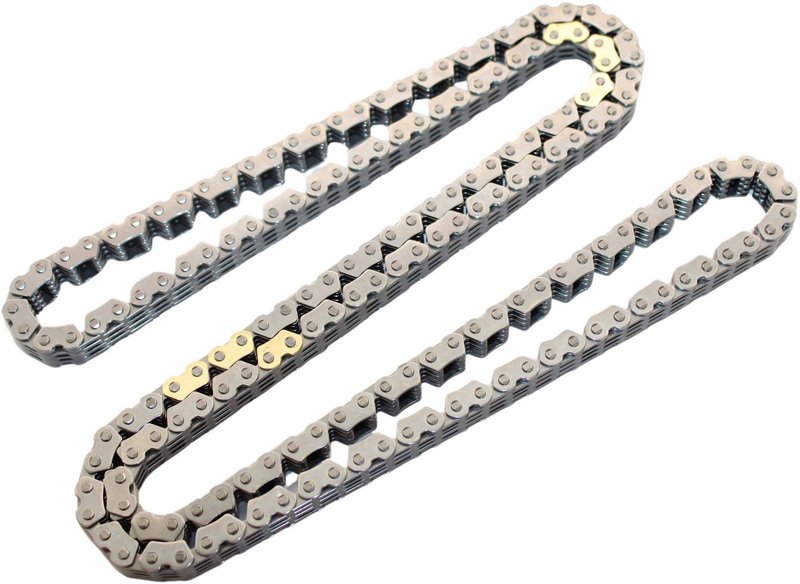

Cloyes C969 Engine Timing Chain

Cloyes C969 Engine Timing Chain

The Cloyes C969 engine timing chain is built to keep crankshaft and camshaft rotation synchronized for accurate valve timing and stable engine operation. It is a steel, inverted-tooth timing chain with timing marks, engineered for OE-level fit and quiet running in service.

Key Features

• Steel inverted-tooth chain construction for timing system durability
• Timing marks included for alignment during service
• 176 links with a 44.03 in. overall chain length
• 0.25 in. pitch and 0.43 in. width for precise sprocket engagement
• 6 timing marks for installation reference
• Single-row chain design
• Built by Cloyes, a timing systems specialist since 1921

Detailed Description

Cloyes C969 is an engine timing chain for vehicles that require precise camshaft and crankshaft synchronization. The inverted-tooth steel design is manufactured for a consistent chain-to-sprocket tooth fit, helping maintain accurate valve timing and smooth operation. This part cross-references Anchor 9969 for the same application. It fits 2016-2022 Honda Civic, 2018-2022 Honda Accord, 2019-2022 Acura RDX, and 2021-2022 Acura TLX. For shoppers searching for a Honda Civic timing chain, Honda Accord timing chain, Acura RDX timing chain, or Acura TLX timing chain, part number C969 provides a direct replacement option for the listed applications.

What It Helps Address

• Timing chain stretch that can affect camshaft and crankshaft synchronization
• Noise from a worn or out-of-spec timing chain
• Incorrect valve timing caused by chain wear
• Engine performance issues related to timing system wear
• Service replacement needs on the listed Honda and Acura applications

Installation Notes and Tips

For timing system service, Cloyes recommends replacing the chain along with the tensioners, guides, and sprockets to maintain full system integrity. Verify timing marks carefully during installation and confirm the chain is matched to the vehicle application before assembly. Part number C969 is intended for the listed fitments only.

Quality Assurance

Cloyes has specialized in automotive timing systems since 1921. The C969 timing chain is manufactured from premium materials, heat-treated, pre-stressed, and engineered for accurate fit and dependable operation in the timing system.
