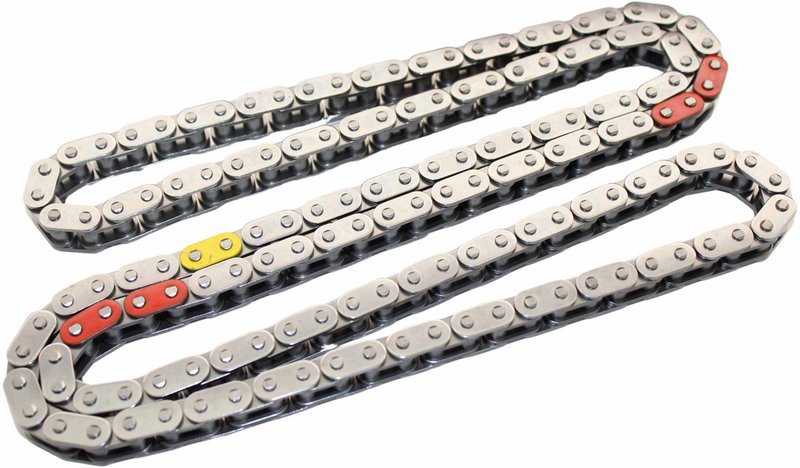

Cloyes C974 Engine Timing Chain
| Brand | Cloyes C974 |
|---|---|
| Timing Marks | Yes |
| Chain Length | 23.5 |
| Chain Length | 596.9 |
| Chain Material | Steel |
| Chain Type | Single roller |
| Chain Width | 0.4755 |
| Chain Width | 12.0777 |
| Row Quantity | 1 |
| Chain Pitch | 0.315 |
| Chain Pitch | 8 |
| Timing Mark Quantity | 5 |
| Link Quantity | 150 |
| Product line | Timing Chain |
| Fits | Mazda · 13 vehicles |
OE-level performance. Built for precise valve timing and quiet operation.
Steel single roller. Heat-treated and pre-stressed for durability.
Timing marks included. Helps synchronize crankshaft and camshaft rotation accurately.
Cross-references Anchor 9974, PY0112201 and PY0112201A for the same application. See all 5.
Cloyes C974 Timing Chain for Mazda Applications
The Cloyes C974 engine timing chain is built to keep crankshaft and camshaft rotation synchronized for accurate valve timing and stable engine operation. It is a single roller steel chain with timing marks, engineered for OE-level fit and consistent performance in service.
Compatible with select Mazda 3, Mazda 6, CX-5, and CX-9 applications, this Cloyes Timing Chain line product is designed for technicians and owners replacing a worn timing chain on higher-mileage engines. The C974 part number is also referenced in timing system service work where precise chain-to-sprocket engagement matters.
Key Features
- Brand: Cloyes Timing Chain
- Part number: C974
- Single roller steel construction
- Timing marks included for alignment
- 150 links with 5 timing marks
- Chain pitch: 8 mm
- Chain width: 12.0777 mm
- Engine timing chain for valve train service
Product Details
Cloyes has focused on timing systems since 1921, and the C974 reflects that experience with a chain built from premium materials, heat-treated, pre-stressed, and engineered for accurate tooth fit. The result is a timing chain intended to maintain synchronization between the crankshaft and camshaft while supporting quiet operation and long-term durability. For complete timing system integrity, Cloyes recommends replacing the chain together with the tensioners, guides, and sprockets during service. This part cross-references Anchor 9974 for the same application.
Fits 2014-2016 Mazda 3, N/A. Fits 2019 Mazda 3, N/A. Fits 2014-2016 Mazda CX-5, N/A. Fits 2019 Mazda CX-5, N/A. Fits 2014-2016 Mazda 6, N/A. Fits 2018 Mazda 6, N/A. Fits 2016 Mazda CX-9, N/A.
What It Helps Address
- Excessive timing chain stretch
- Rattling or noise from a worn timing chain
- Incorrect camshaft and crankshaft synchronization
- Timing-related drivability issues from chain wear
- Service replacement for Mazda timing chain maintenance
Installation Notes
Verify engine code and timing system configuration before installation. Use the timing marks to confirm alignment during assembly, and inspect the tensioners, guides, and sprockets for wear before reassembly. Because timing system wear often occurs across multiple components, replacing related parts at the same time helps restore proper chain tracking and timing accuracy.
Quality Assurance
Cloyes timing components are manufactured for precise fit and dependable operation, with technical support available from the brand. The C974 is backed by Cloyes warranty coverage.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2019 | Mazda | 3 | 2.5L | L4 | Timing Chain |
| 2019 | Mazda | CX-5 | 2.5L | L4 | Timing Chain |
| 2018 | Mazda | 6 | 2.5L | L4 | Timing Chain |
| 2016 | Mazda | 3 | 2.5L | L4 | Timing Chain |
| 2016 | Mazda | 6 | 2.5L | L4 | Timing Chain |
| 2016 | Mazda | CX-5 | 2.5L | L4 | Timing Chain |
| 2016 | Mazda | CX-9 | 2.5L | L4 | Timing Chain |
| 2015 | Mazda | 3 | 2.5L | L4 | Timing Chain |
| 2015 | Mazda | 6 | 2.5L | L4 | Timing Chain |
| 2015 | Mazda | CX-5 | 2.5L | L4 | Timing Chain |
| 2014 | Mazda | 3 | 2.5L | L4 | Timing Chain |
| 2014 | Mazda | 6 | 2.5L | L4 | Timing Chain |
| 2014 | Mazda | CX-5 | 2.5L | L4 | Timing Chain |
