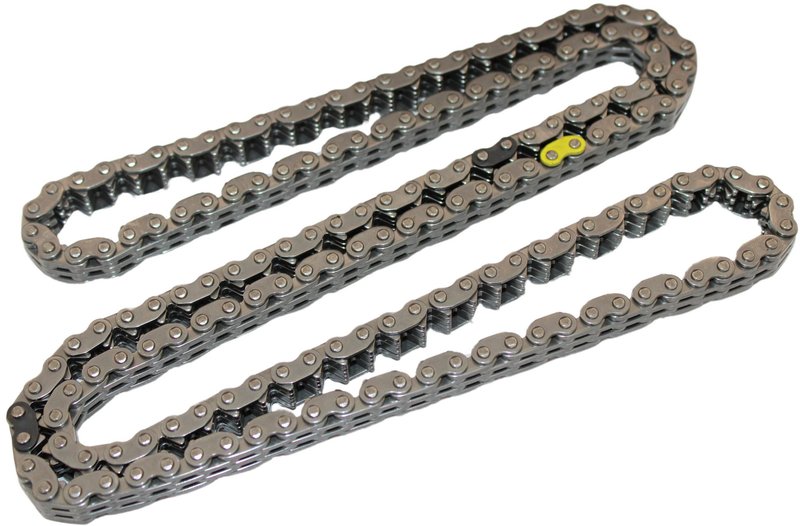

Cloyes C980 Engine Timing Chain

Cloyes C980 Timing Chain for Chevrolet Spark

The Cloyes C980 timing chain is built for precise crankshaft and camshaft synchronization in the 2016-2022 Chevrolet Spark. It uses an inverted tooth steel design with timing marks for accurate service alignment and consistent valve timing.

Key Features

• Fits 2016-2022 Chevrolet Spark, timing chain application
• Inverted tooth steel chain construction for durability
• Timing marks with 3 timing mark locations for service alignment
• Chain length: 21 in. (533.4 mm)
• Chain pitch: 0.25 in. (6.35 mm)
• Chain width: 0.48 in. (12.24 mm)
• Chain material: steel, single-row design
• 170-link chain configuration

Detailed Description

Cloyes C980 is an engine timing chain for the Chevrolet Spark that helps maintain accurate valve timing between the crankshaft and camshaft. Cloyes timing systems are engineered from premium materials and heat-treated, pre-stressed for consistent chain-to-sprocket tooth engagement and quiet operation. This timing chain is a direct-fit service part for Spark models in the 2016-2022 range and is identified by part number C980.

The Cloyes timing chain line is focused on OE-level timing system performance, with stand-alone chains available for targeted repairs and complete kits available for broader timing service. For a full timing system refresh, Cloyes recommends replacing the chain together with the tensioners, guides, and sprockets during service. This part cross-references Anchor 9980 and 12645393 for the same application.

Common Repair Symptoms

• Rattling or chain noise from the timing cover area
• Rough idle or inconsistent engine timing
• Check engine light related to cam/crank correlation
• Hard starting caused by timing chain wear
• Loss of performance from stretched or worn timing components

Installation Notes

Verify engine timing marks before removal and installation, and confirm camshaft and crankshaft alignment during assembly. Inspect the tensioners, guides, and sprockets for wear before reusing any timing components. This timing chain is listed for the Chevrolet Spark timing chain application only, so confirm vehicle year and engine configuration before service.

Quality Assurance

Cloyes has specialized in automotive timing systems since 1921 and backs its timing components with technical support and an industry-leading warranty.
