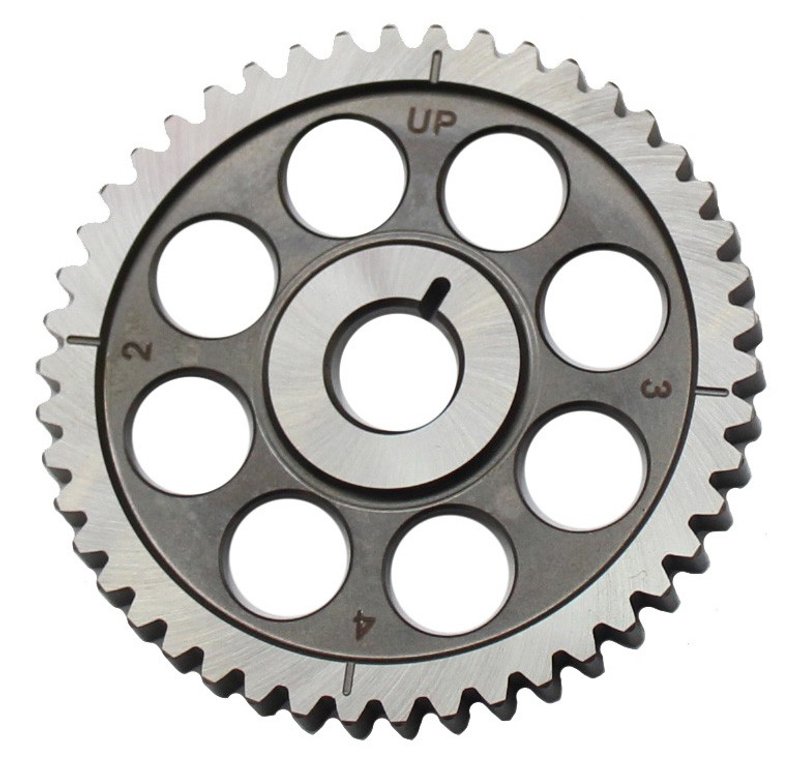

Cloyes S1066 Engine Timing Camshaft Sprocket - Right

Brand	Cloyes S1066
Position	Right
Material	Metal
Inside Diameter	0.63
Inside Diameter	16.002
Tooth Quantity	46
Chain Row Quantity	1
Chain Type	Inverted tooth
Keyway Notch	Yes
Mounting Hole Diameter (uom:in)	0.63
Mounting Hole Diameter (uom:mm)	16.002
Mounting Hole Quantity	1
Outside Diameter (uom:in)	3.57
Outside Diameter (uom:mm)	90.678
Timing Mark Quantity	1
Tooth Width (uom:in)	0.2963
Tooth Width (uom:mm)	7.526
Width (uom:in)	0.29
Width (uom:mm)	7.366
Product line	Timing Camshaft Sprocket
Fits	Honda · 14 vehicles

Precision-tooled design. Exact tooth geometry helps deliver accurate timing and reliable operation.

Metal construction. Built from metal for durable performance in the timing system.

Single-row inverted tooth. Works with a chain-driven setup for precise engine timing.

Cross-references Cloyes S1066 and 14211-5R7-A01 for the same application. See all 2.

$73.02Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Engine Timing Camshaft Sprocket options

Cloyes S1066 Timing Camshaft Sprocket

The Cloyes S1066 timing camshaft sprocket is a metal engine timing component built for precise chain engagement and stable valve timing. It is engineered for select Honda applications, including Honda Insight, Honda Clarity, and Honda Fit models, where accurate camshaft timing is critical to engine performance.

Key Features

Metal construction for engine timing service
46-tooth inverted tooth chain profile
Single-row chain design
Keyway notch for proper indexing
One timing mark for alignment during service
Precision bore and tooth geometry for consistent fit
Outside diameter: 3.57 in. (90.678 mm)
Inside diameter / mounting hole diameter: 0.63 in. (16.002 mm)

Product Details

Cloyes timing camshaft sprockets are part of the brand’s Timing Camshaft Sprocket line, focused on accurate timing system operation and dependable fitment. The S1066 is made to work with the timing chain and related timing components to maintain correct camshaft synchronization. For timing service, Cloyes recommends replacing the chain, tensioners, guides, and sprockets together to preserve timing system integrity. This part cross-references 14211-5R7-A01 for the same application.

What This Part Helps Address

Timing chain noise caused by worn sprocket teeth
Camshaft timing errors from damaged or out-of-spec sprockets
Rough engine operation related to timing system wear
Service issues when replacing timing components on Honda Insight, Honda Clarity, or Honda Fit engines
Fitment concerns during timing chain service on 2015-2022 Honda applications

Installation Notes

Verify tooth count, chain type, bore size, and timing mark alignment before installation. This sprocket is listed for 2019-2022 Honda Insight, 2018-2021 Honda Clarity, 2019-2020 Honda Fit, and 2015-2018 Honda Fit, Right. Confirm engine timing marks and related components before reassembly, especially when servicing Honda Fit, Honda Clarity, or Honda Insight timing systems. Use the correct timing procedure for the engine and inspect the chain, guides, and tensioners for wear during service.

Quality Assurance

Cloyes has supplied automotive timing systems since 1921. The S1066 is backed by Cloyes technical support and an industry-leading warranty.

This part fits 14 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Liters	Cylinders	Position	Notes
2022	Honda	Insight	1.5L	L4	N/A	Timing Camshaft Sprocket
2021	Honda	Clarity	1.5L	L4	N/A	Timing Camshaft Sprocket
2021	Honda	Insight	1.5L	L4	N/A	Timing Camshaft Sprocket
2020	Honda	Clarity	1.5L	L4	N/A	Timing Camshaft Sprocket
2020	Honda	Fit	1.5L	L4	N/A	Timing Camshaft Sprocket
2020	Honda	Insight	1.5L	L4	N/A	Timing Camshaft Sprocket
2019	Honda	Clarity	1.5L	L4	N/A	Timing Camshaft Sprocket
2019	Honda	Fit	1.5L	L4	N/A	Timing Camshaft Sprocket
2019	Honda	Insight	1.5L	L4	N/A	Timing Camshaft Sprocket
2018	Honda	Clarity	1.5L	L4	N/A	Timing Camshaft Sprocket
2018	Honda	Fit	1.5L	L4	Right	Timing Camshaft Sprocket
2017	Honda	Fit	1.5L	L4	Right	Timing Camshaft Sprocket
2016	Honda	Fit	1.5L	L4	Right	Timing Camshaft Sprocket
2015	Honda	Fit	1.5L	L4	Right	Timing Camshaft Sprocket
No rows match your filter.

Directly replaces or cross-references 2 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Cloyes — S106614211-5R7-A01
