CloyesPart #: S1127

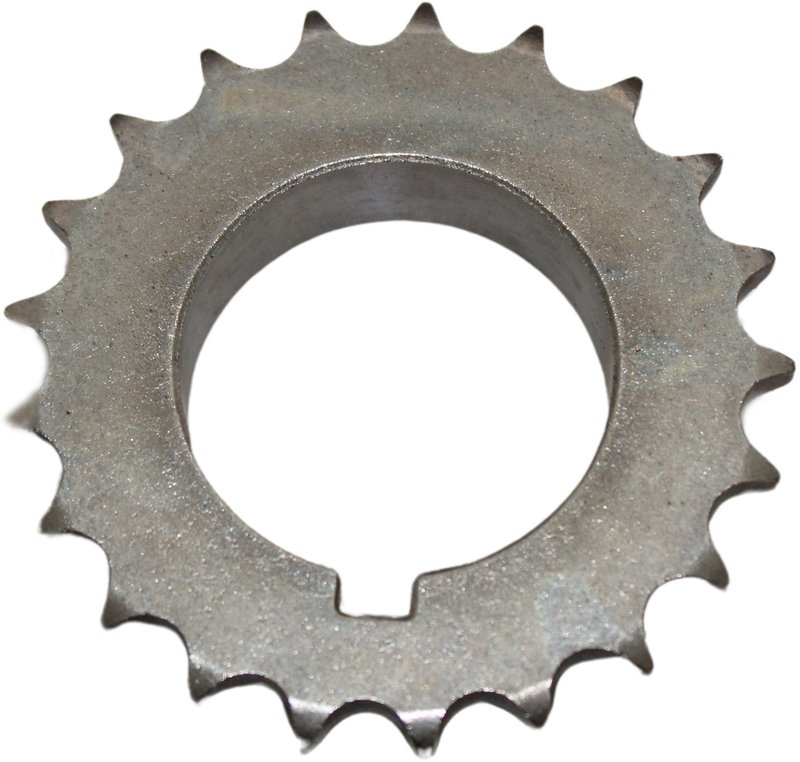

Cloyes S1127 Engine Timing Crankshaft Sprocket - Outer
27 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$31.30Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Timing Crankshaft Sprocket, Outer
Fitment: Mazda, 3, CX-3, CX-5, MX-5, and MX-5 Miata
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Engine Timing Crankshaft Sprocket options
Cloyes S1127 Engine Timing Crankshaft Sprocket - Outer
| Brand | Cloyes |
|---|---|
| Part Number | S1127 |
| Position | Timing Crankshaft Sprocket, Outer |
| Material | Metal |
| Inside Diameter | 1.1825 |
| Inside Diameter | 30.0355 |
| Outside Diameter | 2.182 |
| Outside Diameter | 55.4228 |
| Tooth Quantity | 21 |
| Chain Row Quantity | 1 |
| Chain Type | Roller |
| Keyway Notch | Yes |
| Mounting Hole Diameter (uom:in) | 1.1825 |
| Mounting Hole Diameter (uom:mm) | 30.0355 |
| Mounting Hole Quantity | 1 |
| Timing Mark Quantity | 1 |
| Tooth Width (uom:in) | 0.16 |
| Tooth Width (uom:mm) | 4.064 |
| Width (uom:in) | 0.4795 |
| Width (uom:mm) | 12.1793 |
This part fits 27 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Mazda | CX-3 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2020 | Mazda | MX-5 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2020 | Mazda | MX-5 Miata | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2019 | Mazda | CX-3 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2019 | Mazda | MX-5 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2019 | Mazda | MX-5 Miata | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2018 | Mazda | 3 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2018 | Mazda | CX-3 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2018 | Mazda | MX-5 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2018 | Mazda | MX-5 Miata | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2017 | Mazda | 3 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2017 | Mazda | CX-3 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2017 | Mazda | CX-5 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2017 | Mazda | MX-5 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2017 | Mazda | MX-5 Miata | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2016 | Mazda | 3 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2016 | Mazda | CX-3 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2016 | Mazda | CX-5 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2016 | Mazda | MX-5 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2016 | Mazda | MX-5 Miata | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2015 | Mazda | 3 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2015 | Mazda | CX-5 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2014 | Mazda | 3 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2014 | Mazda | CX-5 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2013 | Mazda | 3 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2013 | Mazda | CX-5 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
| 2012 | Mazda | 3 | 2.0L | L4 | Outer | Timing Crankshaft Sprocket |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
PE0111316PE0211316PEDD11316S1127
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
