CloyesPart #: S1129

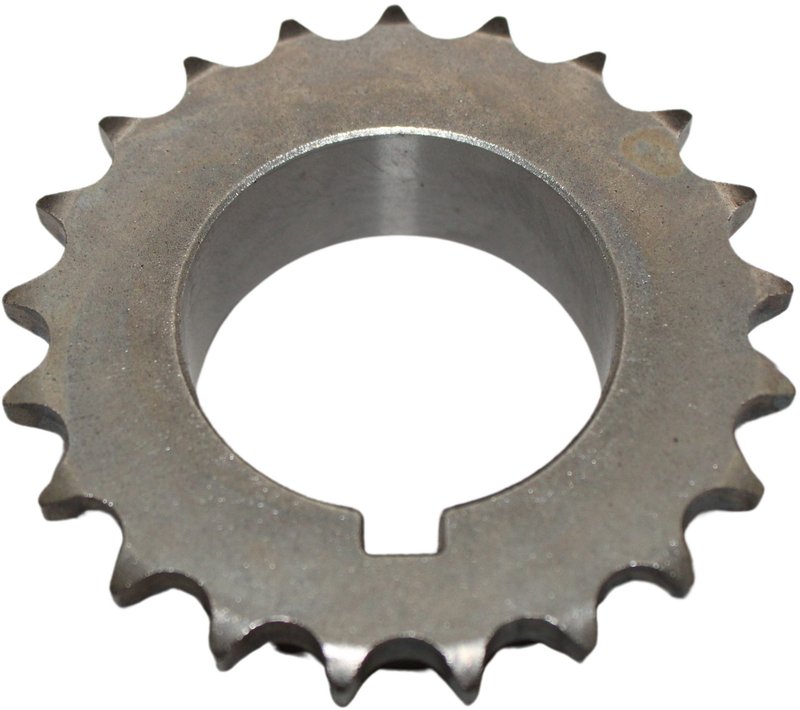

Cloyes S1129 Engine Timing Crankshaft Sprocket - Inner
13 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$24.99Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Timing Crankshaft Sprocket, Inner
Fitment: Mazda, 3, 6, CX-5, and CX-9
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Engine Timing Crankshaft Sprocket options
Cloyes S1129 Engine Timing Crankshaft Sprocket - Inner
| Brand | Cloyes |
|---|---|
| Part Number | S1129 |
| Position | Timing Crankshaft Sprocket, Inner |
| Material | Metal |
| Inside Diameter | 1.183 |
| Inside Diameter | 30.0482 |
| Outside Diameter | 2.1705 |
| Outside Diameter | 55.1307 |
| Tooth Quantity | 22 |
| Chain Row Quantity | 1 |
| Chain Type | Roller |
| Keyway Notch | Yes |
| Mounting Hole Diameter (uom:in) | 1.183 |
| Mounting Hole Diameter (uom:mm) | 30.0482 |
| Mounting Hole Quantity | 1 |
| Timing Mark Quantity | 2 |
| Tooth Width (uom:in) | 0.163 |
| Tooth Width (uom:mm) | 4.1402 |
| Width (uom:in) | 0.554 |
| Width (uom:mm) | 14.0716 |
This part fits 13 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Mazda | 3 | 2.5L | L4 | N/A | Timing Crankshaft Sprocket |
| 2019 | Mazda | CX-5 | 2.5L | L4 | N/A | Timing Crankshaft Sprocket |
| 2018 | Mazda | 6 | 2.5L | L4 | Inner | Timing Crankshaft Sprocket |
| 2016 | Mazda | 3 | 2.5L | L4 | N/A | Timing Crankshaft Sprocket |
| 2016 | Mazda | 6 | 2.5L | L4 | N/A | Timing Crankshaft Sprocket |
| 2016 | Mazda | CX-5 | 2.5L | L4 | N/A | Timing Crankshaft Sprocket |
| 2016 | Mazda | CX-9 | 2.5L | L4 | N/A | Timing Crankshaft Sprocket |
| 2015 | Mazda | 3 | 2.5L | L4 | N/A | Timing Crankshaft Sprocket |
| 2015 | Mazda | 6 | 2.5L | L4 | N/A | Timing Crankshaft Sprocket |
| 2015 | Mazda | CX-5 | 2.5L | L4 | N/A | Timing Crankshaft Sprocket |
| 2014 | Mazda | 3 | 2.5L | L4 | N/A | Timing Crankshaft Sprocket |
| 2014 | Mazda | 6 | 2.5L | L4 | N/A | Timing Crankshaft Sprocket |
| 2014 | Mazda | CX-5 | 2.5L | L4 | N/A | Timing Crankshaft Sprocket |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
PX1311316PY0111316APY0111316CS1129
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
