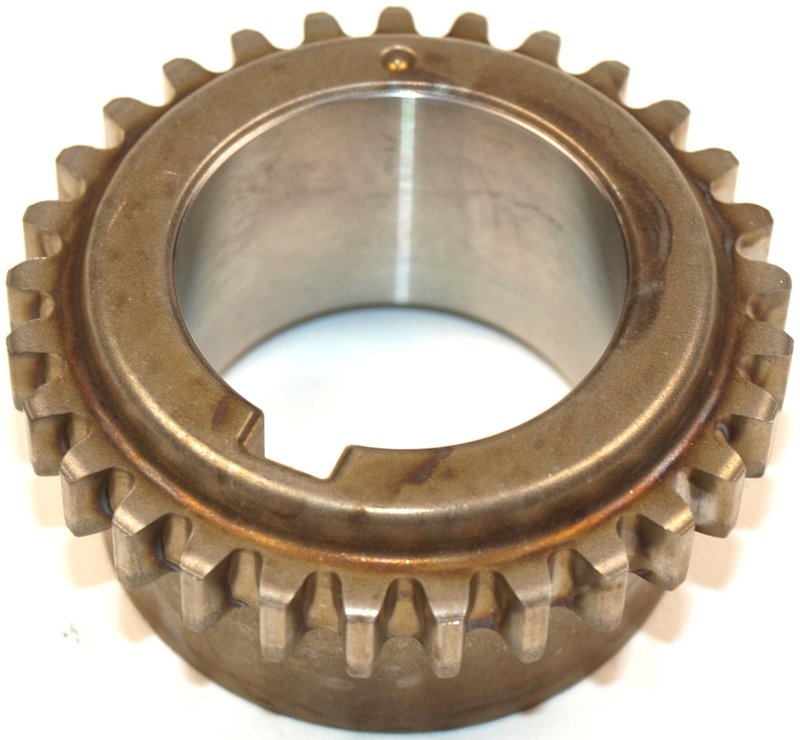

Cloyes S1135 Engine Timing Crankshaft Sprocket

Cloyes S1135 Timing Crankshaft Sprocket

The Cloyes S1135 timing crankshaft sprocket is a precision engine timing component for Ford and Lincoln applications. It is built to work with the timing chain system to maintain accurate camshaft and crankshaft synchronization in the 2016-2024 Ford Transit-150, Transit-250, Transit-350, and Transit-350 HD, plus select Explorer, F-150, Flex, Taurus, Edge, Expedition, and Lincoln models.

Key Features

• Precision-tooled crankshaft sprocket for engine timing service
• Exact tooth geometry for consistent chain engagement
• Matched bore, offset, and timing index for proper fit
• Engine timing component for Ford and Lincoln V6 timing system service
• Part number S1135 for direct reference during ordering and lookup

Product Details

Cloyes timing crankshaft sprockets are engineered as part of the engine’s timing system, working in unison with the timing chain, tensioners, guides, and related sprockets. The S1135 is designed for precise timing control and long-term performance in applications such as the Ford Transit-150, Transit-250, Transit-350, Transit-350 HD, F-150, Explorer, Edge, Flex, Taurus, Expedition, and Lincoln Continental, MKT, MKX, MKS, and Navigator. This part cross-references Ford GT4Z6306A for the same application.

Common Repair Uses

• Restoring correct crankshaft-to-camshaft timing after timing system wear
• Replacing a worn or damaged crankshaft sprocket during timing service
• Addressing timing chain noise caused by sprocket wear or tooth damage
• Correcting timing index issues in Ford and Lincoln engine timing repairs
• Supporting timing system refreshes on high-mileage Transit, F-150, and Explorer models

Installation Notes

For timing system integrity, replace the chain, tensioners, guides, and sprockets together during service. Verify engine code and exact vehicle application before installation. Proper timing alignment and torque procedures are critical when servicing the crankshaft sprocket.

Quality Assurance

Cloyes has specialized in automotive timing systems since 1921. The S1135 is precision-made for accurate fit and dependable timing performance, and it is backed by Cloyes technical support and an industry-leading warranty.
