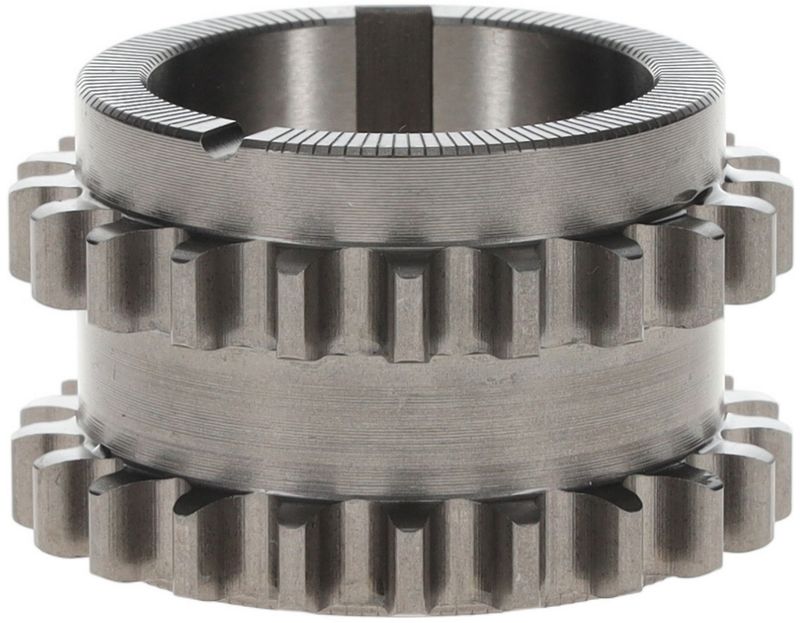

Cloyes S1197 Engine Timing Crankshaft Sprocket
OE Quality 60-Day Returns
Cloyes
 Engine Timing Crankshaft Sprocket

Cloyes S1197 Engine Timing Crankshaft Sprocket

Brand Cloyes S1197
Product line Engine Timing Crankshaft Sprocket
Fits Ford · 3 vehicles

Precision-tooled design. Exact tooth geometry and matched bore support accurate timing system engagement.

Timing system component. Works with the chain, tensioners, guides, and related sprockets during service.

Trusted timing brand. Cloyes has focused on automotive timing systems since 1921.

Cross-references KR3Z6306B for the same application. See all 1.

$54.83Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $54.83
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Crankshaft Sprocket options

Overview

The Cloyes S1197 engine timing crankshaft sprocket is a precision replacement component for timing system service. It is built for exact tooth geometry and a matched bore, offset, and timing index to support accurate chain engagement and consistent engine timing.

Fits 2021-2023 Ford F-150, N/A. This part cross-references KR3Z6306B for the same application.

Key Features

  • Precision-tooled crankshaft sprocket for timing system service
  • Exact tooth geometry for consistent chain engagement
  • Matched bore, offset, and timing index for proper fit
  • Engine timing crankshaft sprocket from Cloyes timing system specialists

Detailed Description

Cloyes S1197 is an engine timing crankshaft sprocket engineered as part of the timing chain drive. In the Ford F-150 application, it works with the chain, tensioners, guides, and related sprockets to maintain accurate valve timing and stable engine operation. The S1197 is a practical choice when servicing timing components and restoring timing system alignment.

Cloyes has focused on automotive timing systems since 1921, and this sprocket reflects that experience with precision machining and controlled indexing. For timing service on the Ford F-150, the S1197 helps maintain the dimensional accuracy needed for dependable chain tracking and long-term performance.

What It Helps Solve

  • Timing chain wear or replacement service
  • Incorrect chain engagement from worn sprocket teeth
  • Timing index issues caused by component wear
  • Loss of timing system accuracy during engine service

Installation Notes

Use during timing system service with the chain, tensioners, and guides inspected together. Cloyes recommends replacing the chain along with the tensioners, guides, and sprockets to maintain timing system integrity. Verify fitment by year, make, model, and engine application before installation.

Quality Assurance

Cloyes is a long-established timing system manufacturer with technical support and warranty coverage backed by the brand.

Related reading

This part fits 3 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
2023FordF-1505.0LV8Engine Timing Crankshaft Sprocket
2022FordF-1505.0LV8Engine Timing Crankshaft Sprocket
2021FordF-1505.0LV8Engine Timing Crankshaft Sprocket
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
KR3Z6306B
