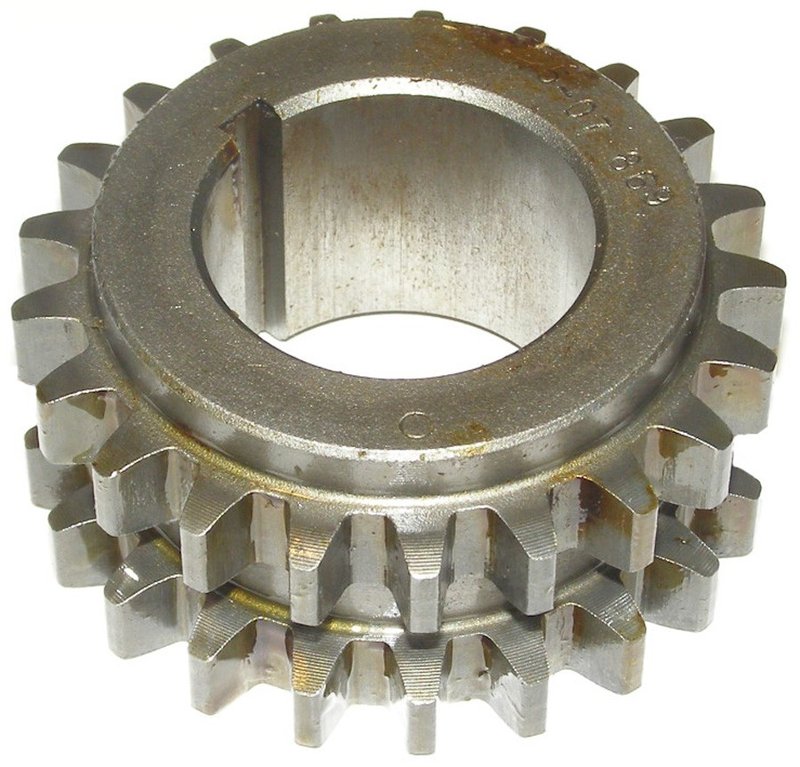

Cloyes S869 Engine Timing Crankshaft Sprocket - Outer

Timing Crankshaft Sprocket for Ford V8 Applications

The Cloyes S869 timing crankshaft sprocket is a specific-fit engine timing component for select Ford, Lincoln, and Mercury applications. It is built with a precision-machined bore, helical tooth form for quieter operation, and a metal construction suited for engine rebuilds and timing system replacement work.

Compatible With Ford F-150, Ford Explorer, Ford Expedition, Lincoln Navigator, and related outer timing sprocket applications, the S869 is designed for direct replacement where the original crankshaft sprocket is worn or damaged. This part number, S869, is also referenced under OE interchange XL3Z6306AA for the same application.

Key Features

• Brand: Cloyes Timing Crankshaft Sprocket
• Part number: S869
• Metal construction with gray finish
• 21-tooth design with 2-row chain configuration
• Helical tooth form for quieter timing system operation
• Precision-machined bore for true fit
• Keyway notch included
• Specific fit for select Ford, Lincoln, and Mercury engines

Product Details

Cloyes designs and manufactures timing components using CAD-based engineering and advanced materials, then tests each part for function and durability. The S869 timing crankshaft sprocket is part of Cloyes Timing Crankshaft Sprocket line and is intended for timing system service where accurate chain engagement and stable crankshaft timing are required. For Ford F-150, Ford Explorer, Ford Expedition, and Lincoln Navigator timing repairs, this sprocket supports proper chain indexing in applications that use an outer crankshaft sprocket configuration.

Common Problems This Part Can Address

• Worn or damaged crankshaft sprocket teeth
• Timing chain noise caused by sprocket wear
• Incorrect chain engagement from a damaged bore or keyway area
• Timing system service during engine rebuilds
• Replacement of a failed outer timing sprocket on select Ford V8 engines

Installation Notes and Tips

• Verify engine application by year, make, model, and position before installation.
• Inspect the timing chain, tensioner(s), and guide(s) during service; Cloyes recommends replacing these components together when the chain is replaced.
• Confirm the keyway notch and bore alignment during installation to ensure proper seating.
• Use application-specific service procedures for timing alignment and torque values.
• Fits 2019 Ford E-350 Super Duty, N/A.
• Fits 1999-2018 Ford E-350 Super Duty, Outer.
• Fits 2003-2014 Ford E-150, Outer.
• Fits 2003-2014 Ford E-250, Outer.
• Fits 2010-2014 Ford Econoline Wagon, Outer.
• Fits 2001-2014 Ford Expedition, Outer.
• Fits 2001-2014 Lincoln Navigator, Outer.
• Fits 2000-2011 Ford Crown Victoria, Outer.
• Fits 2001-2011 Lincoln Town Car, Outer.
• Fits 2000-2011 Mercury Grand Marquis, Outer.
• Fits 2002-2010 Ford Explorer, Outer.
• Fits 2007-2010 Ford Explorer Sport Trac, Outer.
• Fits 2002-2010 Ford F-150, Outer.
• Fits 2002-2010 Ford F-250 Super Duty, Outer.
• Fits 2002-2010 Ford F-350 Super Duty, Outer.
• Fits 2001-2010 Ford Mustang, Outer.
• Fits 2010 Lincoln Mark LT, Outer.
• Fits 2006-2008 Lincoln Mark LT, Outer.
• Fits 2002-2010 Mercury Mountaineer, Outer.
• Fits 2002-2009 Ford F-250, Outer.
• Fits 2002-2009 Ford F-350, Outer.
• Fits 2007-2008 Ford E-150 Econoline, Outer.
• Fits 2001-2002 Ford E-150 Econoline, Outer.
• Fits 2007-2008 Ford E-350 Econoline, Outer.
• Fits 2002-2006 Ford Econoline, Outer.
• Fits 2003-2005 Ford E-150 Club Wagon, Outer.
• Fits 2003-2005 Ford E-350 Club Wagon, Outer.
• Fits 2002-2005 Ford Excursion, Outer.
• Fits 2003-2005 Lincoln Aviator, Outer.
• Fits 2004 Ford F-150 Heritage, Outer.
• Fits 2001-2004 Ford Grand Marquis, Outer.
• Fits 2003-2004 Mercury Marauder, Outer.
• Fits 2001-2002 Ford E-150 Econoline Club Wagon, Outer.
• Fits 2002 Ford E-250 Econoline, Outer.
• Fits 2002 Ford E-350 Econoline Club Wagon, Outer.
• Fits 2002 Lincoln Blackwood, Outer.
• Fits 2001-2002 Lincoln Continental, Outer.
• Fits 1999 Lincoln Navigator, N/A.

Quality Assurance

Cloyes manufactures this timing sprocket with CAD-designed engineering, advanced materials, and functional durability testing to support consistent performance in engine timing service. The S869 is built for specific-fit replacement use in select Ford, Lincoln, and Mercury applications.
