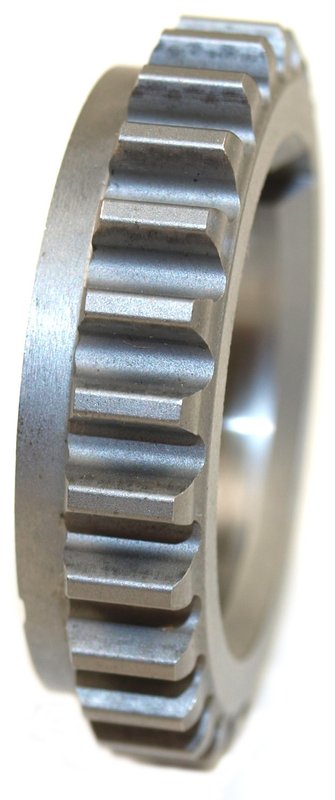

Cloyes S947 Engine Timing Crankshaft Sprocket - Outer

Overview of Cloyes Timing Crankshaft Sprocket S947

The Cloyes Timing Crankshaft Sprocket S947 is engineered for precise engine timing in select Infiniti, Nissan, and Suzuki vehicles. Designed with durable metal construction, this sprocket ensures reliable performance for models such as the Nissan 350Z, Infiniti G35, and Suzuki Equator.

• Material: Metal for strength and durability
• Tooth Quantity: 26 teeth for accurate timing engagement
• Tooth Width: 0.32 inches for optimal chain fit
• Inside Diameter: 1.26 inches matching mounting requirements
• Outside Diameter: 1.98 inches for proper sprocket size
• Thickness: 0.47 inches ensuring structural integrity
• Chain Row Quantity: Single row design
• Mounting Hole Quantity: 1 with a 1.26-inch inside diameter
• Keyway Notch: Included for secure installation
• Non-adjustable design for consistent timing
• Specific fitment for select Infiniti, Nissan, and Suzuki models

About the Cloyes Timing Crankshaft Sprocket Product Line

The Cloyes Timing Crankshaft Sprocket product line focuses on precision-engineered components that maintain accurate engine timing. This line is designed to meet OEM specifications, providing reliable fit and function for specific vehicle applications. The Timing Crankshaft Sprocket S947 is part of this line, offering a metal sprocket with a single chain row and keyway notch to ensure proper alignment and timing chain engagement.

Detailed Product Description

The Cloyes S947 sprocket is crafted from metal to withstand the stresses of engine operation. Featuring 26 teeth with a 0.32-inch tooth width, it is designed to mesh precisely with the timing chain. The sprocket’s dimensions, including a 1.26-inch inside diameter and 1.98-inch outside diameter, align with the mounting requirements of specific Infiniti, Nissan, and Suzuki engines. Its 0.47-inch thickness contributes to durability and resistance to wear. The single chain row and keyway notch provide secure positioning on the crankshaft, preventing slippage and maintaining engine timing accuracy.

Compatible Vehicles and Common Applications

• Compatible with Infiniti models such as G35, G37, FX35, FX37, Q50, Q60, and M35
• Fits Nissan vehicles including 350Z, 370Z, Altima, Frontier, Maxima, Murano, Pathfinder, and Xterra
• Suitable for Suzuki Equator and other specified models
• Used in engine timing systems to synchronize crankshaft and camshaft rotation
• Addresses issues like timing chain wear, sprocket tooth damage, and engine timing misalignment

Installation Notes and Tips

• Ensure the engine is cool and properly supported before installation
• Verify the sprocket’s orientation using the keyway notch for correct alignment
• Use manufacturer-recommended torque specifications when securing the sprocket
• Inspect the timing chain and related components for wear during replacement
• Consult vehicle-specific service manuals for detailed installation procedures

Quality Assurance and Warranty

Cloyes manufactures the Timing Crankshaft Sprocket S947 to meet or exceed OEM standards, ensuring reliable fit and function. The metal construction and precise machining contribute to long service life. Warranty coverage details should be confirmed with the original equipment manufacturer or authorized distributor.
