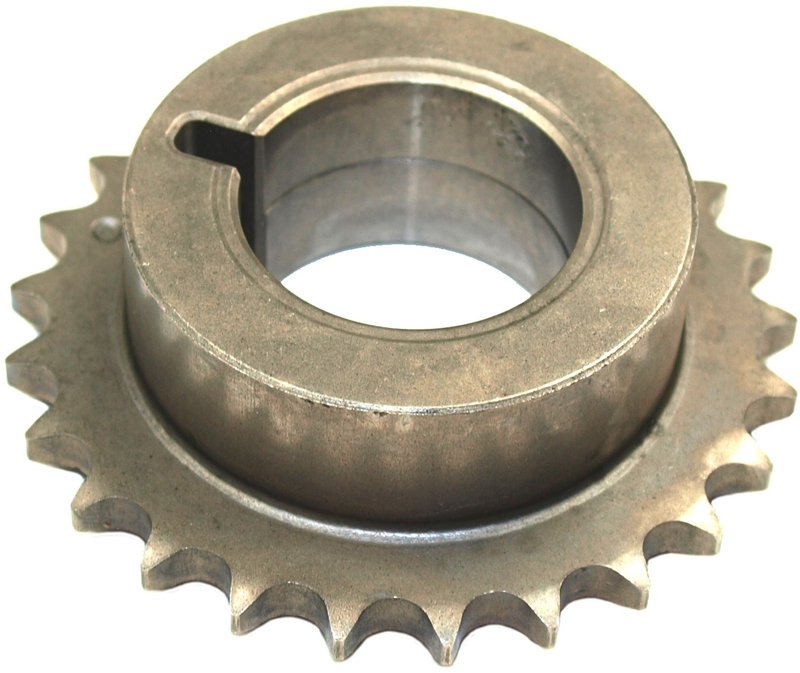

Cloyes S976T Engine Timing Camshaft Sprocket - Front

Overview of Cloyes Timing Camshaft Sprocket S976T

The Cloyes Timing Camshaft Sprocket S976T is a precision-engineered metal sprocket designed for reliable engine timing performance. This component is compatible with select Ford, Lincoln, Mazda, and Mercury models, including the Ford Explorer, Mazda CX-9, and Lincoln MKX.

• Constructed from durable metal for long-lasting wear resistance
• Single chain row design with 25 teeth for accurate timing
• Tooth width of 0.163 inches ensures precise chain engagement
• Inside diameter and mounting hole diameter both measure 1.07 inches for secure fitment
• Thickness of 0.805 inches provides structural stability
• Includes a keyway notch for proper alignment during installation
• Non-adjustable design for consistent timing performance

Details on the Timing Camshaft Sprocket Product Line

The Cloyes Timing Camshaft Sprocket product line focuses on delivering reliable valve train components engineered to meet OEM specifications. This line emphasizes precision manufacturing and material quality to maintain proper camshaft timing and engine efficiency. The S976T sprocket is part of this line, offering a metal construction and exact tooth count to ensure compatibility and durability in various engine applications.

Technical Description and Specifications

The S976T camshaft sprocket features a single chain row with 25 teeth, each 0.163 inches wide, designed to engage precisely with the timing chain. Its 1.07-inch inside diameter and matching mounting hole diameter allow for a secure and accurate fit on the camshaft. The sprocket’s thickness of 0.805 inches contributes to its rigidity, reducing the risk of deformation under engine stress. The inclusion of a keyway notch ensures proper alignment during installation, preventing timing errors. This sprocket is non-adjustable, maintaining consistent timing once installed.

Compatible Vehicles and Common Applications

• Ford Explorer
• Ford Edge
• Ford Flex
• Ford Fusion
• Ford Taurus and Taurus X
• Lincoln MKS, MKT, MKX, MKZ
• Mazda CX-9
• Mercury Sable

This part is designed to address issues related to camshaft timing and valve train synchronization in these vehicles.

Common Issues Addressed by the S976T Camshaft Sprocket

• Worn or damaged sprocket teeth causing timing chain slippage
• Improper camshaft timing leading to engine performance problems
• Excessive wear from metal fatigue or corrosion
• Misalignment due to missing or damaged keyway notch
• Noise or vibration from loose or worn timing components

Installation Notes and Tips

Ensure the engine is cool and the battery is disconnected before beginning installation. Verify the keyway notch aligns correctly with the camshaft key to maintain proper timing. Use appropriate torque specifications when securing the sprocket to avoid damage. Inspect the timing chain and related components for wear during replacement. Professional installation is recommended for accurate timing setup.

Quality Assurance and Warranty

The Cloyes Timing Camshaft Sprocket S976T is manufactured to meet or exceed OEM standards for material and dimensional accuracy. While specific warranty details are not provided, Cloyes products typically undergo rigorous quality control to ensure durability and performance in engine valve train applications.
