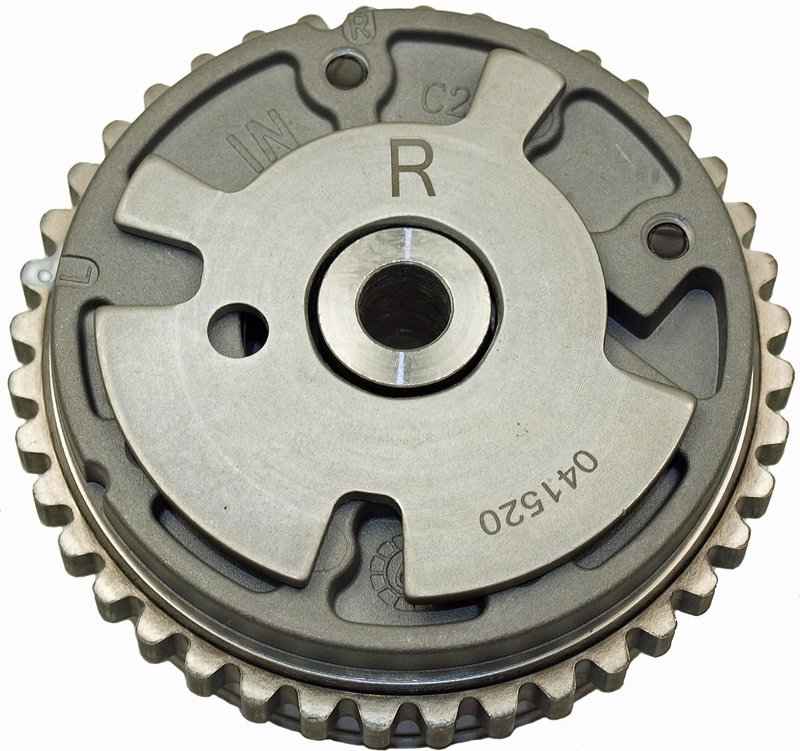

Cloyes VC110 Engine Variable Valve Timing (VVT) Sprocket - Intake (Right)

Overview of Cloyes Variable Valve Timing (VVT) Sprocket VC110

The Cloyes Variable Valve Timing (VVT) Sprocket VC110 is engineered for precise timing control in compatible Buick, Cadillac, Chevrolet, GMC, Pontiac, Saab, Saturn, and Suzuki vehicles. Designed with durable steel construction, this sprocket supports efficient engine valve timing for improved performance and reliability.

• Constructed from high-strength steel for durability
• Single chain row design with 40 teeth for accurate timing
• Inside diameter options: 0.415 inches (10.54 mm)
• Outside diameter: 3.7 inches (94 mm)
• Includes mounting hardware for straightforward installation
• 36 mounting holes with 1.417-inch diameter for secure fitment
• Tooth thickness of 1.504 inches (38.2 mm) and tooth width of 0.317 inches (8.06 mm)
• Equipped with two timing marks for precise alignment
• Non-adjustable gear type designed specifically for variable valve timing systems

About the Variable Valve Timing (VVT) Sprocket Product Line

The Cloyes Variable Valve Timing (VVT) Sprocket product line focuses on components that optimize engine valve timing by synchronizing camshaft and crankshaft rotation. This VC110 sprocket is part of that line, providing a reliable and precise gear designed to maintain proper timing in VVT-equipped engines. Its steel construction and exact tooth specifications ensure consistent performance in a range of GM and other compatible vehicles.

Detailed Product Description

The VC110 sprocket is a critical component in the valve train system, responsible for controlling the timing of the engine’s valves through the variable valve timing mechanism. Its steel build offers strength and resistance to wear, while the single chain row and 40-tooth configuration provide accurate engagement with the timing chain. The sprocket’s dimensions, including a 3.7-inch outside diameter and 0.415-inch inside diameter, are designed to fit specific engine models. The inclusion of mounting hardware and 36 mounting holes with a 1.417-inch diameter ensures a secure and precise installation. Two timing marks on the sprocket assist technicians in aligning the component correctly during installation.

Compatible Vehicles and Applications

• Buick models such as LaCrosse and Enclave
• Cadillac models including ATS, CTS, SRX, and XTS
• Chevrolet vehicles like Camaro, Colorado, and Malibu
• GMC models including Canyon, Terrain, and Acadia
• Other compatible makes: Pontiac, Saab, Saturn, Suzuki

Common Issues Addressed by the VC110 VVT Sprocket

• Irregular or noisy valve timing operation
• Engine performance loss due to timing chain wear
• Check engine light related to variable valve timing faults
• Timing chain slack causing improper valve timing
• Replacement of worn or damaged VVT sprockets in maintenance

Installation Notes and Tips

Installation of the Cloyes VC110 VVT sprocket requires careful alignment using the two timing marks to ensure proper valve timing. The included mounting hardware simplifies the process, but it is important to verify torque specifications according to the vehicle manufacturer’s guidelines. This sprocket is non-adjustable and designed for direct replacement, so ensure compatibility with the specific make and model before installation.

Quality Assurance and Warranty

Cloyes manufactures the VC110 sprocket with strict quality control standards to meet OEM specifications. The steel construction and precise machining contribute to long service life and reliable operation. While specific warranty details may vary, Cloyes products typically come with a limited warranty covering defects in materials and workmanship.
