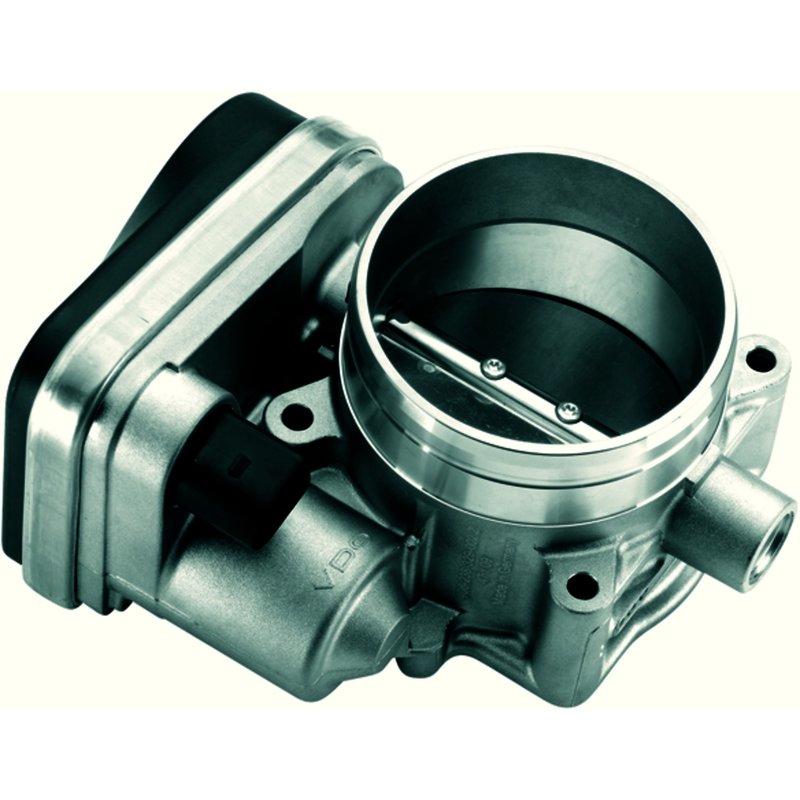

Continental 408-238-329-002Z Fuel Injection Throttle Body Assembly

Overview of Continental Fuel Injection Throttle Body Assembly

The Continental Fuel Injection Throttle Body Assembly 408-238-329-002Z is designed specifically for Volkswagen Touareg models. This electric throttle body assembly ensures precise air intake control and improved engine performance by integrating essential components such as the throttle position sensor and idle air control motor.

• Voltage: 12V electric throttle body
• Color: Silver matte finish
• Air intake port maximum diameter: 82.50 mm
• Throttle bore shape: Circular for optimized airflow
• Terminal type: Blade with 6 male terminals
• Connector shape: Oval for secure electrical connection
• Housing material: Durable aluminum construction
• Includes idle air control motor and throttle position sensor
• Mounting hardware and gasket/seal not included

Technical Details and Features

This throttle body assembly from Continental is engineered with a 12-volt electric throttle system, providing accurate throttle response and efficient air delivery. The aluminum housing offers strength and heat resistance, while the silver matte finish helps reduce glare and corrosion. The circular throttle bore with an 82.50 mm diameter supports optimal airflow for the Volkswagen Touareg’s engine requirements. The assembly includes an integrated idle air control motor and throttle position sensor, which are critical for maintaining stable idle speeds and precise throttle position feedback to the engine control unit.

Compatible Vehicles and Applications

This part number 408-238-329-002Z is compatible with Volkswagen Touareg models requiring a fuel injection throttle body assembly. It is designed to replace the original equipment part, ensuring proper fit and function within the vehicle’s air and fuel delivery system.

• Resolves throttle response issues
• Addresses unstable idle or stalling problems
• Corrects throttle position sensor faults
• Improves air intake control for smoother acceleration
• Replaces damaged or worn throttle body assemblies

Installation Notes and Tips

Installation of this throttle body assembly requires removal of the existing throttle body and careful handling of electrical connectors. Since mounting hardware and gaskets are not included, it is recommended to reuse original components or acquire new ones separately. Ensure all electrical connections, including the blade terminals and oval connector, are securely attached. Calibration or relearning procedures may be necessary after installation to synchronize the throttle position sensor and idle air control motor with the vehicle’s engine control unit.

Quality Assurance and Warranty

Continental manufactures this throttle body assembly to meet OEM specifications, using high-quality aluminum and integrated sensors for reliable performance. While specific warranty details are not provided here, Continental parts typically come with manufacturer-backed warranties covering defects in materials and workmanship. Verify warranty terms with the supplier or manufacturer prior to installation.
