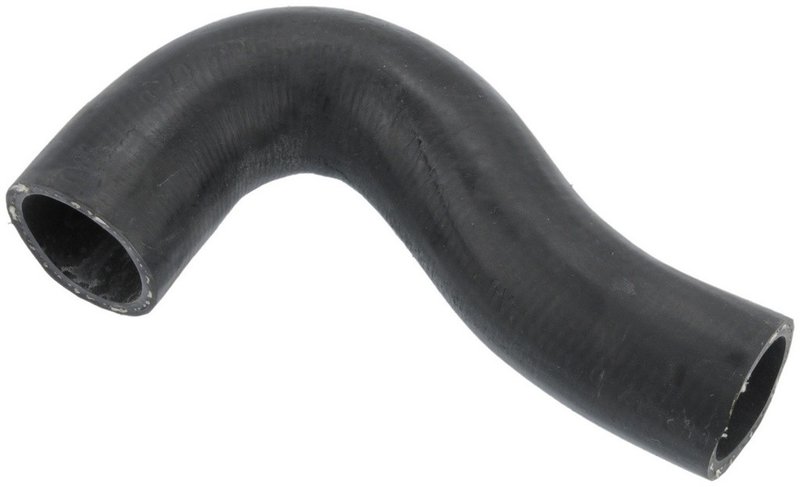

Continental 61165 HVAC Heater Hose

Continental Molded HVAC Heater Hose 61165

Continental 61165 is a molded HVAC heater hose built for coolant transfer in the vehicle cooling system. It uses an EPDM tube and cover with synthetic reinforcement to meet or exceed SAE 20R4EC Class D1 requirements, and its exact OEM configuration supports a precise replacement on the listed applications.

Key Features

• EPDM tube and cover for glycol-based coolant service
• Synthetic reinforcement meets or exceeds SAE 20R4EC Class D1 specifications
• Molded shape follows the original hose routing
• Exact OEM configuration for direct replacement fitment
• Hose 1 inside diameter: 1.310 in.
• Hose 1 length: 8.270 in.
• End 2 hose inside diameter: 1.312 in.

Product Details

This Continental molded heater hose is engineered for vehicles that need a formed coolant hose with the correct diameter and routing. The 61165 part number is listed for 1995 Chevrolet G20 and G30 valve-to-engine applications without air conditioning, 1990-1993 Toyota Celica lower thermostat-to-engine routing, 1989-1992 Geo Prizm lower thermostat-to-engine routing, 1989-1992 Toyota Corolla lower thermostat-to-engine routing, and 1984 Toyota Pickup upper hose placement. For buyers searching for a molded heater hose for a 1990-1993 Toyota Celica or a replacement heater hose for a 1989-1992 Toyota Corolla, this part number provides a direct OE-style match.

Continental’s Molded line focuses on formed hose construction that follows factory contours, helping maintain proper coolant flow and routing in the engine bay. This part cross-references Gates 21223 and Dayco 70989 for the same application.

What It Helps Address

• Cracked or aged heater hose material
• Coolant seepage at the hose body
• Incorrect hose routing from a previous repair
• Loss of heater circuit coolant flow
• Fitment issues caused by non-molded replacement hoses

Installation Notes and Tips

Verify the vehicle’s year, make, model, and hose position before ordering. Match the molded shape and the listed inside diameters to the original hose, especially on cut-to-fit applications such as the Toyota Celica, Geo Prizm, and Toyota Corolla listings. Inspect adjoining fittings, clamps, and coolant condition during replacement, and confirm the hose is routed without twist or tension after installation.

Quality Assurance

Continental manufactures this hose to meet or exceed SAE 20R4EC Class D1 specifications, using EPDM construction and synthetic reinforcement for coolant-system service. The exact OEM configuration is intended to match the original hose layout on the listed vehicles.
