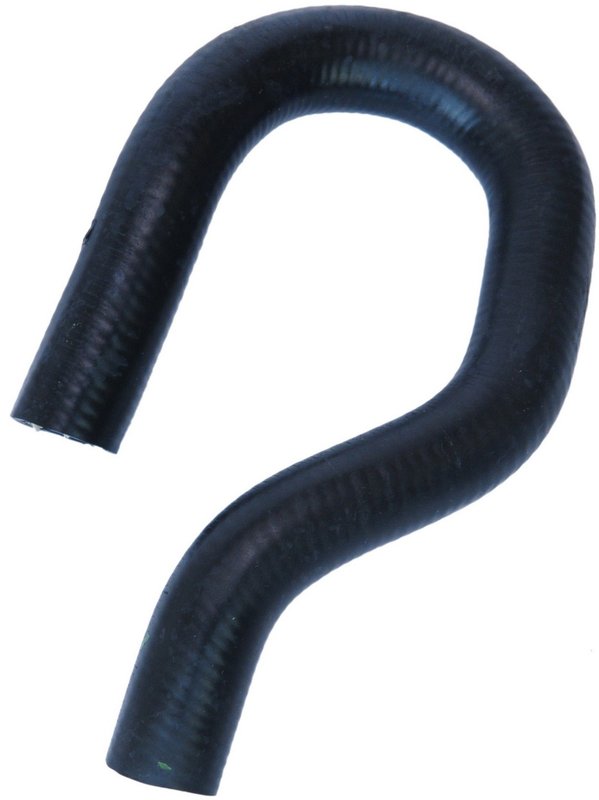

Continental 64134 HVAC Heater Hose

Continental HVAC Heater Hose 64134

Continental 64134 is a molded HVAC heater hose built for coolant transfer between the heater core, bypass circuit, radiator, and related engine cooling components. It is formed to match the routing used on select Honda and Acura applications, with a 0.620 in. inside diameter at both ends and a 13.470 in. hose length.

Continental’s Molded line focuses on OE-style hose routing and fitment for service replacements where a formed hose is required. This heater hose is specified to SAE 20R3EC Class D1 and Class D2 standards and is resistant to electrochemical degradation (ECR), helping it stand up to coolant exposure in demanding HVAC and cooling-system service.

• 0.620 in. inside diameter at Hose 1 and End 2
• 13.470 in. molded hose length
• Transfers glycol-based coolant through heater and bypass circuits
• Built to SAE 20R3EC Class D1 and Class D2 specifications
• Resistant to electrochemical degradation (ECR)
• Continental part number 64134 for direct catalog lookup

This hose is used in cooling-system service where a formed heater hose is needed to route coolant to and from the heater core and through bypass passages. It cross-references Dayco 87746 for the same application.

Vehicle Fitment

• Fits 2009-2011 Honda Odyssey, Heater Valve To Tee, Molded
• Fits 2003-2006 Acura MDX, Heater To Valve Inlet, Molded
• Fits 2006 Honda Pilot, Valve To Engine, Molded
• Fits 2001-2002 Acura MDX, Pipe To Valve, Molded
• Fits 1997-1998 Acura EL, N/A, Molded

Installation Notes and Tips

Verify hose routing, end diameters, and molded shape against the original hose before installation. Inspect adjoining heater valves, tees, pipes, and clamps for wear or corrosion, and replace any damaged cooling-system components before refilling with coolant. Confirm the hose is seated fully on each connection point and check for leaks after the engine reaches operating temperature.

Quality Assurance

Continental manufactures this molded heater hose to meet defined SAE material and performance requirements, with ECR resistance for improved durability in coolant service. Part number 64134 is cataloged for select Honda Odyssey, Honda Pilot, Acura MDX, and Acura EL applications.
