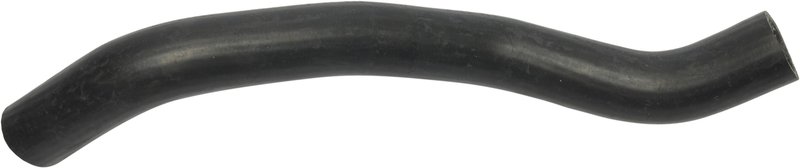

Continental 66690 Radiator Coolant Hose - Lower

Continental 66690 Lower Radiator Hose

Continental 66690 is a molded lower radiator coolant hose for the cooling system on select Hyundai Genesis models. It is built with an EPDM tube and cover plus synthetic reinforcement to handle glycol-based coolant flow and maintain OE-style routing and fit.

Key Features

• Fits 2009-2014 Hyundai Genesis, lower
• Molded hose profile for exact OEM configuration
• EPDM tube and cover for coolant-system durability
• Synthetic reinforcement meets or exceeds SAE 20R4EC Class D1 specifications
• 1.380 in. inside diameter at both ends
• 18.500 in. hose length
• Continental 66690 for direct replacement service

Product Details

This Continental molded radiator coolant hose is engineered for the lower cooling circuit on 2009-2014 Hyundai Genesis vehicles. The 1.380-inch inside diameter at both ends and 18.500-inch length support a precise OE-style route, while the EPDM construction and synthetic reinforcement are specified for coolant transfer in demanding engine bay conditions. If you are replacing a worn Hyundai Genesis lower radiator hose, Continental 66690 provides the correct molded shape and dimensions for the application.

This part cross-references Gates 24833 for the same application.

Common Problems It Can Address

• Coolant leaks from a cracked or aged lower hose
• Softening, swelling, or collapse of the hose under heat
• Poor hose routing caused by a misshaped replacement part
• Loss of coolant circulation through the lower radiator circuit
• Service replacement for a damaged Hyundai Genesis lower radiator hose

Installation Notes

Verify hose routing against the original part before installation on the Hyundai Genesis. Inspect adjoining clamps, radiator necks, and coolant connections for wear or corrosion, and confirm the hose seats fully at both ends. After installation, refill and bleed the cooling system according to the vehicle service procedure and check for leaks at operating temperature.

Quality Assurance

Continental designs this molded hose to meet or exceed SAE 20R4EC Class D1 specifications, with an exact OEM configuration for fit and function. Continental 66690 is built for direct replacement use in the vehicle cooling system.
