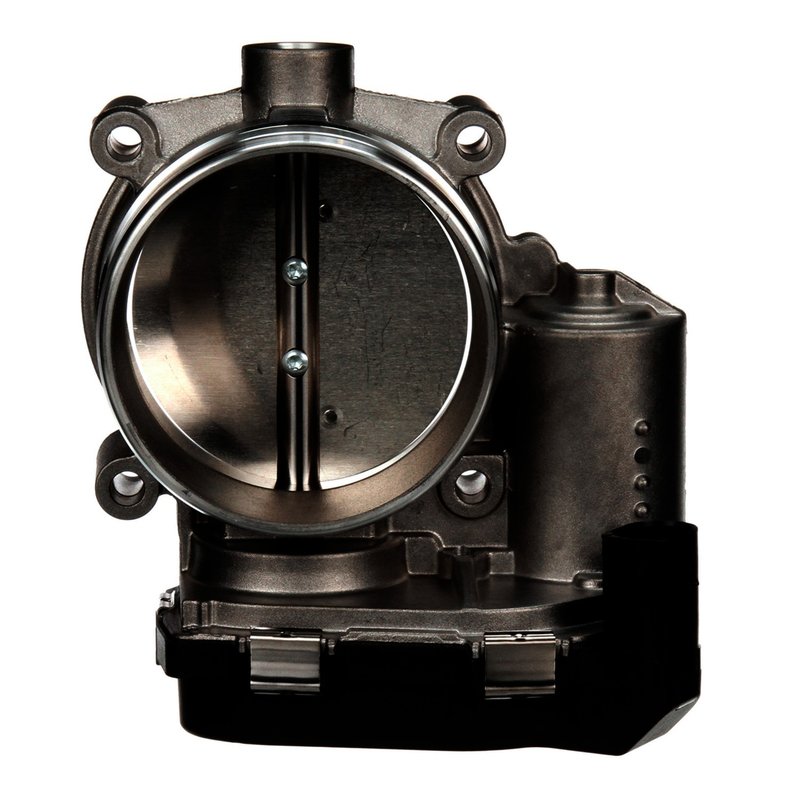

Continental A2C59516747 Fuel Injection Throttle Body Assembly

Overview of Continental Fuel Injection Throttle Body Assembly

The Continental Fuel Injection Throttle Body Assembly, part number A2C59516747, is designed specifically for Audi A8 Quattro models. This electric throttle body assembly ensures precise air intake control and optimal engine performance for your vehicle.

• Voltage: 12V for standard automotive electrical systems
• Color: Silver matte finish with durable aluminum housing
• Air Intake Port Maximum Diameter: 82.50 mm circular throttle bore
• Terminal Type: Blade terminals with 6 male connectors
• Connector Shape: Oval for secure electrical connection
• Includes Idle Air Control Motor and Throttle Position Sensor
• Mounting hardware and gasket/seal not included

Technical Details and Features

This throttle body assembly features a robust aluminum housing that provides durability and heat resistance. The circular throttle bore with an 82.50 mm maximum diameter allows for efficient air flow management. Equipped with an electric throttle body type, it integrates both the idle air control motor and throttle position sensor to maintain accurate throttle response and idle speed control. The 12-volt system and blade-type terminals with six male connectors ensure compatibility with the Audi A8 Quattro’s electrical system. The oval connector shape facilitates a secure and reliable connection during installation.

Compatible Vehicles and Applications

This Continental throttle body assembly is compatible with Audi A8 Quattro models requiring part number A2C59516747. It is designed to replace the factory throttle body to restore proper air and fuel delivery, improving engine efficiency and drivability.

• Resolves rough idling and unstable engine speed
• Addresses throttle response delays or hesitation
• Corrects issues related to faulty throttle position sensor
• Fixes air intake inconsistencies affecting fuel injection
• Eliminates check engine light codes related to throttle body faults

Installation Notes and Tips

Installation of this throttle body assembly requires removal of the existing throttle body from the intake manifold. Ensure the electrical connectors match the oval blade terminal configuration. Since mounting hardware and gaskets are not included, reuse existing components if in good condition or source replacements separately. Proper torque specifications should be followed to avoid air leaks. It is recommended to perform a throttle body relearn procedure after installation to calibrate the idle air control motor and throttle position sensor.

Quality Assurance and Warranty

Continental manufactures this throttle body assembly to meet OEM specifications for fit, form, and function. The aluminum housing and integrated sensors are tested for durability and performance under typical operating conditions. While specific warranty details are not provided here, Continental products generally come with a limited warranty covering defects in materials and workmanship. Verify warranty terms with the supplier or manufacturer documentation.
