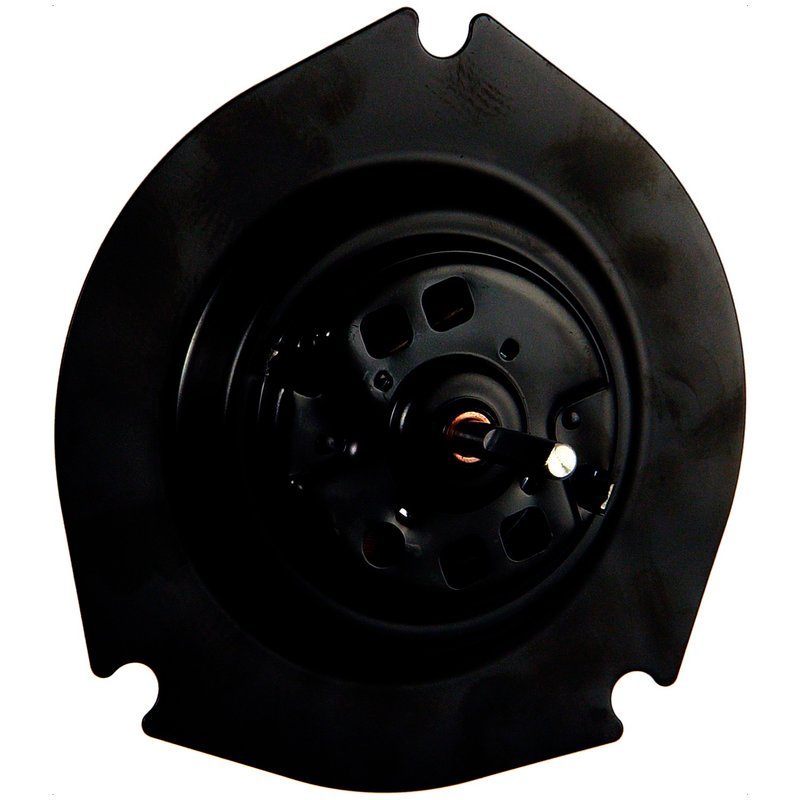

Continental PM2002 HVAC Blower Motor - Front or Rear

Overview of Continental PM2002 HVAC Blower Motor

The Continental PM2002 HVAC blower motor is designed for reliable performance in Dodge B1500, B2500, B3500, Ram 1500 Van, Ram 2500 Van, and Ram 3500 Van models. This metal construction motor operates on 12 volts and features a flange-mounted design for secure installation.

• Durable metal material construction
• 12-volt electrical system compatibility
• Flange-mounted with a mounting bolt pattern length of 6.875 inches
• Reversible rotation for versatile airflow control
• Variable speed operation for precise HVAC performance
• Plug-in connector type with blade terminals
• Single shaft design with a 0.312-inch diameter and 2.000-inch shaft length
• Vented motor housing for heat dissipation
• Flanged end and mounting flange to end of case length of 1.031 inches
• Motor dimensions: 3.250 inches diameter and 4.750 inches length

Detailed Product Description

The Continental PM2002 blower motor is engineered to meet the HVAC demands of specific Dodge and Ram van models, including the B1500, B2500, B3500, Ram 1500 Van, Ram 2500 Van, and Ram 3500 Van. Its metal construction ensures durability under continuous operation, while the 12-volt system matches the electrical requirements of these vehicles. The flange-mounted design with a 6.875-inch bolt pattern length allows for a secure and stable fit. The motor features a reversible rotation capability, enabling it to adapt to different airflow needs within the HVAC system. Variable speed control provides precise adjustment of cabin airflow, enhancing comfort and system efficiency. The plug-in connector with blade terminals simplifies electrical connections, and the vented housing helps maintain optimal motor temperature during operation.

Common Applications and Issues Addressed

• Replacement of faulty or worn blower motors in Dodge B1500, B2500, B3500, and Ram 1500/2500/3500 Vans
• Restoring HVAC blower functionality to improve cabin heating and cooling
• Resolving inconsistent blower speeds or motor noise issues
• Addressing blower motor failure due to overheating with vented motor design
• Upgrading to a motor with reversible rotation for enhanced airflow control

Installation Notes and Tips

• Ensure compatibility with Dodge B1500, B2500, B3500, Ram 1500 Van, Ram 2500 Van, and Ram 3500 Van models before installation
• Flange-mounted design requires alignment of the 6.875-inch mounting bolt pattern
• Use appropriate tools to secure the motor flange; mounting hardware is not included
• Verify electrical connections with the plug-in blade terminal connectors for proper polarity
• Check shaft alignment and clearance during installation to avoid interference

Quality Assurance and Warranty

Continental manufactures the PM2002 blower motor to meet OEM standards for durability and performance. The motor's metal construction and vented design contribute to long service life under typical operating conditions. While specific warranty details are not provided here, Continental products generally come with manufacturer-backed warranties to ensure customer confidence and product reliability.
