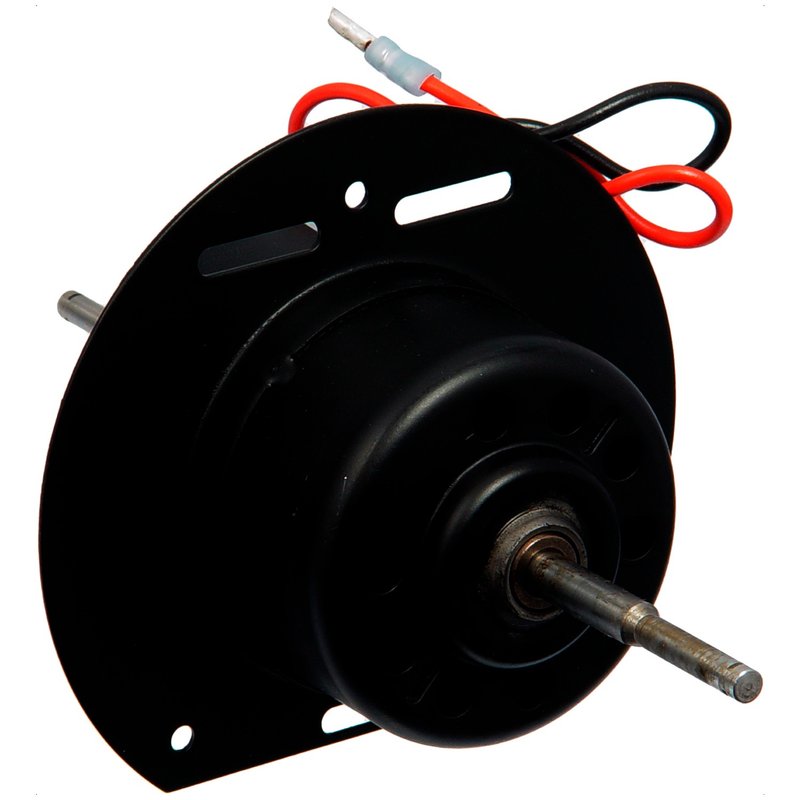

Continental PM3512 HVAC Blower Motor

Overview of Continental HVAC Blower Motor PM3512

The Continental HVAC Blower Motor PM3512 is designed specifically for the Volvo 240, providing reliable airflow control within the vehicle's heating and cooling system. This metal motor operates on 12 volts and features a flange-mounted design for secure installation.

• Durable metal construction for long-lasting performance
• 12-volt operation compatible with Volvo 240 electrical systems
• Flange-mounted with variable mounting bolt pattern length
• 2.5-inch shaft length with a 0.234-inch diameter single shaft
• Clockwise rotation at the shaft end for proper airflow direction
• Plug-in, bolt-on connector type with male and female terminals
• Variable speed motor with vented housing for heat dissipation
• Mounting flange to end of case measures 1.5 inches
• Motor dimensions: 3-inch diameter and 4.062-inch length

Detailed Product Description

The Continental PM3512 HVAC blower motor is engineered to meet the specific requirements of the Volvo 240 model. Its metal construction ensures durability under continuous operation, while the vented motor housing helps maintain optimal temperature during use. The flange-mounted design allows for a secure fit, with a mounting flange to end of case length of 1.5 inches and a mounting base length of 3.5 inches. The motor shaft is a single shaft type, measuring 2.5 inches in length and 0.234 inches in diameter, rotating clockwise at the shaft end to match the original equipment specifications.

Electrical connections are facilitated through plug-in, bolt-on connectors with both male and female terminals, supporting two terminal quantities with bullet and ring terminal types. This motor supports variable speeds, allowing for adjustable airflow control within the HVAC system of the Volvo 240. Note that mounting hardware and gaskets or seals are not included with this part.

Compatible Vehicles and Applications

• Compatible with Volvo 240 HVAC systems requiring a 12-volt blower motor
• Designed to replace original blower motors with flange-mounted installation
• Ideal for restoring HVAC blower function in Volvo 240 models experiencing airflow issues
• Suitable for variable speed HVAC blower motor applications

Installation Notes and Tips

• Ensure the mounting bolt pattern matches your vehicle’s specifications as it may vary
• Verify clockwise shaft rotation to maintain proper blower operation
• Use existing mounting hardware or source compatible bolts as hardware is not included
• Check connector types for compatibility with your vehicle’s wiring harness
• Handle the motor carefully to avoid damage to the shaft and terminals during installation

Quality Assurance and Warranty

Continental manufactures the PM3512 blower motor to meet OEM standards for fit and function in Volvo 240 vehicles. The motor’s metal construction and vented design contribute to its durability and reliable performance. While mounting hardware and seals are not included, the product is backed by Continental’s quality control processes. Please refer to Continental’s warranty policy for specific coverage details.
