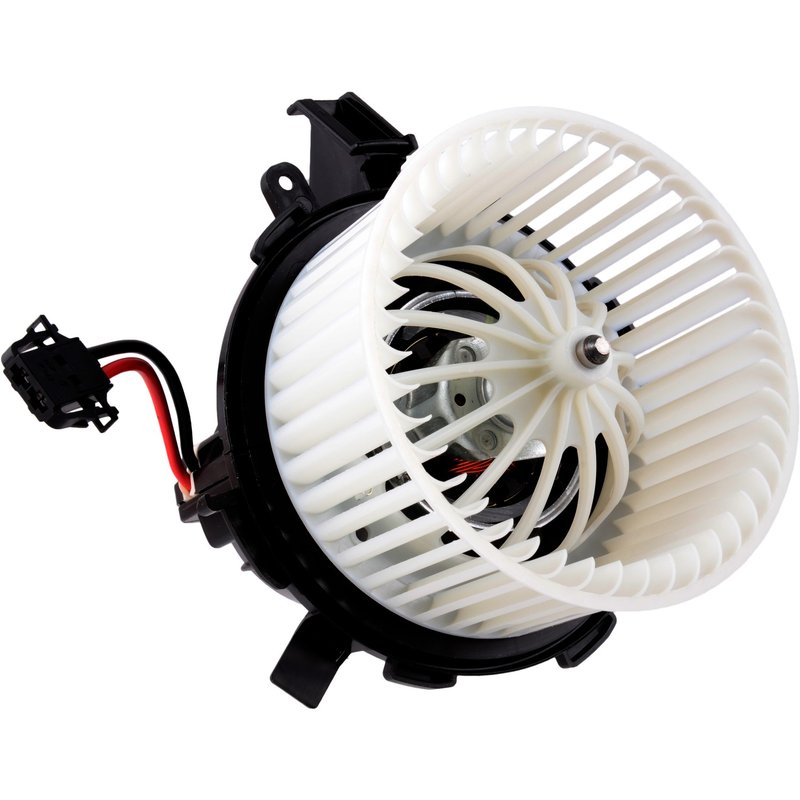

Continental PM4096 HVAC Blower Motor

Overview of Continental HVAC Blower Motor PM4096

The Continental HVAC Blower Motor PM4096 is designed for reliable climate control in select Audi vehicles. Engineered with a metal construction and variable speed capability, this blower motor ensures consistent airflow for your Audi A4, A5, Q5, S4, and S5 models.

• Durable metal housing for long-lasting performance
• 12-volt operation compatible with standard automotive electrical systems
• Flange mounted with a 6.125-inch bolt pattern length for secure installation
• Variable speed motor with clockwise shaft rotation
• Includes cage wheel and vented design for efficient airflow
• Plug-in connector with female spade terminals for easy wiring
• Wheel diameter of 4.75 inches and shaft length of 2.437 inches

Technical Details and Specifications

The PM4096 blower motor features a 3-inch motor diameter and a 4.062-inch motor length, optimized for fitment in various Audi HVAC systems. Its single shaft design with a 0.312-inch diameter shaft ensures compatibility with factory components. The flange-mounted method provides a stable and secure attachment point, while the vented motor housing aids in heat dissipation during operation. The motor includes a plug-in connector with two female spade terminals, simplifying electrical connections without the need for hardwiring. This blower motor supports variable speeds, allowing precise control over cabin airflow.

Compatible Audi Models and Applications

This HVAC blower motor PM4096 is compatible with the following Audi models:

• Audi A4 and A4 Quattro
• Audi A5 and A5 Quattro
• Audi Q5
• Audi S4
• Audi S5

It is designed to replace factory blower motors in these vehicles, restoring proper HVAC function and airflow control.

Common Issues Addressed by PM4096 Blower Motor

• Intermittent or no airflow from the HVAC system
• Unusual noises or vibrations during blower operation
• Inconsistent blower speeds or failure to adjust speed
• Overheating or motor failure due to worn components
• Electrical connection problems causing blower motor malfunction

Installation Notes and Tips

Installation of the Continental PM4096 blower motor requires removal of the existing blower motor assembly. Ensure the mounting flange aligns with the 6.125-inch bolt pattern for proper fitment. The plug-in connector with female spade terminals allows for straightforward electrical connection without modification. Note that mounting hardware and gaskets are not included, so retain original components or source replacements as needed. Verify clockwise shaft rotation and shaft dimensions to confirm compatibility before installation.

Quality Assurance and Warranty

Continental manufactures the PM4096 blower motor to meet OEM standards for durability and performance. The metal construction and vented design contribute to reliable operation under typical automotive conditions. While specific warranty details are not provided here, Continental products generally come with manufacturer-backed warranties to cover defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
