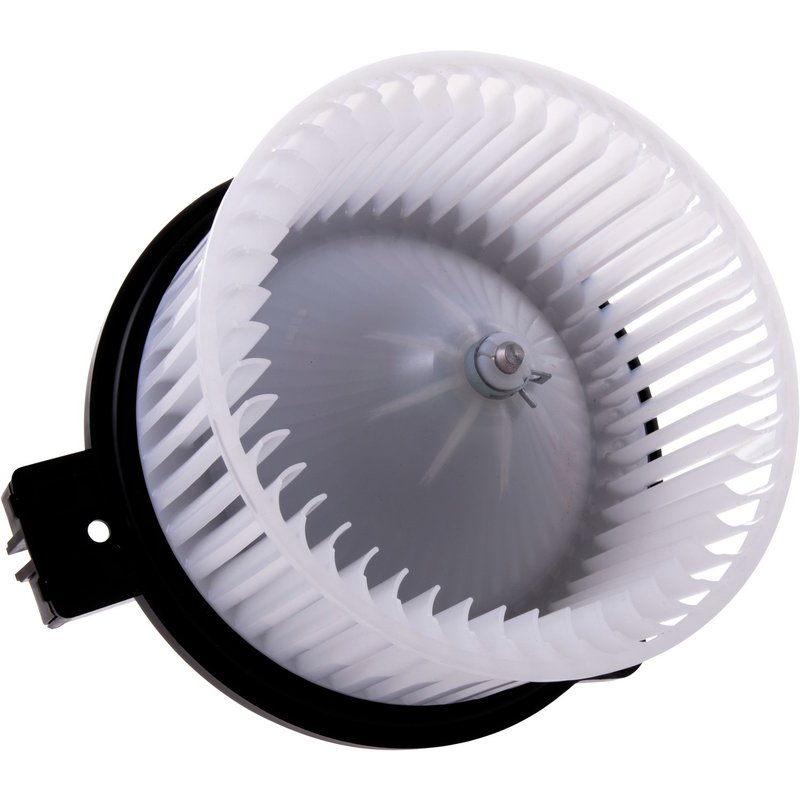

Continental PM4106 HVAC Blower Motor

Overview of Continental PM4106 HVAC Blower Motor

The Continental PM4106 HVAC blower motor is designed for reliable climate control in select Mazda vehicles. Engineered with durable metal construction and a flange-mounted design, this motor ensures consistent airflow for your vehicle's heating and cooling system.

• Metal construction for durability and heat resistance
• 12-volt operation compatible with standard automotive electrical systems
• Flange-mounted with a 6.625-inch mounting bolt pattern length
• Counterclockwise shaft rotation with a 0.312-inch diameter single shaft
• Variable speed control for adjustable airflow
• Includes cage wheel and vented motor housing for efficient cooling
• Plug-in connector with male terminals and female connector for easy installation
• Wheel diameter of 5.250 inches for optimal air movement
• Compatible with Mazda 3, 3 Sport, 6, CX-3, and CX-5 models

Technical Details and Specifications

The PM4106 blower motor features a 3-inch motor diameter and a length of 4.375 inches, making it a compact yet powerful component for your HVAC system. Its flange-mounted design simplifies installation and ensures a secure fit. The motor operates on 12 volts and includes a plug-in connector type with two blade terminals, facilitating straightforward electrical connections. The shaft length measures 1.625 inches, with a single shaft type rotating counterclockwise at the shaft end. The motor housing is vented to prevent overheating during operation, and the included cage wheel enhances airflow efficiency.

Compatible Vehicles and Applications

This HVAC blower motor is specifically compatible with various Mazda models, including the Mazda 3, Mazda 3 Sport, Mazda 6, Mazda CX-3, and Mazda CX-5. The PM4106 part number ensures you receive the correct replacement component designed to meet the original equipment specifications for these vehicles.

Common Issues Addressed by the PM4106 Blower Motor

• Inconsistent or weak airflow from the HVAC system
• Blower motor noise or unusual sounds during operation
• Complete failure of the blower motor resulting in no air circulation
• Intermittent blower motor function or speed control problems
• Overheating of the blower motor due to venting issues

Installation Notes and Tips

Installation of the Continental PM4106 blower motor requires removal of the existing motor and careful alignment with the flange-mounted bolt pattern. Note that mounting hardware and gaskets or seals are not included, so retain original components or acquire replacements as needed. The plug-in connector simplifies electrical connections, but verify terminal compatibility before installation. Ensure the motor shaft rotation matches the original to maintain proper blower wheel function.

Quality Assurance and Warranty

Continental manufactures the PM4106 blower motor to meet stringent quality standards, ensuring reliable performance and durability. While specific warranty details are not provided here, Continental products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Verify warranty terms with your parts provider or Continental directly.
