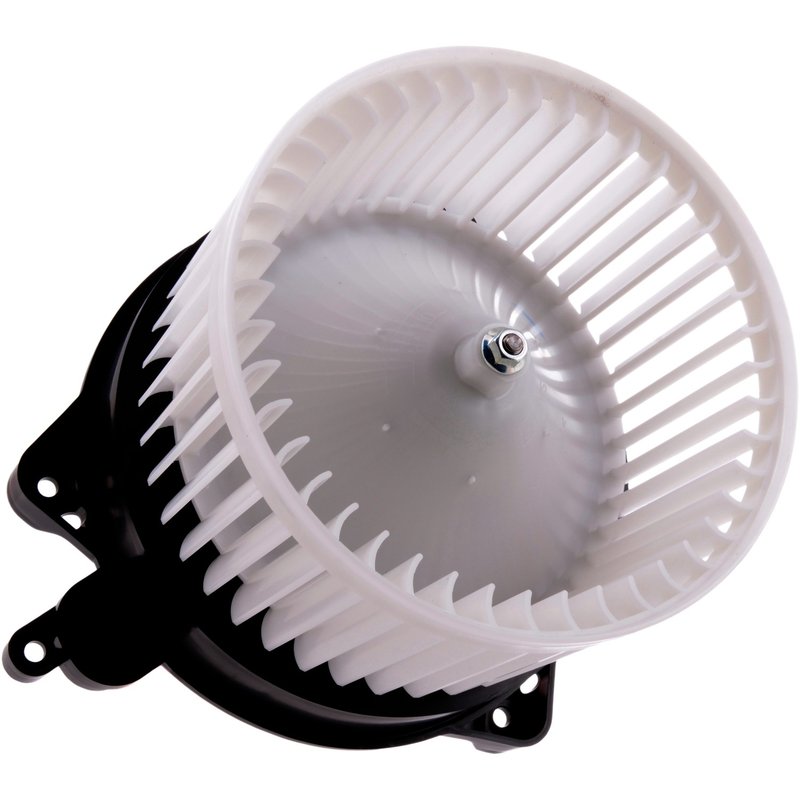

Continental PM4109 HVAC Blower Motor

Overview of Continental HVAC Blower Motor PM4109

The Continental HVAC Blower Motor PM4109 is designed specifically for the Mazda MX-5 Miata, providing reliable airflow control within the vehicle's heating and cooling system. This metal motor operates on 12 volts and features a flange-mounted design for secure installation.

• Durable metal construction for long-lasting performance
• 12-volt operation compatible with Mazda MX-5 Miata electrical systems
• Flange-mounted with a mounting bolt pattern length of 6.687 inches
• Counterclockwise shaft rotation with a 2.750-inch shaft length
• Variable speed motor with a 5.750-inch wheel diameter
• Plug-in connector type with blade terminals for easy electrical connection
• Includes cage wheel and vented motor housing for efficient airflow

Technical Details and Specifications

The PM4109 blower motor features a single shaft with a diameter of 0.312 inches and a motor diameter of 3.000 inches, ensuring compatibility with the HVAC system of the Mazda MX-5 Miata. The motor length measures 4.375 inches, and the mounting base length is 3.062 inches. This blower motor is flange mounted, providing a secure fit without included mounting hardware. The plug-in connector with female gender terminals simplifies installation and maintenance. The motor is vented to prevent overheating and includes a cage wheel to optimize airflow efficiency.

Compatible Vehicles and Applications

This HVAC blower motor is compatible with the Mazda MX-5 Miata, making it a suitable replacement part for maintaining proper climate control within this vehicle model. The PM4109 part number ensures precise fitment and performance for this specific application.

• Restores proper airflow in the HVAC system
• Resolves issues with weak or inconsistent blower motor operation
• Eliminates unusual noises caused by worn blower motors
• Improves heating and cooling efficiency inside the vehicle cabin
• Addresses blower motor failure or intermittent function

Installation Notes and Tips

Installation of the Continental PM4109 blower motor requires removal of the existing motor from the HVAC housing. Since mounting hardware is not included, retain original bolts or source compatible fasteners. The flange-mounted design ensures a secure fit when properly aligned. Connect the plug-in blade terminals carefully, ensuring correct polarity and secure connection. Verify the motor rotation direction is counterclockwise at the shaft end to match OEM specifications. Testing the motor operation before reassembly is recommended to confirm proper installation.

Quality Assurance and Warranty

Continental manufactures the PM4109 blower motor to meet OEM standards for durability and performance. The metal construction and vented design contribute to reliable operation under normal driving conditions. While specific warranty details are not provided, Continental products typically come with manufacturer-backed quality assurance. For detailed warranty information, consult the product documentation or authorized Continental parts distributor.
