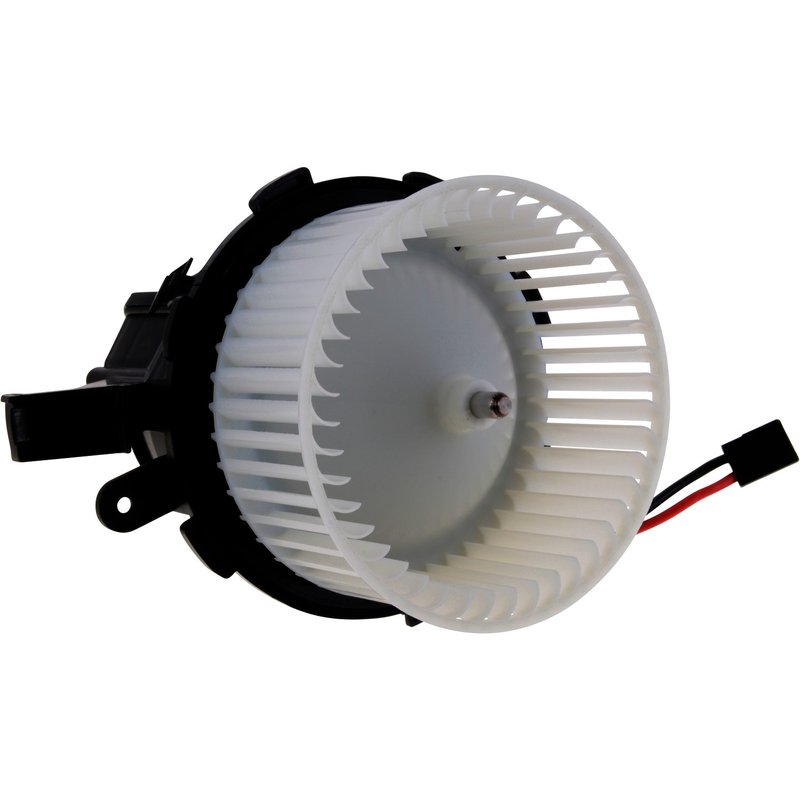

Continental PM4590 HVAC Blower Motor

Overview of Continental HVAC Blower Motor PM4590

The Continental HVAC Blower Motor PM4590 is designed for reliable climate control in select Audi and Porsche vehicles. This metal construction blower motor offers variable speeds and a flange-mounted design to ensure efficient airflow and durability.

• Durable metal housing with vented design for heat dissipation
• 12-volt operation compatible with standard automotive electrical systems
• Flange-mounted with variable mounting bolt pattern length
• Single shaft with 1.625-inch length and 0.312-inch diameter
• Includes cage wheel with 4.75-inch diameter for optimal air movement
• Counterclockwise rotation at lead end for proper fitment
• Plug-in connector with female gender and spade terminals (2 terminals)
• Compatible with multiple Audi and Porsche models

Technical Details and Specifications

The PM4590 blower motor features a compact motor diameter and length of 3 inches each, making it suitable for tight HVAC system spaces. Its flange-mounted design allows for secure installation, while the vented metal casing helps maintain motor temperature during operation. The motor shaft is a single shaft type, measuring 1.625 inches in length and 0.312 inches in diameter, designed to fit the blower wheel included with a 4.75-inch diameter. The motor rotates counterclockwise at the lead end, matching OEM specifications for proper airflow direction. Electrical connections are made via a plug-in connector with female gender and two male spade terminals, ensuring compatibility with factory wiring harnesses.

Compatible Vehicles and Applications

This HVAC blower motor PM4590 is compatible with the following vehicle makes and models:

• Audi A4, A4 Quattro, A5, A5 Quattro, allroad
• Porsche Macan, Q5, RS5, S4, S5, SQ5

It is designed to replace factory blower motors in these models, restoring proper HVAC airflow and climate control performance.

Common Issues Addressed by PM4590 Blower Motor

• Inconsistent or weak airflow from HVAC vents
• Blower motor noise or vibration during operation
• Failure of blower motor to operate at variable speeds
• Overheating of blower motor due to poor ventilation
• Electrical connection problems causing intermittent blower function

Installation Notes and Tips

Installation of the Continental PM4590 blower motor requires removal of the existing blower motor assembly. The flange-mounted design allows for straightforward bolt-on replacement, but mounting bolt pattern length may vary, so verify fitment before installation. The motor includes a plug-in connector with female gender and spade terminals; ensure proper alignment and secure connection to the vehicle wiring harness. Note that mounting hardware and gaskets or seals are not included and may need to be reused or replaced separately. Proper handling of the cage wheel and shaft during installation is recommended to avoid damage.

Quality Assurance and Warranty

Continental manufactures the PM4590 blower motor to meet OEM standards for durability and performance. The metal construction and vented design contribute to long service life under normal operating conditions. While specific warranty details are not provided here, Continental products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Verify warranty terms with the supplier or manufacturer upon purchase.
