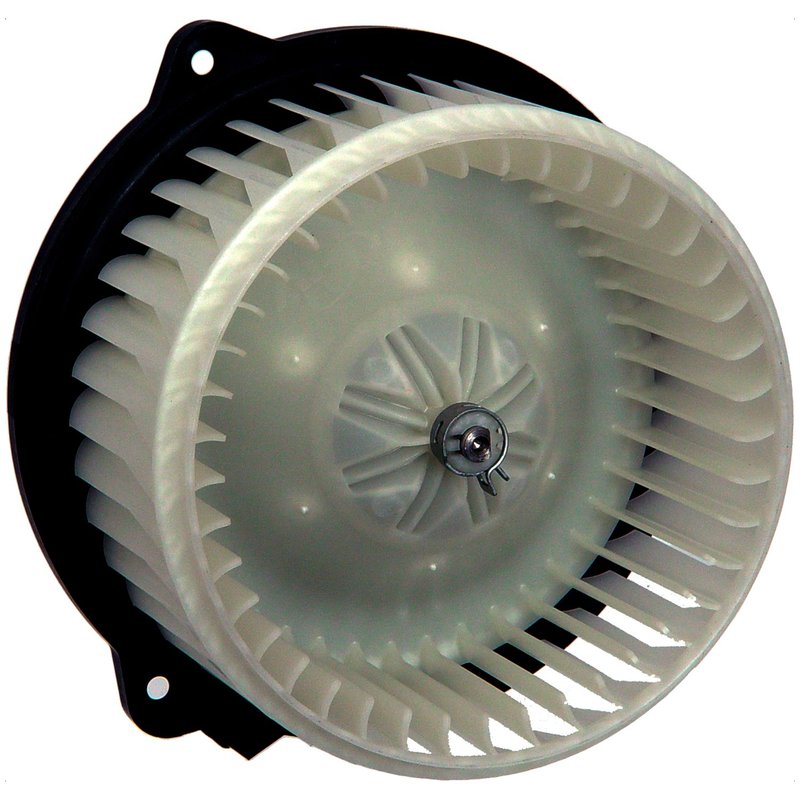

Continental PM9199 HVAC Blower Motor - Front or Rear

Overview of Continental HVAC Blower Motor PM9199

The Continental HVAC Blower Motor PM9199 is designed for reliable climate control in select Lexus and Toyota vehicles. Engineered with durable metal construction and a flange-mounted design, this blower motor ensures consistent airflow for your vehicle's heating and cooling system.

• Durable metal material for long-lasting performance
• 12-volt operation compatible with standard automotive electrical systems
• Flange-mounted with a 6.687-inch mounting bolt pattern length
• Counterclockwise single shaft rotation with a 0.312-inch shaft diameter
• Includes a 5.750-inch diameter cage wheel for efficient air movement
• Variable speed motor with plug-in female connector and blade terminals
• Vented motor housing to prevent overheating
• Compatible with Lexus and Toyota models including Camry, RX330, Sienna, and Solara

Technical Details and Specifications

The PM9199 blower motor features a compact motor diameter of 3.000 inches and a motor length of 2.625 inches, making it suitable for direct replacement in compatible vehicles. Its flange-mounted design allows for secure installation using existing mounting points. The motor operates at 12 volts and includes a plug-in connector with two blade terminals, facilitating straightforward electrical connections. The counterclockwise rotation of the single shaft, measuring 3.187 inches in length, matches OEM specifications for proper blower wheel operation. Additionally, the vented motor housing helps maintain optimal operating temperatures during variable speed use.

Compatible Vehicles and Applications

This HVAC blower motor is compatible with several Lexus and Toyota models, specifically designed to meet the climate control needs of:

• Lexus RX330
• Toyota Camry
• Toyota Sienna
• Toyota Solara

Part number PM9199 ensures a precise fit and function for these vehicles, maintaining factory performance standards.

Common Issues Addressed by the PM9199 Blower Motor

• Intermittent or no airflow from the HVAC system
• Unusual noises or vibrations from the blower motor area
• Inconsistent blower speeds or failure to adjust fan speed
• Overheating of the blower motor causing system shutdown
• Electrical connection problems due to worn terminals or connectors

Installation Notes and Tips

Installation of the Continental PM9199 blower motor requires removal of the existing motor from the HVAC housing. Ensure the flange-mounted bolts align with the 6.687-inch bolt pattern for proper fitment. The plug-in connector with female gender terminals should be securely connected to the vehicle’s wiring harness. Note that mounting hardware and gaskets are not included, so retain original components or source replacements as needed. Verify the counterclockwise shaft rotation matches the blower wheel orientation before final assembly.

Quality Assurance and Warranty Information

Continental manufactures the PM9199 blower motor to meet OEM quality standards, using metal materials and vented motor design for durability and heat dissipation. While specific warranty details are not provided here, Continental products typically come with manufacturer-backed warranties covering defects in materials and workmanship. For warranty confirmation, refer to Continental’s official documentation or contact authorized service providers.
