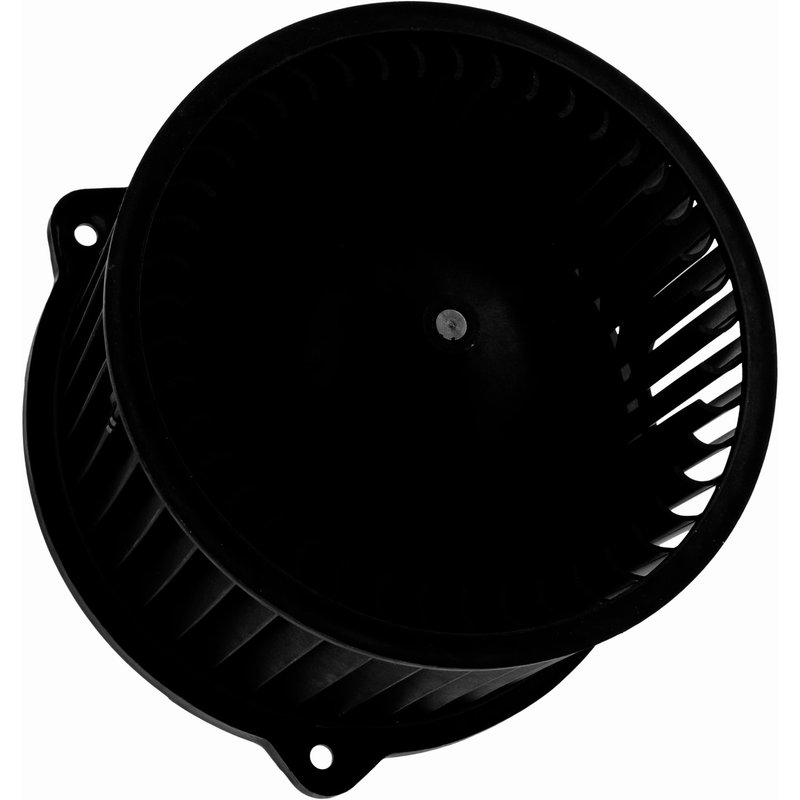

Continental PM9383 HVAC Blower Motor - Front

Overview of Continental HVAC Blower Motor PM9383

The Continental HVAC Blower Motor PM9383 is designed for reliable climate control in select Genesis, Hyundai, and Kia vehicles. This metal motor offers variable speed operation and a flange-mounted design to ensure consistent airflow and fitment.

• Durable metal construction for long-lasting performance
• 12-volt operation compatible with vehicle electrical systems
• Flange-mounted with a 6-inch wheel diameter and vented casing
• Counterclockwise shaft rotation with a 2.25-inch shaft length
• Plug-in connector with blade terminals for easy installation
• Includes cage wheel for efficient air movement
• Compatible with multiple Genesis, Hyundai, and Kia models

Technical Details and Specifications

The PM9383 blower motor features a 3-inch motor diameter and a length of 3.125 inches, making it compact yet effective for HVAC applications. Its single shaft design has a 0.312-inch diameter shaft, rotating counterclockwise at the shaft end. The motor is vented to prevent overheating during operation and supports variable speeds to adjust airflow as needed. The flange-mounted method ensures secure attachment within the HVAC system, although mounting hardware is not included. The motor uses a female plug connector with two blade terminals, facilitating a plug-in installation without hardwiring.

Compatible Vehicles and Applications

This HVAC blower motor is compatible with a range of Genesis, Hyundai, and Kia vehicles, including the Genesis G70, G80, G90, and GV80; Hyundai Azera, Elantra (including Coupe and GT), Equus, Forte (including Forte5 and Forte Koup), and Kia Cadenza, K900, Optima, and Stinger. The PM9383 is designed to replace factory blower motors in these models, restoring proper airflow and climate control functionality.

Common Issues Addressed by the PM9383 Blower Motor

• Inconsistent or weak airflow from the HVAC system
• Blower motor noise or unusual sounds during operation
• Failure of blower motor to operate at variable speeds
• Overheating or motor stalling due to venting issues
• Electrical connection problems with worn or damaged terminals

Installation Notes and Tips

Installation of the Continental PM9383 blower motor requires removal of the existing motor from the HVAC housing. The flange-mounted design allows for straightforward alignment, but note that mounting hardware is not included and may need to be reused or sourced separately. The plug-in connector with blade terminals simplifies electrical connections; ensure the female connector on the vehicle harness matches the motor’s male terminals. Verify the counterclockwise shaft rotation and shaft length (2.25 inches) match the original motor specifications for proper fit and function.

Quality Assurance and Warranty

Continental manufactures the PM9383 blower motor to meet OEM standards for durability and performance. The metal construction and vented design contribute to reliable operation under typical HVAC system conditions. While specific warranty details are not provided here, Continental products generally come with manufacturer-backed warranties to cover defects in materials and workmanship. Consult product documentation or supplier information for exact warranty terms.
