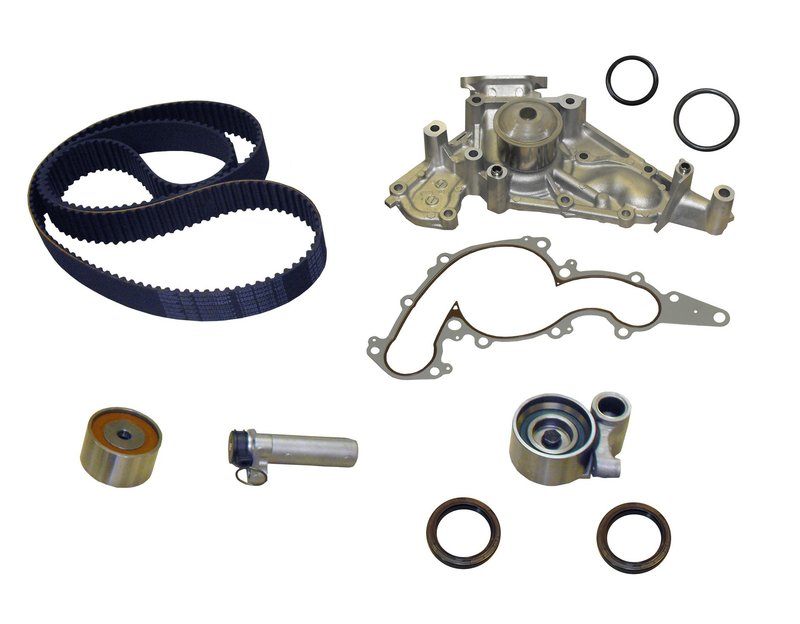

Continental PP190LK1 Engine Timing Belt Kit with Water Pump

Continental Timing Belt Kit with Water Pump

Continental Pro Series Plus PP190LK1 is an engine timing belt kit with water pump built for select Lexus V8 applications. It combines OEM-quality timing components, seals, idlers, a mechanical tensioner, and an OEM hydraulic tensioner where applicable for service work on interference engines.

Compatible With 1990-1997 Lexus LS400 and 1992-1997 Lexus SC400, this kit supports timing system renewal on vehicles that require precise camshaft and crankshaft synchronization. The Continental PP190LK1 is a direct-fit service solution for timing belt and water pump maintenance.

Key Features

• Engine timing belt kit with water pump for select Lexus applications
• Includes timing belt, idler pulley, tensioner components, water pump, and seals
• Timing marks included for installation reference
• Curvilinear belt tooth profile with 209 teeth
• Water pump uses a plastic impeller
• Viton seal material for sealing components
• Pro Series Plus line focused on complete timing service coverage

Product Details

Continental Pro Series Plus is a timing service line that brings together the major wear items commonly replaced during a timing belt job. PP190LK1 is built around OEM-quality components and is specified for interference engine applications in the Lexus LS400 and Lexus SC400. The kit includes the belt, water pump, idler pulley, tensioner components, and seals needed for a thorough timing system refresh. This part cross-references Toyota/Lexus OE numbers such as 13503-50010 and 16100-59275 for the same application.

Common Problems This Kit Helps Address

• Worn or cracked timing belt material
• Noisy or failing idler pulley and tensioner components
• Coolant leakage from an aging water pump
• Oil seepage at timing-related seals
• Timing service overdue at the 60,000-mile interval

Installation Notes

Use this kit during scheduled timing belt service on 1990-1997 Lexus LS400 and 1992-1997 Lexus SC400 models. Verify timing marks before removal and follow factory service procedures for belt alignment, tensioner setup, and water pump installation. Because this is an interference engine application, correct timing and tension are critical during reassembly.

Quality Assurance

Continental Pro Series Plus timing kits are assembled with OEM-quality components for timing system service. PP190LK1 is designed for direct replacement use in the listed Lexus applications and follows the manufacturer’s recommended 60,000-mile timing kit change interval.
