Continental PP236LK1-WH Engine Timing Belt Kit with Water Pump

Continental Pro Series Plus Timing Belt Kit

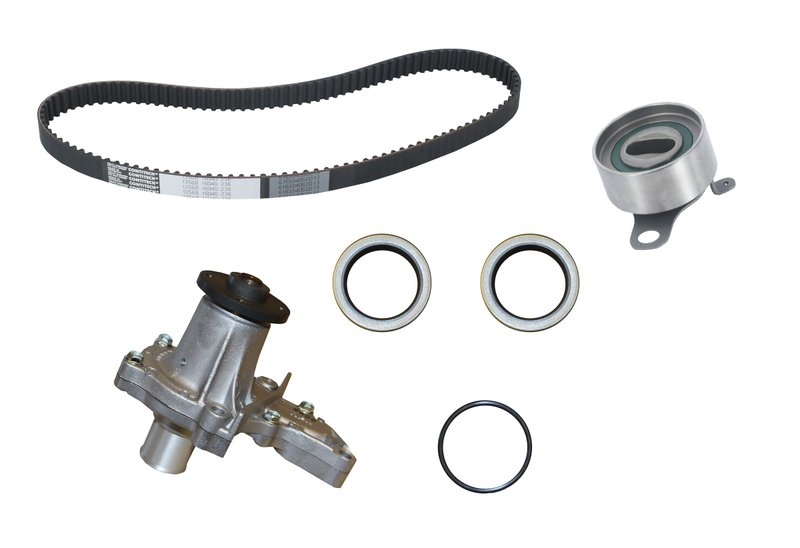

Continental Pro Series Plus PP236LK1-WH is an engine timing belt kit with water pump for select Toyota Corolla and Geo Prizm applications. It combines OEM-quality service components in one package, including a timing belt, water pump, seals, idlers, a mechanical tensioner, and an OEM hydraulic tensioner where applicable.

Built for 1993-1997 Toyota Corolla and 1993-1997 Geo Prizm timing belt service, this kit is organized for complete front-of-engine maintenance. The WH suffix identifies a kit with a water pump housing, and the metal impeller water pump supports cooling system service during timing component replacement.

Key Features

• Part number PP236LK1-WH from Continental Pro Series Plus
• Engine timing belt kit with water pump for Toyota Corolla and Geo Prizm
• Includes timing belt, water pump, seals, idlers, and tensioner components where applicable
• Metal impeller water pump construction
• Curvilinear timing belt tooth profile
• 117-tooth belt with 0.83 in top width and 36.85 in length
• Includes camshaft seals for service coverage
• WH suffix indicates a kit with water pump housing

Detailed Description

Continental Pro Series Plus PP236LK1-WH is a timing belt service kit engineered for 1993-1997 Toyota Corolla and 1993-1997 Geo Prizm models. It is built around OEM-quality replacement components and is suited for timing belt replacement jobs where the water pump and related sealing components are serviced at the same time. The kit includes a curvilinear timing belt, a metal impeller water pump, seals, and tensioner-related components as specified by the application.

Continental Pro Series Plus is the brand line focused on complete engine service kits that consolidate the major wear items involved in timing system maintenance. For Toyota Corolla and Geo Prizm owners searching for a timing belt kit with water pump, PP236LK1-WH provides a direct service solution for the front engine timing system.

This part cross-references Toyota 13505-15050 and 13568-16040 for the same application.

What It Helps Address

• Timing belt wear, cracking, or age-related replacement needs
• Water pump leakage or cooling system service during timing maintenance
• Seal seepage at camshaft seal locations
• Tensioner and idler service during a timing belt overhaul
• Noise or drivability concerns tied to worn timing components

Installation Notes and Tips

Verify engine code and application details before installation on 1993-1997 Toyota Corolla or 1993-1997 Geo Prizm models. Replace timing components with the engine properly timed and follow factory service procedures for belt alignment, tensioner setup, and water pump installation. Because this kit does not list timing marks, use the correct service references and engine timing specifications during assembly.

Inspect related pulleys, seals, and cooling system surfaces before reassembly. Confirm gasket and seal seating, then rotate the engine by hand and recheck timing alignment after installation.

Quality Assurance

Continental Pro Series Plus kits are assembled with OEM-quality components for timing system service. PP236LK1-WH is specified with a metal impeller water pump and application-matched sealing and tensioning components for the listed Toyota Corolla and Geo Prizm fitments.
