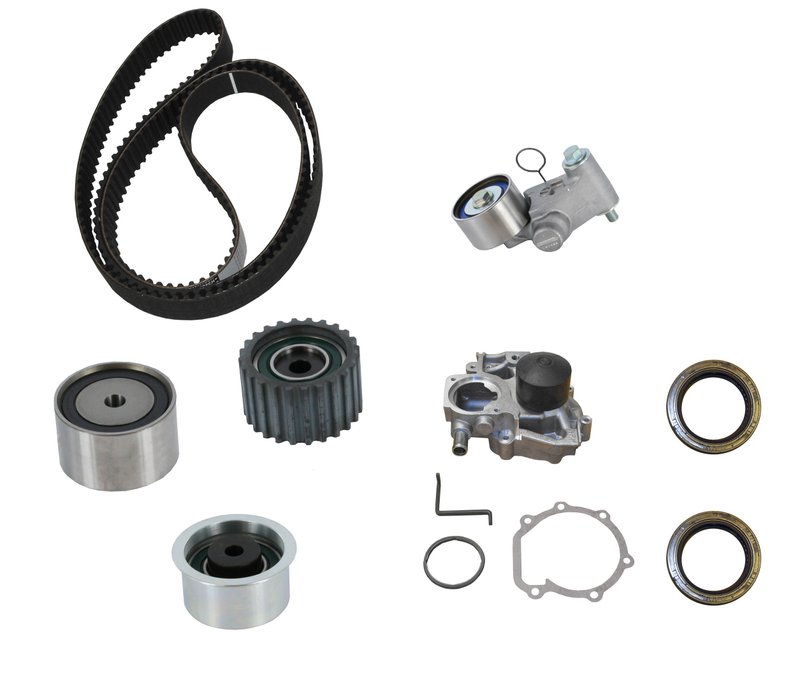

Continental PP304LK6 Engine Timing Belt Kit with Water Pump

Engine Timing Belt Kit With Water Pump

Continental Pro Series Plus PP304LK6 is an engine timing belt kit with water pump built for Subaru applications that require OEM-quality timing components. It combines the timing belt, water pump, seals, idlers, and tensioner components needed for a complete timing service on select Subaru Forester, Legacy, Outback, and Impreza models.

For Subaru Forester, Subaru Legacy, Subaru Outback, and Subaru Impreza timing belt service, this kit is organized around the parts most commonly replaced together. The Continental PP304LK6 package is a fitment-based solution for interference-engine maintenance where timing accuracy and cooling system reliability matter.

Key Features

• Continental Pro Series Plus timing belt kit with water pump
• OEM-quality components for timing service
• Includes timing belt, water pump, seals, idlers, and tensioner components where applicable
• Timing marks included
• Metal impeller water pump
• Mod-curvilinear belt tooth design
• Viton seal material
• Hydraulic tensioner included where applicable
• Timing kit change interval listed at 60,000 miles
• Cross-reference: Gates TCKWP304A

Product Details

Continental’s Pro Series Plus line is positioned as a complete timing service solution for vehicles that need coordinated replacement of belt-drive and cooling-system wear items. PP304LK6 includes a timing belt with 223 teeth, a 1.06-inch top width, and timing marks for setup. The water pump uses a metal impeller, and the kit also includes seals with Viton material for the camshaft seal applications listed in the product data. This part number is commonly searched as Continental PP304LK6 timing belt kit with water pump for Subaru timing service.

Compatible With 2012 Subaru Forester, 2010-2012 Subaru Legacy, 2012 Subaru Outback, 2009-2010 Subaru Outback, 2011 Subaru Forester, 2011 Subaru Outback, 2006-2010 Subaru Forester, and 2006-2009 Subaru Impreza. This part cross-references Gates TCKWP304A for the same application. Search terms such as Subaru Forester timing belt kit with water pump, Subaru Legacy timing belt service kit, and Subaru Impreza interference engine timing kit all align with this application coverage. The part number PP304LK6 is also used when sourcing a Subaru timing belt and water pump kit by exact reference.

Common Repair Uses

• Replacing a worn or noisy timing belt during scheduled maintenance
• Addressing coolant leaks from the water pump area
• Correcting timing noise from aging idlers or tensioner components
• Restoring proper engine timing on interference-engine Subaru applications
• Servicing camshaft seal leakage found during timing belt removal

Installation Notes

Verify engine code and vehicle application before installation, especially on 2011 Subaru Forester models noted as excluding the FB25B engine. Follow factory timing procedures, align the timing marks, and inspect related pulleys and sealing surfaces before assembly. Because this is a timing service kit, careful belt routing and tensioner setup are important for proper engine operation.

Quality Assurance

Continental Pro Series Plus components are built as OEM-quality replacement parts for timing service. The kit configuration reflects the manufacturer’s application-specific coverage, including the water pump, belt, seals, and tensioner components listed for the supported Subaru models. Part number PP304LK6 is cataloged for direct application matching on the vehicles shown above.
