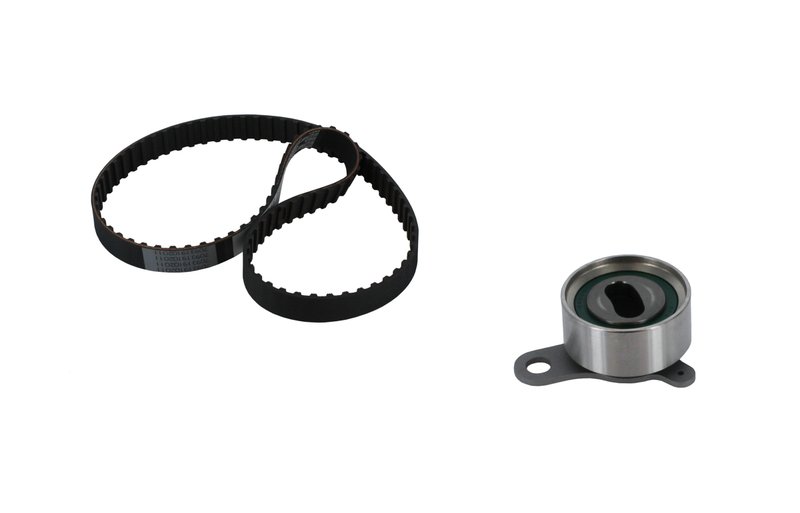

Continental TB036K1 Engine Timing Belt Kit

Continental TB036K1 Timing Belt Kit

Continental TB036K1 is an engine timing belt kit built for specific Toyota and Geo applications that require a timing belt service without a water pump. It combines OEM-quality timing components in one service kit for 1988-1992 Toyota Corolla, 1990-1992 Toyota Celica, and 1989-1992 Geo Prizm applications.

Key Features

• Engine timing belt kit for valve train service
• Includes timing belt and tensioner components
• OEM-quality component selection from Continental Standard Kit
• Trapezoidal tooth profile
• Timing belt dimensions: 0.75 in top width and 35.25 in length
• Timing belt change interval listed at 60,000 miles
• Compatible with select Toyota Corolla, Toyota Celica, and Geo Prizm applications

Standard Kit Product Line

Continental Standard Kit timing components are organized for routine engine service where the belt and related tensioning parts are replaced together. TB036K1 follows that approach with a timing belt and tensioner included for the listed applications, helping simplify parts selection for a timing belt replacement on Toyota Corolla, Toyota Celica, and Geo Prizm engines.

Detailed Description

TB036K1 is an engine timing belt kit from Continental for interference-engine applications that require accurate camshaft and crankshaft synchronization. This kit is listed for 1988-1992 Toyota Corolla, 1990-1992 Toyota Celica, and 1989-1992 Geo Prizm models, and the notes specify timing belt service without a water pump. The part number TB036K1 is also referenced under Dayco 95036K1 and Gates TCK036 for the same application.

The kit uses a single timing belt with a trapezoidal tooth design and includes a tensioner component. Continental identifies a 60,000-mile timing belt change interval for this kit, making it a practical choice for scheduled maintenance on the covered Toyota and Geo engines.

What This Timing Belt Kit Helps Address

• Worn, cracked, or stretched timing belt material
• Noise or irregular operation from aging belt drive components
• Loss of valve timing accuracy from belt wear
• Service needs on interference-engine timing systems
• Scheduled timing belt replacement at the recommended interval

Installation Notes and Tips

Verify engine code and vehicle application before installation, especially on 1988-1992 Toyota Corolla, 1990-1992 Toyota Celica, and 1989-1992 Geo Prizm models. This kit does not include a water pump, so confirm whether separate cooling system service is being performed at the same time. Follow factory timing marks and service procedures for belt alignment, tensioner setup, and final engine rotation checks.

Quality Assurance

Continental supplies OEM-quality timing components in this Standard Kit configuration. TB036K1 is built around the listed service parts for the specified applications and is cross-referenced to Dayco 95036K1 and Gates TCK036 for application matching.
