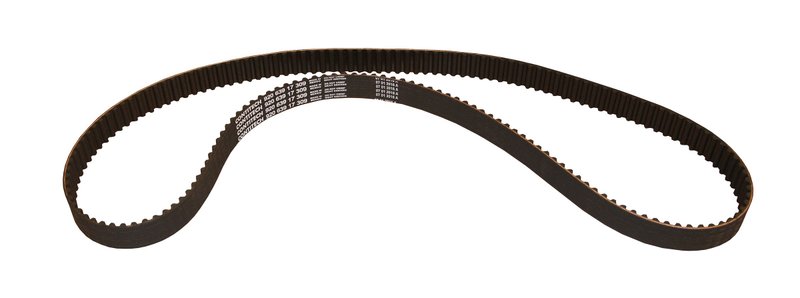

Continental TB309 Engine Timing Belt

Overview of Continental Import Engine Timing Belt TB309

The Continental Import Engine Timing Belt TB309 is designed specifically for Suzuki Forenza models, providing reliable timing belt performance. Engineered with a curvilinear tooth profile and precise dimensions, this timing belt ensures smooth operation of the valve train components.

• Curvilinear tooth type for efficient power transmission
• 169 belt teeth for accurate timing engagement
• 0.94 inch belt top width for optimal fit
• 53.23 inch belt length tailored for Suzuki Forenza engines
• Does not include timing marks

Continental Import Product Line Details

The Import product line by Continental focuses on delivering timing components tailored for imported vehicles such as the Suzuki Forenza. This line emphasizes compatibility and precision engineering to meet the specific requirements of import engine designs, ensuring proper valve train synchronization and durability.

Technical Description and Specifications

The TB309 timing belt features a curvilinear tooth profile, which enhances the meshing with sprockets and reduces noise and wear during engine operation. With 169 teeth, the belt maintains precise timing between the crankshaft and camshaft, critical for valve train performance. The belt’s top width of 0.94 inches and length of 53.23 inches are engineered to fit the Suzuki Forenza’s engine configuration without the need for timing marks, relying on exact tooth count and belt dimensions for installation accuracy.

Applications and Problem Solving

• Replaces worn or damaged timing belts on Suzuki Forenza engines
• Prevents engine misfires caused by timing belt slippage
• Addresses noise issues related to worn belt teeth
• Helps avoid engine damage from timing belt failure
• Ensures proper valve timing for optimal engine performance

Installation Notes and Tips

When installing the Continental TB309 timing belt, ensure the engine is at top dead center (TDC) before removal of the old belt. Since this belt does not have timing marks, carefully count the teeth and align the belt according to the manufacturer’s service manual for the Suzuki Forenza. Inspect pulleys and tensioners for wear and replace if necessary to maintain proper belt tension and longevity.

Quality Assurance and Warranty

Continental manufactures the TB309 timing belt to meet strict quality standards for durability and performance. While specific warranty details are not provided, Continental’s Import line is known for consistent manufacturing quality, supporting reliable engine timing and valve train operation in Suzuki Forenza vehicles.
