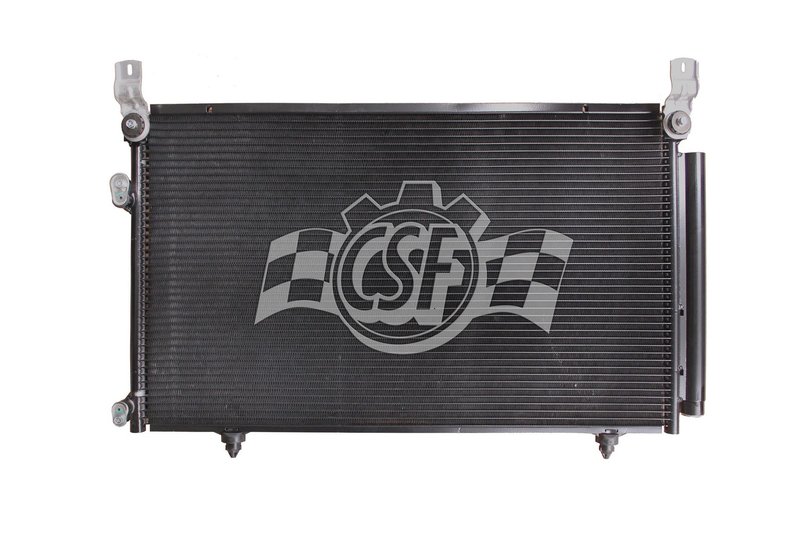

CSF 10334 A/C Condenser

Overview of CSF A/C Condenser for Toyota Highlander

The CSF A/C Condenser part number 10334 is designed specifically for Toyota Highlander models, providing reliable cooling performance. Engineered with a parallel flow construction, this condenser supports efficient heat exchange to maintain optimal air conditioning function.

• Parallel flow construction for improved heat dissipation
• Core dimensions: 5/8 inch thickness, 17 1/3 inch width, 27 2/3 inch length
• Box dimensions: 5 1/8 inch height, 33 1/4 inch length, 22 2/3 inch width
• Lightweight design at 10 1/2 lbs for easier handling
• Block fitting inlet and outlet tubes for secure connections
• Includes sub cool design technology for enhanced cooling efficiency
• Non-hazardous material composition

Details on the Aluminum Parallel Flow/Aluminum Dual Flow Product Line

The CSF Aluminum Parallel Flow/Aluminum Dual Flow product line focuses on advanced aluminum construction to optimize thermal performance and durability. This line incorporates parallel flow technology, which increases the condenser's ability to dissipate heat effectively while maintaining a compact core size. The 10334 condenser benefits from this design approach, ensuring compatibility and performance tailored for the Toyota Highlander.

Product Specifications and Features

The CSF A/C Condenser 10334 features a core thickness of 5/8 inch, with a width of 17 1/3 inches and a length of 27 2/3 inches, providing a balanced surface area for heat exchange. The box dimensions support easy installation and protection during shipping. Both inlet and outlet tubes utilize block fittings, which help maintain secure and leak-free connections within the vehicle's HVAC system. The inclusion of sub cool design technology enhances the condenser's ability to reduce refrigerant temperature, improving overall air conditioning efficiency.

Common Applications and Problem Solving

• Replacement for faulty or leaking A/C condensers in Toyota Highlander vehicles
• Restores proper cooling performance in air conditioning systems
• Addresses issues related to inefficient heat dissipation
• Solves problems caused by damaged or corroded condenser cores
• Improves refrigerant flow and system pressure stability

Installation Notes and Tips

When installing the CSF A/C Condenser 10334, ensure the vehicle is compatible with the Toyota Highlander model specifications. Verify that the block fitting inlet and outlet tubes align correctly with the existing HVAC lines. It is recommended to inspect and replace any worn seals or O-rings during installation to prevent leaks. Proper handling of the condenser is advised to avoid damage to the aluminum core and fins.

Quality Assurance and Warranty

CSF manufactures the 10334 A/C Condenser with high-quality aluminum materials and advanced construction techniques to meet OEM standards. This part is free from hazardous materials and includes sub cool design technology for enhanced performance. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage terms.
