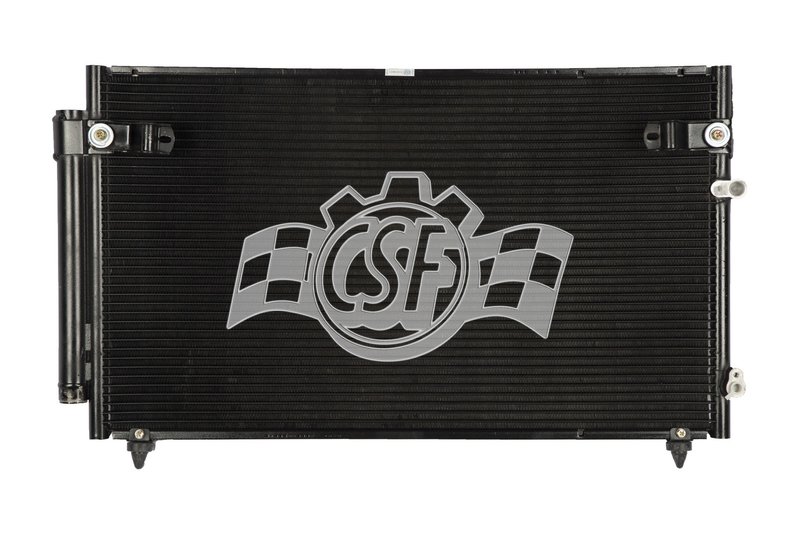

CSF 10407 A/C Condenser

Overview of CSF Aluminum Parallel Flow A/C Condenser 10407

The CSF Aluminum Parallel Flow A/C Condenser, part number 10407, is designed specifically for Lexus GS300, GS400, and GS430 models. This condenser features a parallel flow construction that enhances heat dissipation and cooling efficiency for your vehicle's air conditioning system.

• Parallel flow core construction for improved cooling
• Core thickness of 5/8 inch for optimal airflow
• Core dimensions: 16 3/7 inches wide by 27 1/4 inches long
• Box dimensions: 33 inches length, 21 2/9 inches height, 6 2/7 inches width
• Lightweight design at 12 lbs for easier installation
• Block fitting inlet and outlet tubes for secure connections
• Includes sub cool design technology for enhanced performance
• Non-hazardous material compliant

Detailed Product Description

The CSF Aluminum Parallel Flow A/C Condenser 10407 is engineered with a parallel flow core, which allows refrigerant to flow through multiple flat tubes in parallel, increasing heat exchange efficiency compared to traditional designs. The core thickness of 5/8 inch balances durability and airflow, while the core width and length (16 3/7 inches by 27 1/4 inches) provide ample surface area for effective cooling. The condenser is housed in a compact box measuring 33 inches in length, 21 2/9 inches in height, and 6 2/7 inches in width, weighing just 12 pounds to facilitate handling during installation.

This part is equipped with block fitting inlet and outlet tubes, ensuring a secure and leak-resistant connection to the vehicle’s A/C system. Additionally, it incorporates sub cool design technology, which helps improve the refrigerant cooling process, contributing to better overall air conditioning performance in Lexus GS300, GS400, and GS430 vehicles.

About the Aluminum Parallel Flow Product Line

The Aluminum Parallel Flow line from CSF focuses on advanced condenser technology that uses parallel flow construction to optimize heat transfer and refrigerant flow. This design reduces pressure drop and increases cooling efficiency, making it suitable for vehicles requiring reliable and efficient A/C condensers. The 10407 part number is a representative model within this line, tailored for specific Lexus GS series vehicles.

Common Applications and Issues Addressed

• Replacement for faulty or leaking A/C condensers in Lexus GS300, GS400, and GS430
• Resolves reduced cooling performance due to clogged or damaged condenser cores
• Addresses refrigerant leaks caused by corrosion or physical damage
• Improves air conditioning efficiency in vehicles with aging or worn condensers
• Helps restore proper refrigerant flow and pressure balance in the A/C system

Installation Notes and Tips

• Ensure compatibility with Lexus GS300, GS400, and GS430 models before installation
• Inspect and replace A/C system O-rings and seals to prevent leaks
• Flush the A/C system to remove debris before installing the new condenser
• Handle the condenser carefully to avoid damage to the fins and tubes
• Verify block fitting connections are secure and leak-free after installation

Quality Assurance and Warranty

CSF manufactures the Aluminum Parallel Flow A/C Condenser 10407 to meet OEM specifications for fit, form, and function. The part is constructed from durable aluminum materials and undergoes quality control testing to ensure reliable performance. This condenser is supplied without hazardous materials and includes sub cool design technology to enhance system efficiency. Warranty details should be confirmed with the distributor or installer, as they may vary.
