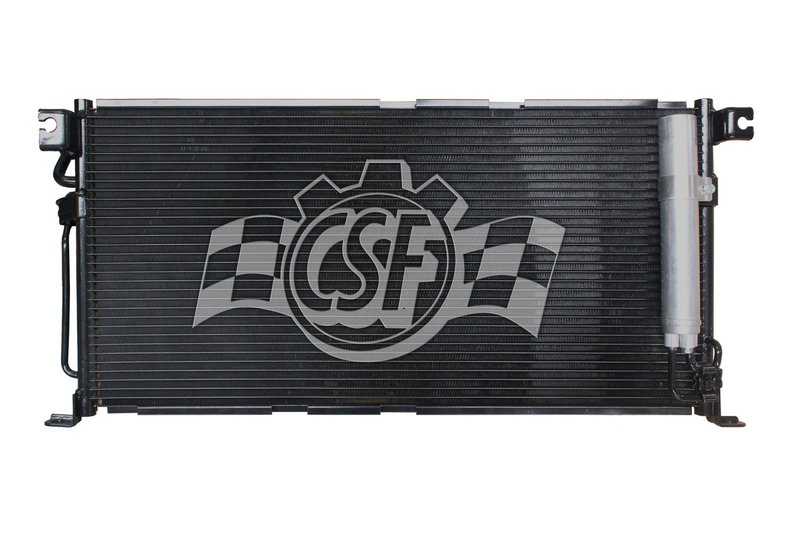

CSF 10415 A/C Condenser

Overview of CSF Aluminum Parallel Flow A/C Condenser 10415

The CSF Aluminum Parallel Flow A/C Condenser, part number 10415, is designed specifically for Mitsubishi Lancer models. This condenser features a parallel flow construction that enhances heat dissipation and cooling efficiency for your vehicle's air conditioning system.

• Parallel flow construction for improved cooling performance
• Core thickness of 5/8 inches for optimal airflow
• Core dimensions: 13 7/9 inches width by 27 4/9 inches length
• Box dimensions: 7 inches height, 19 inches width, and 34 4/9 inches length
• Includes built-in drier for moisture control
• Block fitting inlet and outlet tubes for secure connections
• Lightweight design at approximately 10 5/7 pounds
• Non-hazardous material composition

Details on the Aluminum Parallel Flow Product Line

The Aluminum Parallel Flow line by CSF focuses on advanced parallel flow technology, which allows refrigerant to pass through multiple flat tubes simultaneously. This design increases heat exchange efficiency compared to traditional tube-and-fin condensers. The 10415 condenser benefits from this technology, providing reliable cooling performance tailored for the Mitsubishi Lancer's HVAC system requirements.

Product Specifications and Features

This A/C condenser features a core thickness of 5/8 inches, balancing compact size with effective heat transfer. The core width measures 13 7/9 inches and the length is 27 4/9 inches, dimensions that fit precisely within the Mitsubishi Lancer's engine bay. The condenser is supplied with a built-in drier, which helps remove moisture from the refrigerant, protecting the system from corrosion and damage. Both the inlet and outlet tubes use block fittings, ensuring secure and leak-resistant connections during installation.

Common Applications and Problem Solving

• Replaces faulty or leaking A/C condensers in Mitsubishi Lancer vehicles
• Restores proper air conditioning cooling efficiency
• Addresses refrigerant leaks caused by damaged or corroded cores
• Improves system reliability by removing moisture with the built-in drier
• Supports HVAC system performance after collision or wear

Installation Notes and Tips

When installing the CSF A/C Condenser 10415, ensure compatibility with the Mitsubishi Lancer model year and HVAC system specifications. The block fitting inlet and outlet tubes require proper alignment and secure attachment to prevent refrigerant leaks. It is recommended to evacuate and recharge the A/C system following installation to maintain optimal performance. Handle the condenser carefully to avoid damage to the aluminum core and fittings.

Quality Assurance and Warranty

CSF manufactures the Aluminum Parallel Flow A/C Condenser 10415 with durable aluminum materials and precision construction. The product is free from hazardous materials and designed to meet OEM fitment standards for the Mitsubishi Lancer. While specific warranty details are not provided here, CSF products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
