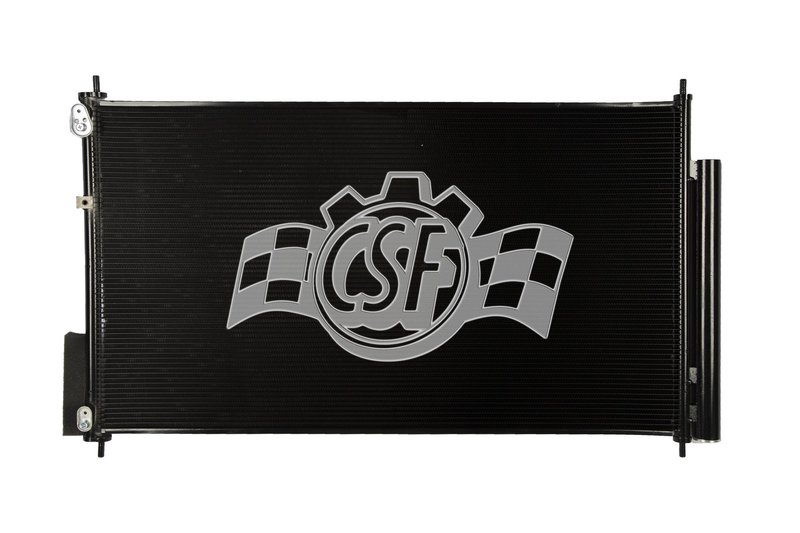

CSF 10435 A/C Condenser

Overview of CSF A/C Condenser for Honda Odyssey

The CSF A/C Condenser part number 10435 is designed specifically for Honda Odyssey models, providing reliable cooling performance. This condenser features a parallel flow construction and incorporates sub cool design technology to enhance efficiency.

• Parallel flow aluminum construction for efficient heat exchange
• Core thickness of 5/8 inch for optimal cooling capacity
• Core dimensions: 17 1/4 inches width by 29 3/4 inches length
• Box dimensions: 22 1/4 inches height, 36 3/5 inches length, 3 1/2 inches width
• Lightweight design at approximately 10.9 lbs
• Block fitting inlet and outlet tubes for secure connections
• Non-hazardous material compliant

Details on the Aluminum Parallel Flow -- Supercedes CSF 10452 Product Line

This condenser is part of the Aluminum Parallel Flow -- Supercedes CSF 10452 product line, which focuses on parallel flow technology to improve heat dissipation and system efficiency. The design upgrades from the previous CSF 10452 model ensure compatibility and enhanced performance for Honda Odyssey vehicles requiring a direct replacement A/C condenser.

Product Description and Specifications

The CSF 10435 A/C condenser is engineered with a 5/8 inch thick aluminum core that measures 17 1/4 inches wide and 29 3/4 inches long, providing a substantial surface area for effective refrigerant cooling. The parallel flow construction allows for improved airflow and heat transfer compared to traditional designs. The unit comes with block fitting inlet and outlet tubes, ensuring a secure and leak-resistant connection to the vehicle’s A/C system. Weighing just under 11 pounds, this condenser balances durability with ease of installation.

Common Applications and Issues Addressed

• Replacement for leaking or damaged A/C condensers in Honda Odyssey models
• Restores proper refrigerant flow and cooling efficiency
• Resolves overheating issues related to inefficient heat exchange
• Addresses reduced A/C performance due to clogged or corroded condenser cores
• Prevents compressor damage caused by inadequate condenser function

Installation Notes and Tips

When installing the CSF 10435 condenser, ensure the vehicle’s A/C system is fully evacuated and depressurized before removal of the old condenser. Verify that the block fitting inlet and outlet tubes align correctly with the existing A/C lines on the Honda Odyssey. Use proper torque specifications on fittings to avoid leaks. It is recommended to replace the receiver/drier and inspect all hoses during installation to maintain system integrity.

Quality Assurance and Warranty

CSF A/C condensers are manufactured to meet OEM standards for fit, form, and function. The Aluminum Parallel Flow -- Supercedes CSF 10452 line incorporates sub cool design technology to enhance system performance. This part number 10435 is supplied as a non-hazardous material and undergoes quality checks to ensure durability and reliability. Warranty coverage details should be confirmed with the distributor or manufacturer.
