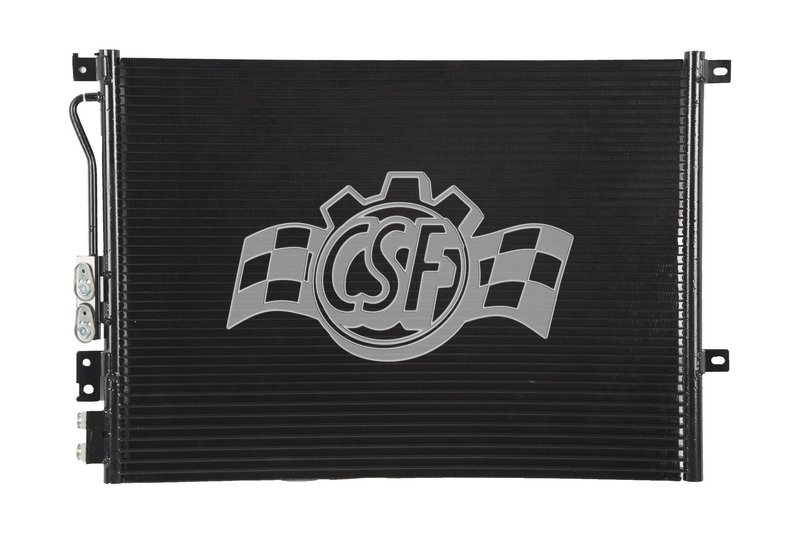

CSF 10470 A/C Condenser

Overview of CSF Aluminum Parallel Flow A/C Condenser 10470

The CSF Aluminum Parallel Flow A/C Condenser, part number 10470, is designed specifically for Jeep Commander and Grand Cherokee models. This condenser features a parallel flow construction that enhances heat dissipation and cooling efficiency for your vehicle's HVAC system.

• Parallel flow construction for improved heat exchange
• Core thickness of 5/7 inches for optimal airflow
• Core dimensions: 18 1/3 inches width by 24 1/2 inches length
• Box dimensions: 31 inches length, 22 1/4 inches width, and 3 1/7 inches height
• Lightweight design at approximately 8 6/7 pounds
• Block fitting inlet and outlet tubes for secure connections
• Non-hazardous material composition

Details on the Aluminum Parallel Flow Product Line

The Aluminum Parallel Flow line by CSF focuses on advanced condenser technology that utilizes parallel flow construction. This design allows refrigerant to flow through multiple flat tubes in parallel, increasing surface area contact and improving heat transfer efficiency. The 10470 condenser benefits from this technology, providing reliable cooling performance tailored for Jeep Commander and Grand Cherokee vehicles.

Technical Description and Specifications

The CSF 10470 A/C condenser features a core thickness of 5/7 inches, balancing airflow and cooling capacity. Its core width measures 18 1/3 inches, and the core length is 24 1/2 inches, dimensions that fit precisely within the HVAC system of compatible Jeep models. The condenser’s box dimensions ensure proper fitment and protection during installation. Both the inlet and outlet tubes use block fittings, which provide secure and leak-resistant connections to the vehicle’s refrigerant lines. The condenser is constructed from aluminum, contributing to its lightweight design at just under 9 pounds, which helps reduce overall vehicle weight without compromising durability.

Compatible Vehicles and Common Applications

• Replacement condenser for Jeep Commander A/C systems
• Replacement condenser for Jeep Grand Cherokee A/C systems
• Solves issues related to inefficient cooling or refrigerant leaks
• Addresses problems with overheating of the A/C system
• Restores proper refrigerant flow and pressure in the HVAC circuit

Installation Notes and Tips

When installing the CSF 10470 A/C condenser, ensure the vehicle is compatible with the specified fitment for Jeep Commander and Grand Cherokee models. Verify that the block fitting inlet and outlet tubes align correctly with existing refrigerant lines. It is recommended to inspect and replace any worn or damaged O-rings and seals during installation to prevent leaks. Proper handling of the aluminum core is essential to avoid damage. Professional installation is advised to maintain system integrity and performance.

Quality Assurance and Warranty Information

CSF manufactures the 10470 A/C condenser with high-quality aluminum materials and precise construction standards. The product is free from hazardous materials and designed to meet OEM specifications for Jeep vehicles. While specific warranty details are not provided here, CSF products typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
