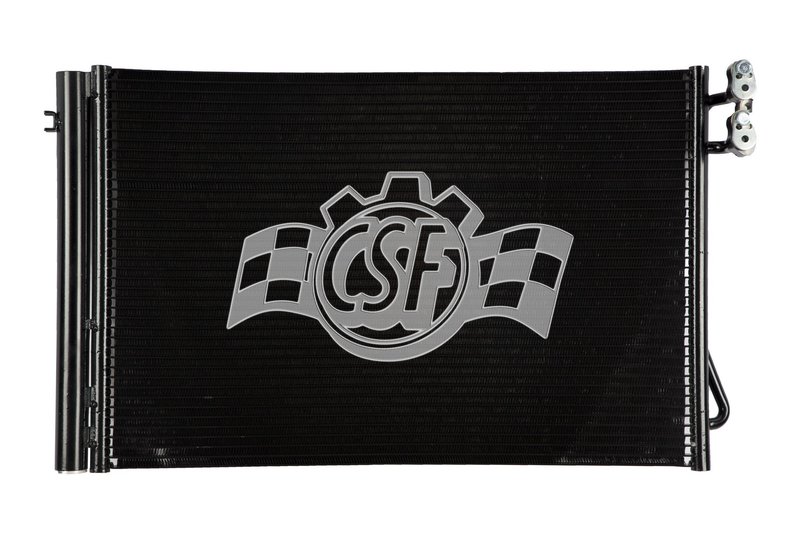

CSF 10517 A/C Condenser

Overview of CSF Aluminum Parallel Flow A/C Condenser 10517

The CSF Aluminum Parallel Flow A/C Condenser 10517 is engineered for efficient cooling performance in select BMW models. Designed with a parallel flow construction and sub cool technology, this condenser supports optimal air conditioning operation in vehicles such as the BMW 328i and M3.

• Parallel flow aluminum construction for improved heat dissipation
• Core thickness of 5/8 inch for compact yet effective cooling
• Core dimensions: 16 1/7 inches width by 23 6/7 inches length
• Box dimensions: 30 2/3 inches length, 19 3/5 inches height, 5 1/8 inches width
• Lightweight design at approximately 9 1/6 pounds
• Block fitting inlet and outlet tubes for secure connections
• Incorporates sub cool design technology for enhanced refrigerant efficiency
• Compatible with multiple BMW models including 128i, 323i, 325i, 328i xDrive, 330xi, X1, Z4, and M3

Details on the Aluminum Parallel Flow Product Line

The Aluminum Parallel Flow line by CSF features condensers constructed with parallel flow technology, which allows refrigerant to flow through multiple flat tubes in parallel. This design improves heat exchange efficiency and reduces pressure drop compared to traditional tube-and-fin condensers. The 10517 part benefits from this technology, providing reliable cooling performance and durability for BMW vehicles requiring precise HVAC components.

Product Description and Specifications

This A/C condenser is built with a 5/8 inch thick aluminum core measuring 16 1/7 inches wide and 23 6/7 inches long, offering a balance between size and cooling capacity. The condenser’s box dimensions ensure it fits securely within the HVAC system housing. Both inlet and outlet tubes use block fittings, which provide a secure and leak-resistant connection to the vehicle’s refrigerant lines. The inclusion of sub cool design technology enhances the condenser’s ability to lower refrigerant temperature, improving overall air conditioning efficiency in BMW models such as the 330Ci and 325xi.

Common Applications and Problem Resolution

• Replacement for leaking or damaged A/C condensers in BMW 128i, 323i, and 328i xDrive
• Restores proper refrigerant flow and cooling performance in BMW 330i and M3 air conditioning systems
• Addresses reduced cooling efficiency caused by clogged or corroded condensers
• Solves issues related to refrigerant leaks at block fitting connections
• Improves HVAC system reliability in BMW X1 and Z4 models

Installation Notes and Tips

Ensure the vehicle’s refrigerant system is fully evacuated before removing the old condenser. Verify compatibility with the specific BMW model and engine variant. Handle the condenser carefully to avoid damage to the aluminum core and fittings. Properly torque block fitting connections to prevent leaks. After installation, recharge the A/C system with the correct refrigerant type and quantity as specified by the vehicle manufacturer.

Quality Assurance and Warranty

The CSF Aluminum Parallel Flow A/C Condenser 10517 is manufactured to meet OEM standards for fit and function. It is constructed from corrosion-resistant aluminum to provide durability and long service life. While specific warranty details are not provided, CSF products typically adhere to industry quality controls to ensure reliable performance in BMW HVAC systems.
