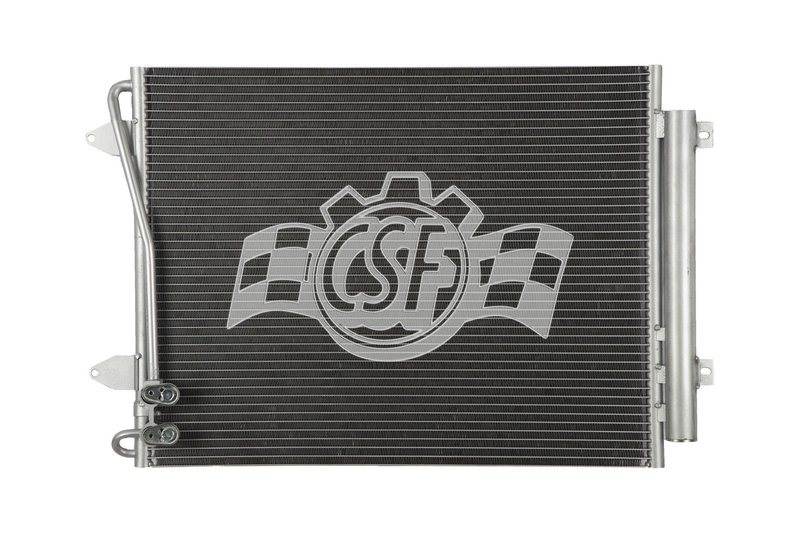

CSF 10538 A/C Condenser

Overview of CSF Aluminum Parallel Flow A/C Condenser 10538

The CSF Aluminum Parallel Flow A/C Condenser, part number 10538, is designed specifically for Volkswagen CC, Passat, and Passat CC models. This condenser features a parallel flow construction that enhances cooling efficiency and durability for your vehicle's HVAC system.

• Parallel flow construction for improved heat dissipation
• Core thickness of 5/8 inch for optimal airflow
• Core dimensions: 18 1/7 inches width by 23 1/3 inches length
• Box dimensions: 31 2/3 inches length, 21 2/3 inches width, and 4 1/2 inches height
• Lightweight design at 9 3/4 lbs for easier installation
• Block fitting inlet and outlet tubes for secure connections
• Includes sub cool design technology for enhanced performance
• Non-hazardous material composition

Details on the Aluminum Parallel Flow Product Line

The Aluminum Parallel Flow product line by CSF focuses on advanced parallel flow construction, which allows refrigerant to flow through multiple channels simultaneously. This design improves heat exchange efficiency and reduces pressure drop compared to traditional tube-and-fin condensers. The 10538 condenser benefits from this technology, providing reliable cooling performance tailored for Volkswagen vehicles.

Product Description and Specifications

This A/C condenser is engineered with a 5/8 inch thick core that measures 18 1/7 inches wide and 23 1/3 inches long, providing a substantial surface area for heat transfer. The box dimensions ensure compatibility with the designated Volkswagen models, while the lightweight 9 3/4 lbs construction facilitates handling during installation. Both the inlet and outlet tubes use block fittings, which help maintain a secure and leak-free connection within the HVAC system. Additionally, the condenser incorporates sub cool design technology, which enhances the refrigerant cooling process, contributing to overall system efficiency.

Compatible Vehicles and Common Applications

• Volkswagen CC A/C system replacement
• Volkswagen Passat HVAC condenser upgrade
• Volkswagen Passat CC air conditioning repair
• Resolving insufficient cooling or refrigerant leaks
• Replacing damaged or corroded condensers in specified VW models

Installation Notes and Tips

When installing the CSF 10538 A/C condenser, ensure the vehicle is compatible with Volkswagen CC, Passat, or Passat CC models. Properly evacuate and recharge the A/C system following manufacturer guidelines. Verify that the block fitting inlet and outlet tubes are securely connected to prevent leaks. Handle the condenser carefully to avoid damage to the aluminum core and fins. It is recommended to inspect related components such as the receiver drier and expansion valve during installation.

Quality Assurance and Warranty Information

CSF manufactures the 10538 condenser with high-quality aluminum materials and advanced parallel flow technology to meet OEM standards. This product is supplied without hazardous materials and includes sub cool design technology for enhanced performance. Warranty details should be confirmed with the distributor or installer, as coverage may vary based on purchase source and vehicle application.
