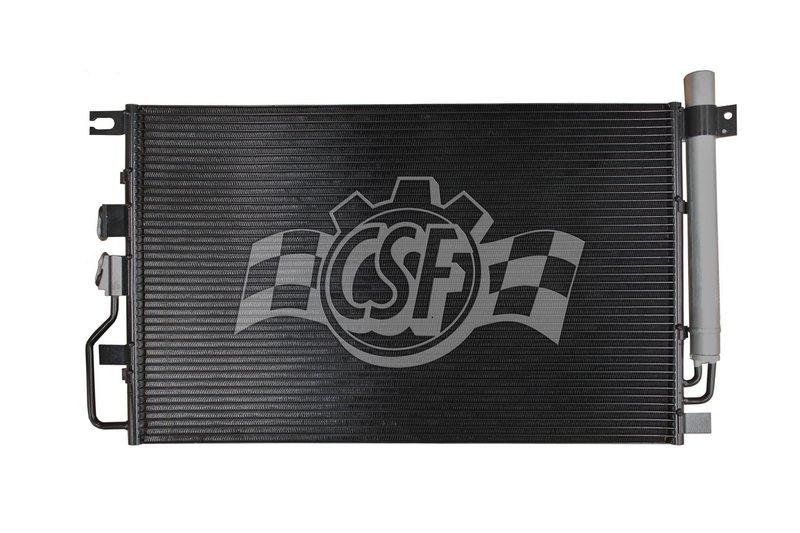

CSF 10542 A/C Condenser

Overview of CSF Aluminum Parallel Flow A/C Condenser 10542

The CSF Aluminum Parallel Flow A/C Condenser 10542 is designed specifically for Chevrolet Equinox and GMC Terrain models. This condenser features a parallel flow construction that enhances cooling efficiency and durability for your vehicle's HVAC system.

• Parallel flow construction for improved heat dissipation
• Core thickness of 5/8 inch for optimal airflow
• Core dimensions: 16 3/5 inches width by 26 1/2 inches length
• Box dimensions: 35 inches length, 19 2/3 inches width, 4 1/7 inches height
• Lightweight design at approximately 10 3/7 pounds
• Equipped with block fitting inlet and outlet tubes
• Includes built-in drier for moisture control
• Non-hazardous material compliant

Detailed Product Description

The CSF 10542 A/C condenser is engineered with a parallel flow core, which allows refrigerant to pass through multiple flat tubes simultaneously. This design increases heat exchange efficiency compared to traditional tube-and-fin condensers. The core thickness of 5/8 inch balances compact size with effective cooling capacity, while the core width and length (16 3/5 inches by 26 1/2 inches) provide ample surface area for heat dissipation. The condenser is housed in a box measuring 35 inches long, 19 2/3 inches wide, and 4 1/7 inches high, weighing just over 10 pounds, making it manageable for installation and replacement.

Both the inlet and outlet tubes use block fittings, ensuring secure and leak-resistant connections to the vehicle’s A/C system. Additionally, this condenser comes supplied with a built-in drier, which helps remove moisture and contaminants from the refrigerant, protecting the system from corrosion and damage.

About the Aluminum Parallel Flow Product Line

The Aluminum Parallel Flow line by CSF focuses on advanced condenser technology that improves thermal performance and system reliability. This product line utilizes parallel flow construction to optimize refrigerant flow and heat transfer, which is particularly beneficial for modern vehicles like the Chevrolet Equinox and GMC Terrain. The use of aluminum materials contributes to corrosion resistance and lightweight design, aligning with industry standards for HVAC components.

Compatible Vehicles and Common Applications

• Replacement condenser for Chevrolet Equinox models requiring part number 10542
• Compatible with GMC Terrain vehicles needing an efficient A/C condenser
• Addresses issues such as reduced cooling performance
• Resolves refrigerant leaks caused by damaged or corroded condensers
• Helps fix overheating of the A/C system due to inefficient heat exchange

Installation Notes and Tips

When installing the CSF 10542 A/C condenser, ensure the vehicle is properly depressurized and the refrigerant is safely recovered. Verify that the block fitting inlet and outlet tubes align correctly with the vehicle’s A/C lines to prevent leaks. It is recommended to replace the receiver drier or accumulator if not integrated, although this condenser includes a built-in drier. Inspect all seals and O-rings during installation and use manufacturer-approved refrigerant and oil to maintain system integrity.

Quality Assurance and Warranty

CSF products undergo rigorous quality control to meet OEM standards for fit, form, and function. The Aluminum Parallel Flow A/C Condenser 10542 is manufactured with corrosion-resistant aluminum and tested for durability and performance. While specific warranty details may vary, CSF typically offers coverage against defects in materials and workmanship. Consult product documentation or the supplier for exact warranty terms.
