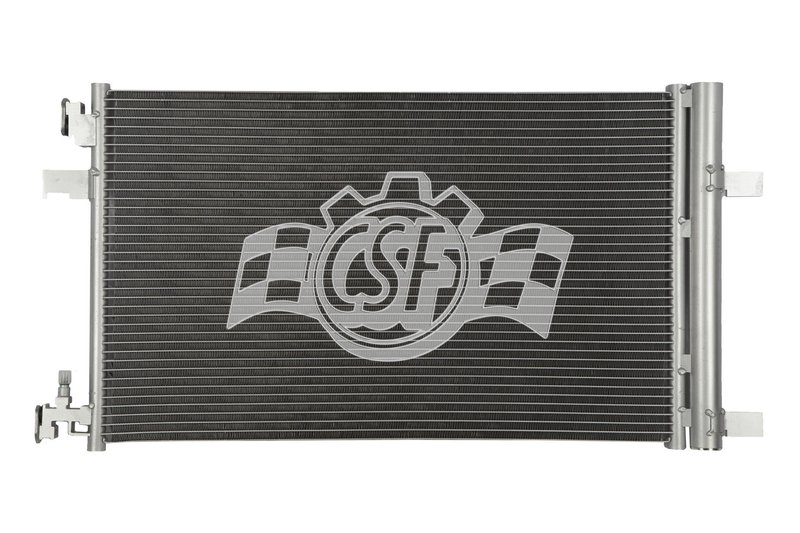

CSF 10630 A/C Condenser

Overview of CSF Aluminum Parallel Flow A/C Condenser 10630

The CSF Aluminum Parallel Flow A/C Condenser 10630 is engineered to provide reliable cooling performance for select Buick, Cadillac, and Chevrolet vehicles. Designed with a parallel flow construction and sub cool design technology, this condenser supports efficient heat exchange and system durability.

• Parallel flow construction for improved heat dissipation
• Core thickness of 5/8 inch, width 16 inches, and length 25 1/3 inches
• Box dimensions: 33 1/2 inches length, 20 1/5 inches width, 4 inches height
• Lightweight design at approximately 9.29 lbs
• Block fitting inlet and outlet tubes for secure connections
• Supplied with sub cool design technology to enhance cooling efficiency
• Non-hazardous material composition

Details on the Aluminum Parallel Flow Product Line

The Aluminum Parallel Flow line by CSF focuses on advanced condenser designs that utilize parallel flow construction to optimize refrigerant flow and heat transfer. This technology reduces pressure drop and improves overall A/C system efficiency. The 10630 condenser benefits from this design approach, making it suitable for vehicles requiring dependable cooling performance under various operating conditions.

Product Specifications and Features

This A/C condenser features a core thickness of 5/8 inch, with a core width of 16 inches and a length of 25 1/3 inches, providing ample surface area for effective heat exchange. The box dimensions ensure compatibility with the designated vehicle models, while the lightweight construction at just over 9 pounds facilitates easier handling during installation. Both the inlet and outlet tubes use block fittings, which help maintain secure and leak-free connections within the HVAC system.

Compatible Vehicles and Common Applications

• Compatible with Buick Allure, LaCrosse, Regal, and Verano models
• Fits Cadillac XTS models requiring efficient A/C condenser replacement
• Suitable for Chevrolet Cruze, Cruze Limited, Impala, Malibu, and Malibu Limited
• Addresses issues such as reduced cooling capacity, refrigerant leaks, and system overheating
• Replaces worn or damaged condensers to restore proper A/C function

Installation Notes and Tips

When installing the CSF 10630 A/C condenser, ensure the system is fully evacuated and free of contaminants before installation. Verify that the block fitting inlet and outlet tubes align correctly with the vehicle’s HVAC lines to prevent leaks. It is recommended to inspect and replace the receiver/drier or accumulator during installation to maintain system integrity. Proper torque specifications should be followed to avoid damage to the condenser or fittings.

Quality Assurance and Warranty

CSF manufactures the Aluminum Parallel Flow A/C Condenser 10630 to meet OEM standards for fit and function. The condenser is constructed from durable aluminum materials and incorporates sub cool design technology to enhance performance. This product is free from hazardous materials and is backed by CSF’s quality assurance protocols. Warranty details should be confirmed with the distributor or vehicle manufacturer.
