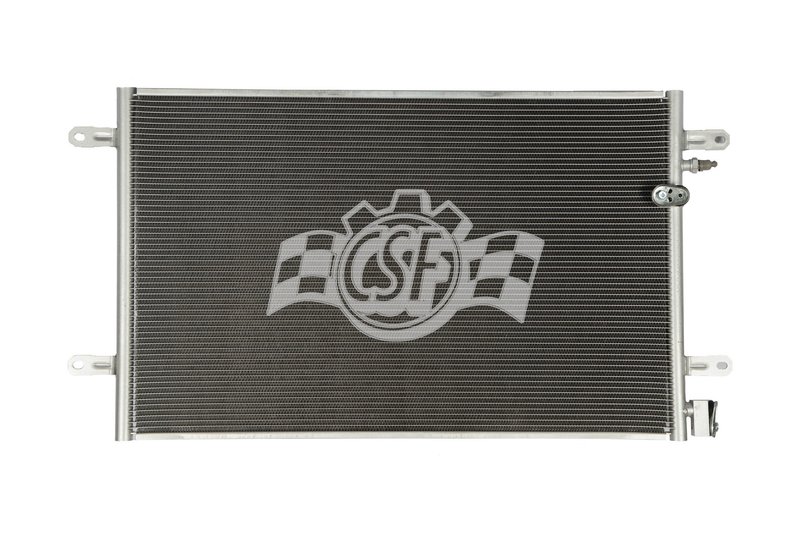

CSF 10676 A/C Condenser

Overview of CSF Aluminum Parallel Flow A/C Condenser 10676

The CSF Aluminum Parallel Flow A/C Condenser, part number 10676, is designed specifically for Audi A6 and A6 Quattro models. This condenser features a parallel flow construction that enhances cooling efficiency and durability for your vehicle's HVAC system.

• Parallel flow construction for improved heat dissipation
• Core thickness of 5/8 inch for optimal airflow
• Core dimensions: 16 inches wide by 25 1/5 inches long
• Box dimensions: 33 2/3 inches length, 19 2/3 inches height, 3 1/2 inches width
• Lightweight design at 7 3/4 lbs for easier installation
• Block fitting inlet and outlet tubes for secure connections
• Non-hazardous material compliant

Details on the Aluminum Parallel Flow Product Line

The Aluminum Parallel Flow line by CSF focuses on advanced parallel flow technology, which allows refrigerant to pass through multiple flat tubes simultaneously. This design improves heat exchange efficiency compared to traditional tube-and-fin condensers. The 10676 condenser benefits from this technology, providing reliable cooling performance tailored for Audi A6 and A6 Quattro HVAC systems.

Product Description and Specifications

This A/C condenser features a core thickness of 5/8 inch, balancing airflow and heat transfer capacity. The core width measures 16 inches, and the length is 25 1/5 inches, ensuring compatibility with the designated Audi models. The condenser’s box dimensions and weight (7 3/4 lbs) facilitate handling and installation. Both the inlet and outlet tubes use block fittings, which provide secure and leak-resistant connections within the vehicle’s air conditioning system. The unit is constructed from aluminum, contributing to corrosion resistance and longevity.

Common Applications and Issues Addressed

• Replacement for faulty or leaking A/C condensers in Audi A6 and A6 Quattro
• Restores proper cooling performance in HVAC systems
• Resolves issues related to reduced refrigerant flow or overheating
• Addresses corrosion or physical damage to the original condenser
• Improves overall air conditioning efficiency and reliability

Installation Notes and Tips

• Ensure compatibility with Audi A6 or A6 Quattro model year before installation
• Inspect and replace O-rings and seals to prevent leaks
• Handle the condenser carefully to avoid damage to fins and tubes
• Flush the A/C system to remove contaminants before installing the new condenser
• Verify block fitting connections are secure and properly seated

Quality Assurance and Warranty

The CSF Aluminum Parallel Flow A/C Condenser 10676 is manufactured to meet OEM specifications for fit and function. It is constructed from corrosion-resistant aluminum and designed for durability in automotive HVAC applications. While specific warranty details are not provided here, CSF products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or supplier for exact warranty terms.
